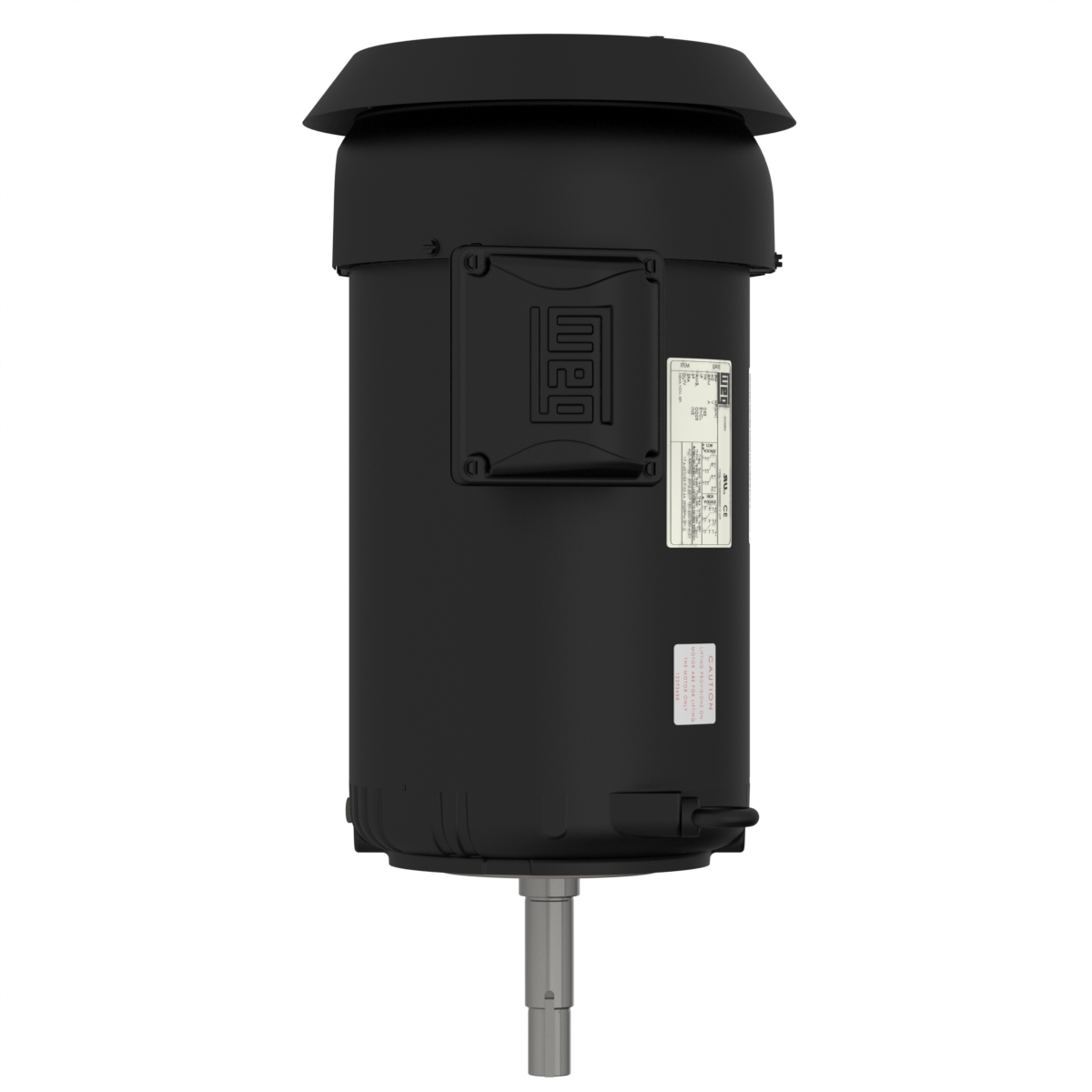

WEG 00518ET3E184JMV-S Electric Motor, 5Hp, 60Hz, 1800 Rpm | BC3HLH

WEG 00518ET3E184JMV-S 13443847 Pump Motor, 5 HP, 1800 RPM, 208-230/460 V, 3 Phase, TEFC, 184JMV Frame, Footless, Close Coupled Pump, Vertical

Item: BC3HLHModel: 00518ET3E184JMV-SCross Ref: 13443847
Check Availability
In Stock

Get it by Monday, Apr 13

€1,430.49 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Close-Coupled Pump Motor
Altitude 1000 M.A.S.L.
Ambient Temp. -20°C to +40°C
Application Closed Coupled
Bearing Cap Yes
Body Design Rolled Steel
Bolt Material Carbon Steel
Breakdown Torque 300%
Composition Steel
Connection Cables Quantity 9
Ct Speed Range 4:1
Drain Rubber, Automatic
Drip Cover With
Duty Cycle S1
Efficiency 89.5%
Efficiency @ 100% 89.5%
Efficiency @ 50% 88.5%
Efficiency @ 75% 89.5%
Enclosure IC411
Enclosure Iec IP55
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange C
Frame 184JMV
Frame Material Rolled Steel
Frame Size 182/4JM
Frequency 60 Hz
Grounding Lugs Single
Hp 5 hp
Impregnation Method Dip and Bake Polyester
Insulation Class Class F
Inverter Rating Inverter Ready
L.r. Amperes 45.4/90.9A
Locked Rotor Time (cold) 21 sec.
Locked Rotor Time (hot) 12 sec.
Locked Rotor Torque 220%
Main Terminal Box Hole 1.118"
Moment Of Inertia (j) 0.308 lbs.-sq. ft.
Mounting W-6
Mounting Arrangement W6
Mounting Orientation Vertical
Nema Frame NEMA 182-4JM
Nema Mount C Face No Base
No Load Amps 3.44/6.88A
Noise Level 56 dBA
Number Of Poles 4
Output Hp 5 hp
Output Kw 3.7 kW
Output Rating 5 hp
Output Rpm 1750/1425 RPM
Overload Protection No
Phase 3
Power Factor 50% 0.6
Power Factor 75% 0.73
Power Factor_100% 0.8
Product Datasheet weg-00518et3e184jmv-s.pdf
Rated Current 6.49/13A
Rated Speed 1750 RPM
Rated Torque 15 lbs.-ft.
Resilient Base Without
Rotation CW/CCW
Rpm 1700-1800 RPM
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Material Carbon Steel
Slip 2.78%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp Code T3 = 200°C
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Voltage 190-220/230/380-415/460V , 208-230/460V

Shipping Info:

Ship weight (kg) 35.55
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Documentation:

Datasheet
