Flex Coupling Hubs

RULAND MANUFACTURING -

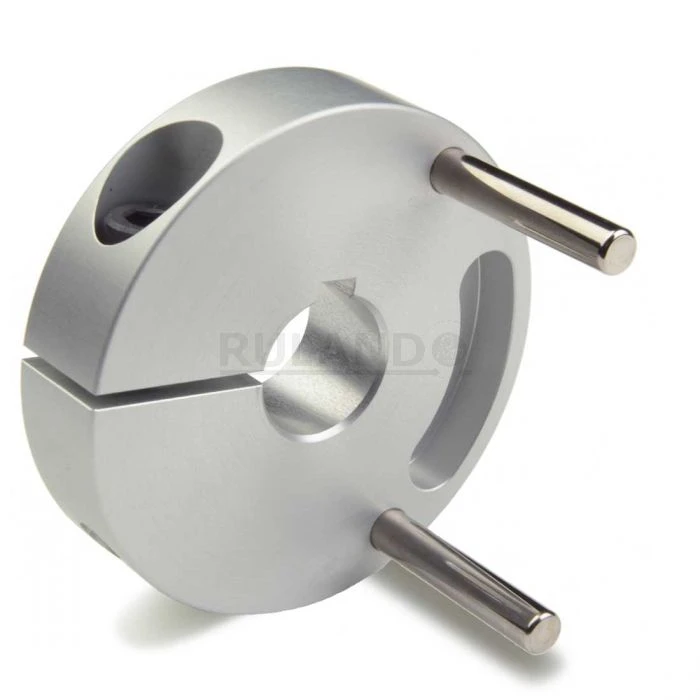

CPTDK Series Keyed Controlflex Coupling Hubs, Double Insert, Inch

A

B

Style	Model	Bore Tolerance	Max. Speed	Rated Torque	Torsional Stiffness	Price

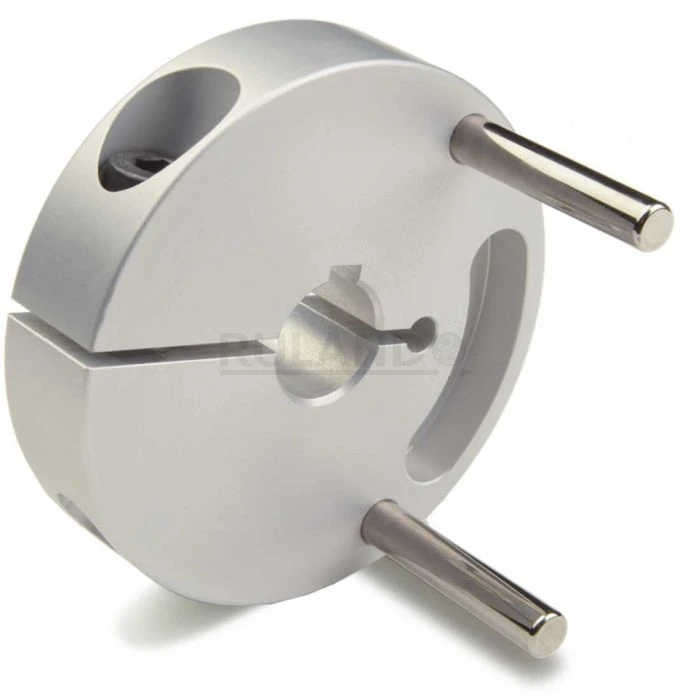

A	CPTDK35-8-A	+0.001" to +0.002"	10000 RPM	14 N-m	14.4 N-m/deg.	€67.91
B	CPTDK35-21-A	+0.001" to +0.003"	10000 RPM	14 N-m	14.4 N-m/deg.	€76.69
B	CPTDK35-20-A	+0.001" to +0.003"	10000 RPM	14 N-m	14.4 N-m/deg.	€67.91

RULAND MANUFACTURING -

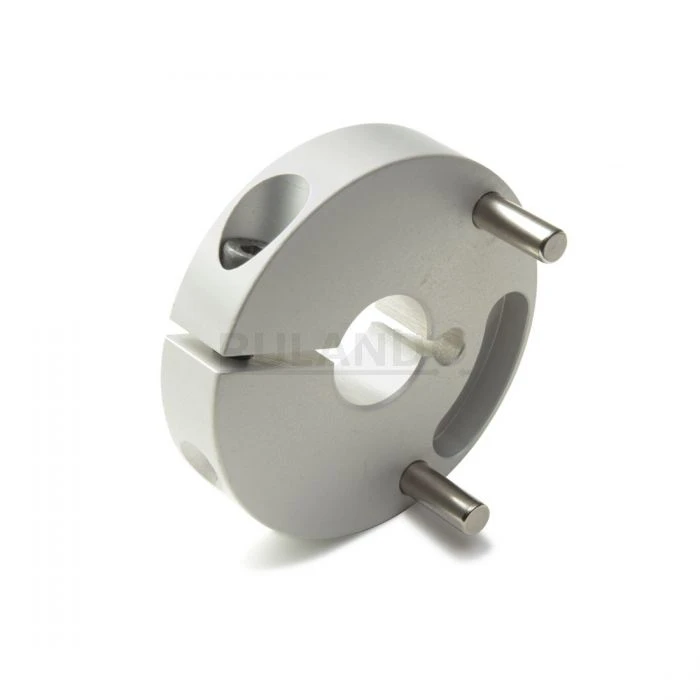

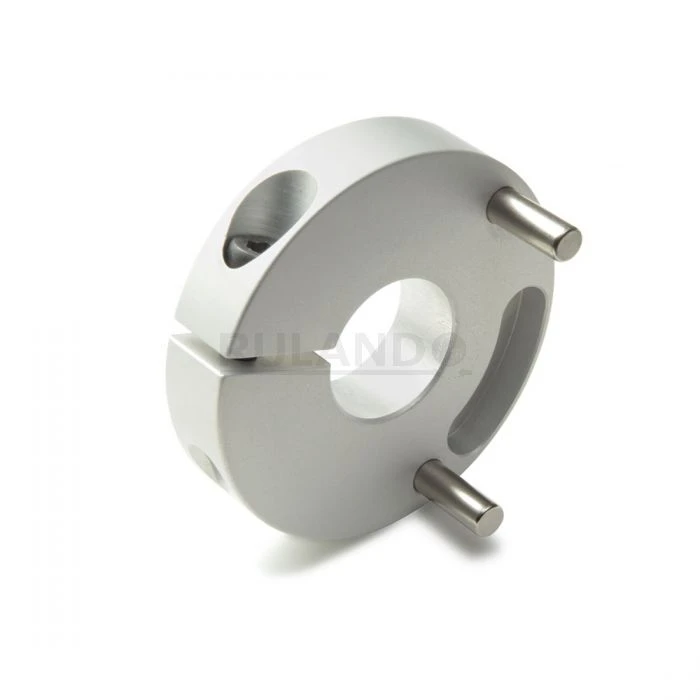

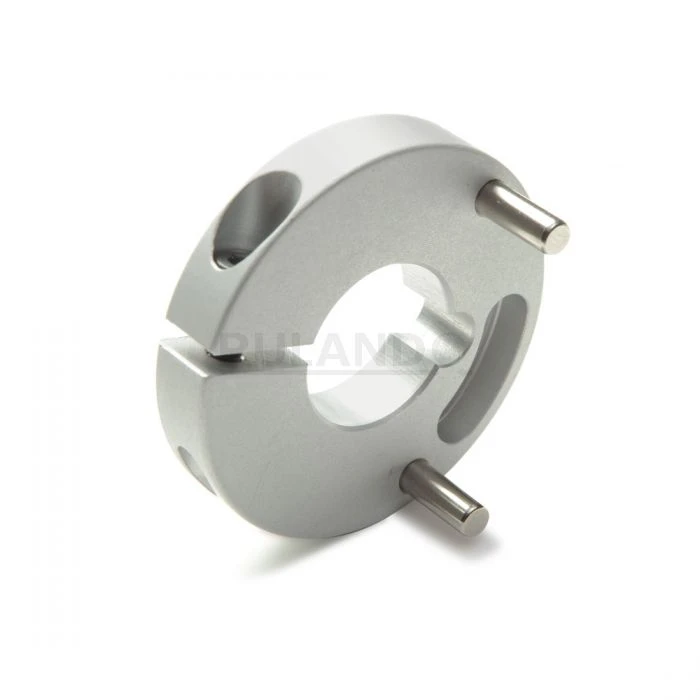

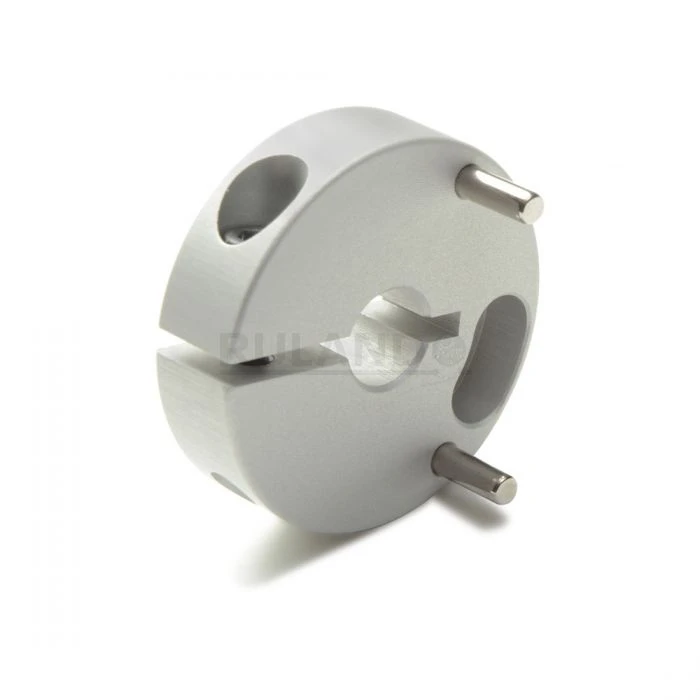

CPTS Series Controlflex Coupling Hubs, Single Insert, Inch

A

B

C

D

E

Style	Model	Max. Speed	Rated Torque	Torsional Stiffness	Bore Tolerance	Price
A	CPTS35-14-A	10000 RPM	7 N-m	7.2 N-m/deg.	+0.001" to +0.003"	€59.99
A	CPTS35-20-A	10000 RPM	7 N-m	7.2 N-m/deg.	+0.001" to +0.003"	€59.02
B	CPTS35-8-A	10000 RPM	7 N-m	7.2 N-m/deg.	+0.001" to +0.002"	€59.02
A	CPTS35-16-A	10000 RPM	7 N-m	7.2 N-m/deg.	+0.001" to +0.003"	€53.29
A	CPTS35-18-A	10000 RPM	7 N-m	7.2 N-m/deg.	+0.001" to +0.003"	€56.03
B	CPTS35-12-A	10000 RPM	7 N-m	7.2 N-m/deg.	+0.001" to +0.003"	€59.02
A	CPTS35-21-A	10000 RPM	7 N-m	7.2 N-m/deg.	+0.001" to +0.003"	€53.29
B	CPTS35-10-A	10000 RPM	7 N-m	7.2 N-m/deg.	+0.001" to +0.002"	€59.99
C	CPTS23-6-A	15000 RPM	2 N-m	1.7 N-m/deg.	+0.001" to +0.002"	€31.36
C	CPTS23-8-A	15000 RPM	2 N-m	1.7 N-m/deg.	+0.001" to +0.002"	€31.36

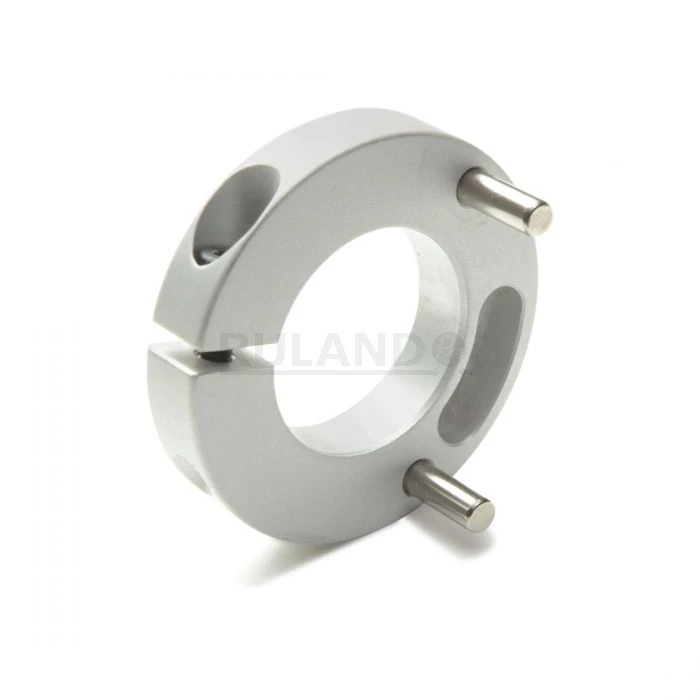

D	CPTS23-12-A	15000 RPM	2 N-m	1.7 N-m/deg.	+0.001" to +0.003"	€31.91
C	CPTS23-4-A	15000 RPM	2 N-m	1.7 N-m/deg.	+0.001" to +0.002"	€31.36
C	CPTS23-10-A	15000 RPM	2 N-m	1.7 N-m/deg.	+0.001" to +0.002"	€31.36
C	CPTS23-5-A	15000 RPM	2 N-m	1.7 N-m/deg.	+0.001" to +0.002"	€30.84
E	CPTS16-5-A	22000 RPM	0.7 N-m	0.65 N-m/deg.	+0.001" to +0.002"	€23.53
E	CPTS16-4-A	22000 RPM	0.7 N-m	0.65 N-m/deg.	+0.001" to +0.002"	€25.36
E	CPTS16-6-A	22000 RPM	0.7 N-m	0.65 N-m/deg.	+0.001" to +0.002"	€26.64

BALDOR / DODGE -

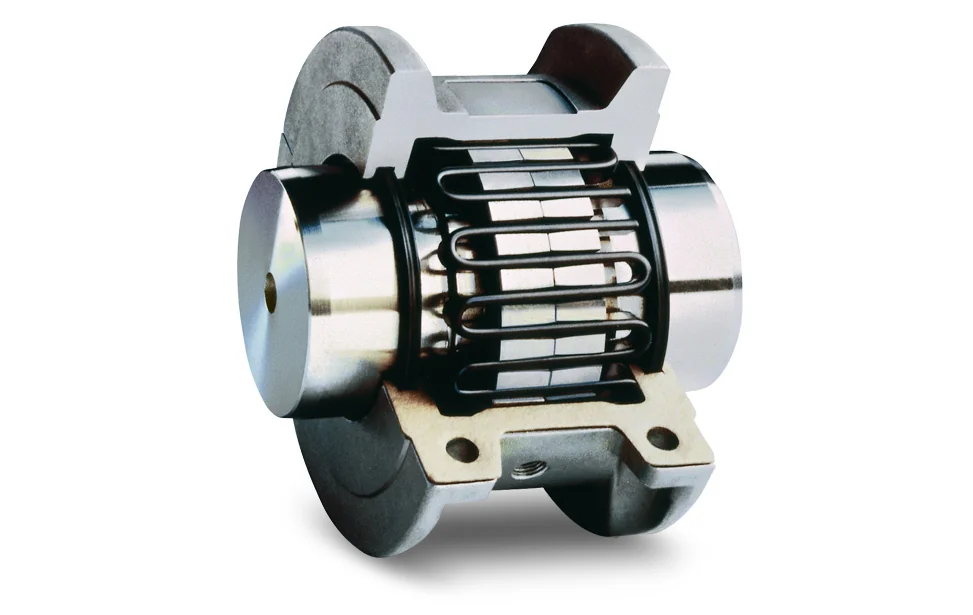

Grid Lign T31 Type Spacer Assemblies

A

B

C

Style	Model	Size	Coupling Type	Speed	Axial Misalignment	Price
A	006497	1020T	Grid	3600 RPM	3/8"	€186.50
B	006499	1020T	Grid	3600 RPM	3/8"	€186.50
B	006498	1020T	Grid	3600 RPM	3/8"	€186.50
C	006506	1030	Metallic	-	3/8"	€303.65
C	006507	1030	Metallic	-	3/8"	€303.65
A	006505	1030T	Grid	3600 RPM	3/8"	€303.65
B	006504	1030T	Grid	3600 RPM	3/8"	€303.65
B	006517	1040T	Grid	3600 RPM	3/8"	€363.65
B	006516	1040T	Grid	3600 RPM	3/8"	€363.65
B	006518	1040T	Grid	3600 RPM	3/8"	€363.65
B	006519	1040T	Grid	3600 RPM	3/8"	€363.65
B	006534	1050T	Grid	3600 RPM	3/8"	€506.09
B	006535	1050T	Grid	3600 RPM	3/8"	€506.09
B	006533	1050T	Grid	3600 RPM	3/8"	€506.09
B	006536	1050T	Grid	3600 RPM	3/8"	€506.09
B	006544	1060T	Grid	3600 RPM	3/8"	€742.27
B	006546	1060T	Grid	3600 RPM	3/8"	€636.23
B	006545	1060T	Grid	3600 RPM	3/8"	€636.23
B	006553	1070T	Grid	3600 RPM	3/8"	€882.41
B	006555	1070T	Grid	3600 RPM	3/8"	€819.38
B	006554	1070T	Grid	3600 RPM	3/8"	€819.38
A	006561	1080T	Grid	3600 RPM	3/8"	€973.63
B	006563	1080T	Grid	3600 RPM	3/8"	€973.63
B	006562	1080T	Grid	3600 RPM	3/8"	€973.63
B	006569	1090T	Grid	3600 RPM	3/8"	€1,243.53

TB WOODS -

Sure-Flex BTS Flanges, Type S
TB Wood's Sure-Flex Type S BTS flanges are ideal for transmitting torque ratings and accommodating shaft misalignments in compressors, pumps, fans / blowers, mixers, conveyors and electric motors. Type S flange sizes 6 to 16 are made of superior strength cast iron, while size 5 flanges are made of sintered carbon steel. These easy to install couplings can be used with Hytrel sleeves for high-torque applications, and are available in set screw lengths up to 16 mm on Raptor Supplies.

A

B

Style	Model	Flange Length	Outside Dia.	Coupling Size	Keyway Size	Torque	Price
A	5S1316	0.594"	11 4/5"	5	1/4" x 1/8 "	1028 N-m	€41.41
B	8S15/16	0.906"	11 4/5"	-	1/4" x 1/8 "	1028 N-m	€82.79

LOVEJOY -

SC Type Spacer Coupling Hubs With Keyway, Standard Length, Inch Bores

A

Style	Model	Outside Dia.	Torsional Stiffness	Max. Speed	Hp Rating @ 100 Rpm	Hp Rating @ 1800 Rpm	Hp Rating @ 3600 Rpm	Hp Rating @ 1200 Rpm	Dimension L	Price
A	68514436601	2 1/2"	1718 lbs.-in./rad	6000 RPM	7/10 hp	12 9/10 hp	25 7/10 hp	8 3/5 hp	1.22"	€83.72
A	68514436602	2 1/2"	1718 lbs.-in./rad	6000 RPM	7/10 hp	12 9/10 hp	25 7/10 hp	8 3/5 hp	1.22"	€83.72
A	68514436603	2 1/2"	1718 lbs.-in./rad	-	7/10 hp	12 9/10 hp	25 7/10 hp	8 3/5 hp	1.22"	€83.72
A	68514436604	2 1/2"	1718 lbs.-in./rad	6000 RPM	7/10 hp	12 9/10 hp	25 7/10 hp	8 3/5 hp	1.22"	€83.72
A	68514436605	2 1/2"	1718 lbs.-in./rad	6000 RPM	7/10 hp	12 9/10 hp	25 7/10 hp	8 3/5 hp	1.22"	€83.72
A	68514436591	2"	916 lbs.-in./rad	7600 RPM	2/5 hp	6 9/10 hp	13 7/10 hp	4 3/5 hp	1.09"	€74.44
A	68514436593	2"	916 lbs.-in./rad	7600 RPM	2/5 hp	6 9/10 hp	13 7/10 hp	4 3/5 hp	1.09"	€74.44
A	68514436594	2"	916 lbs.-in./rad	7600 RPM	2/5 hp	6 9/10 hp	13 7/10 hp	4 3/5 hp	1.09"	€74.44
A	68514436592	2"	916 lbs.-in./rad	7600 RPM	2/5 hp	6 9/10 hp	13 7/10 hp	4 3/5 hp	1.09"	€74.44
A	68514436615	2.81"	2769 lbs.-in./rad	5250 RPM	1 1/5 hp	21 hp	41 hp	14 hp	1.47"	€93.03
A	68514436613	2.81"	2769 lbs.-in./rad	5250 RPM	1 1/5 hp	21 hp	41 hp	14 hp	1.47"	€93.03
A	68514436617	2.81"	2769 lbs.-in./rad	5250 RPM	1 1/5 hp	21 hp	41 hp	14 hp	1.47"	€93.03
A	68514436616	2.81"	2769 lbs.-in./rad	5250 RPM	1 1/5 hp	21 hp	41 hp	14 hp	1.47"	€93.03
A	68514436717	2.81"	2769 lbs.-in./rad	5250 RPM	1 1/5 hp	21 hp	41 hp	14 hp	1.47"	€93.03
A	68514436614	2.81"	2769 lbs.-in./rad	5250 RPM	1 1/5 hp	21 hp	41 hp	14 hp	1.47"	€93.03
A	68514436612	2.81"	2769 lbs.-in./rad	5250 RPM	1 1/5 hp	21 hp	41 hp	14 hp	1.47"	€93.03
A	68514436624	3 1/4"	4335 lbs.-in./rad	4500 RPM	1 4/5 hp	32 hp	65 hp	22 hp	1 18/25"	€116.27
A	68514436625	3 1/4"	4335 lbs.-in./rad	4500 RPM	1 4/5 hp	32 hp	65 hp	22 hp	1 18/25"	€116.27
A	68514436626	3 1/4"	4335 lbs.-in./rad	4500 RPM	1 4/5 hp	32 hp	65 hp	22 hp	1 18/25"	€116.27
A	68514436720	3 1/4"	4335 lbs.-in./rad	4500 RPM	1 4/5 hp	32 hp	65 hp	22 hp	1 18/25"	€116.27
A	68514436627	3 1/4"	4335 lbs.-in./rad	-	1 4/5 hp	32 hp	65 hp	22 hp	1 18/25"	€116.27
A	68514436628	3 1/4"	4335 lbs.-in./rad	4500 RPM	1 4/5 hp	32 hp	65 hp	22 hp	1 18/25"	€116.27
A	68514436629	3 1/4"	4335 lbs.-in./rad	4500 RPM	1 4/5 hp	32 hp	65 hp	22 hp	1 18/25"	€116.27
A	68514436631	3 1/4"	4335 lbs.-in./rad	4500 RPM	1 4/5 hp	32 hp	65 hp	22 hp	1 18/25"	€116.27
A	68514436640	3.63"	6875 lbs.-in./rad	3750 RPM	2 9/10 hp	51 hp	103 hp	34 hp	1.97"	€148.93

LOVEJOY -

Deltaflex Delta Hubs without Keyway, Inch Bores

A

Style	Model	Coupling Size	Length Through Bore	Hp Rating @ 100 Rpm	Max. Bore	Size	Min. Bore	Hp Rating @ 1150 Rpm	Hp Rating @ 1750 Rpm	Price
A	68514439265	40	1.34"	1 1/5 hp	1 3/8"	40	0.438"	13 4/5 hp	21 hp	€248.52
A	68514439267	60	2.03"	6 1/2 hp	2 1/2"	60	3/4"	75 hp	114 hp	€508.35

LOVEJOY -

SX-6 Type Hubs with Keyway, Metric Bores

A

Style	Model	Length Through Bore	Max. Bore	Keyway Size	Overall Length	Dimension Hd	Max. Torque	Nominal Torque	Dimension Fd	Price
A	69790414261	39.88 mm	38 mm	6 mm x 2.8 mm	134 mm	58 mm	480 N-m	240 N-m	90 mm	€293.24
A	69790413906	50.04 mm	46 mm	10 mm x 3.3 mm	189 mm	65 mm	1150 N-m	575 N-m	110 mm	€374.86

LOVEJOY -

SC Type Spacer Coupling Hubs with Keyway, Short Length, Inch Bores

A

Style	Model	Outside Dia.	Max. Speed	Torsional Stiffness	Hp Rating @ 100 Rpm	Max. Bore	Hp Rating @ 1800 Rpm	Hp Rating @ 3600 Rpm	Keyway Size	Price
A	68514436682	3.63"	3750 RPM	6875 lbs.-in./rad	2 9/10 hp	1 1/2"	51 hp	103 hp	1/4" x 1/8"	€139.53
A	68514436726	3.63"	3750 RPM	6875 lbs.-in./rad	2 9/10 hp	1 1/2"	51 hp	103 hp	5/16" x 5/32"	€120.60
A	68514436686	5 1/4"	3600 RPM	17300 lbs.-in./rad	7 1/5 hp	1 7/8"	129 hp	259 hp	1/4" x 1/8"	€305.53
A	68514436687	5 1/4"	3600 RPM	17300 lbs.-in./rad	7 1/5 hp	1 7/8"	129 hp	259 hp	3/8" x 3/16"	€305.53

LOVEJOY -

SX-6 Type Hubs, Rough Stock Bore

A

Style	Model	Length Through Bore	Max. Angular Misalignment	Max. Bore	Dimension Hd	Max. Torque	Nominal Torque	Dimension Fd	Distance Between Shaft Ends (dimension Bse)	Price
A	69790493804	1.57"	1.5°	1 1/2"	2 7/25"	4200 lbs.-in.	2100 lbs.-in.	3.54"	2 9/25"	€215.82
A	69790491430	2 9/25"	1.5°	2.38"	3.31"	19200 lbs.-in.	9700 lbs.-in.	5 1/5"	4 1/4"	€400.52
A	69790491454	3.54"	1°	3 1/2"	4 23/25"	81400 lbs.-in.	40700 lbs.-in.	7.95"	6 1/4"	€876.85
A	69790491459	3.94"	1°	3.94"	5.51"	123900 lbs.-in.	62000 lbs.-in.	8.98"	6 22/25"	€948.43

MARTIN SPROCKET -

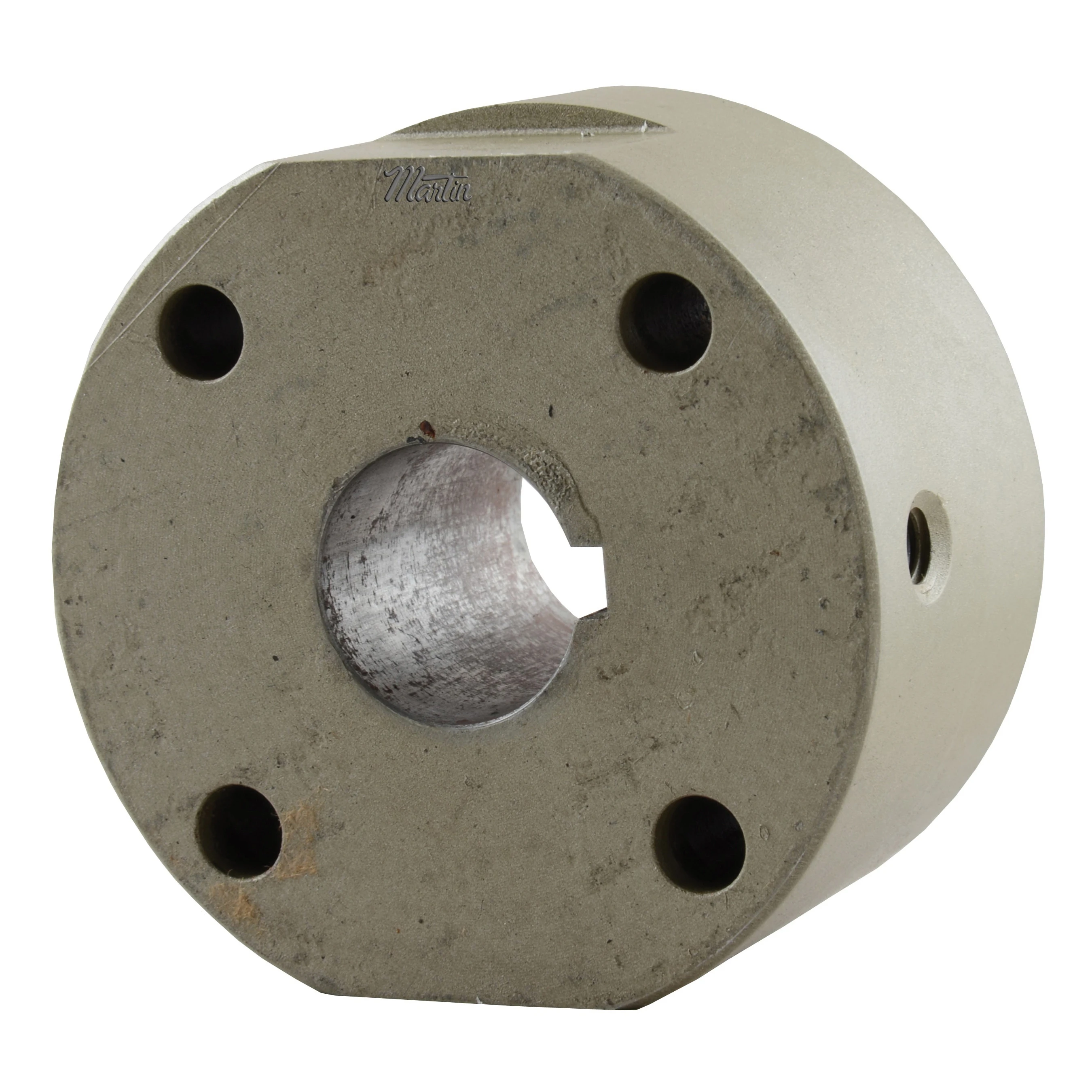

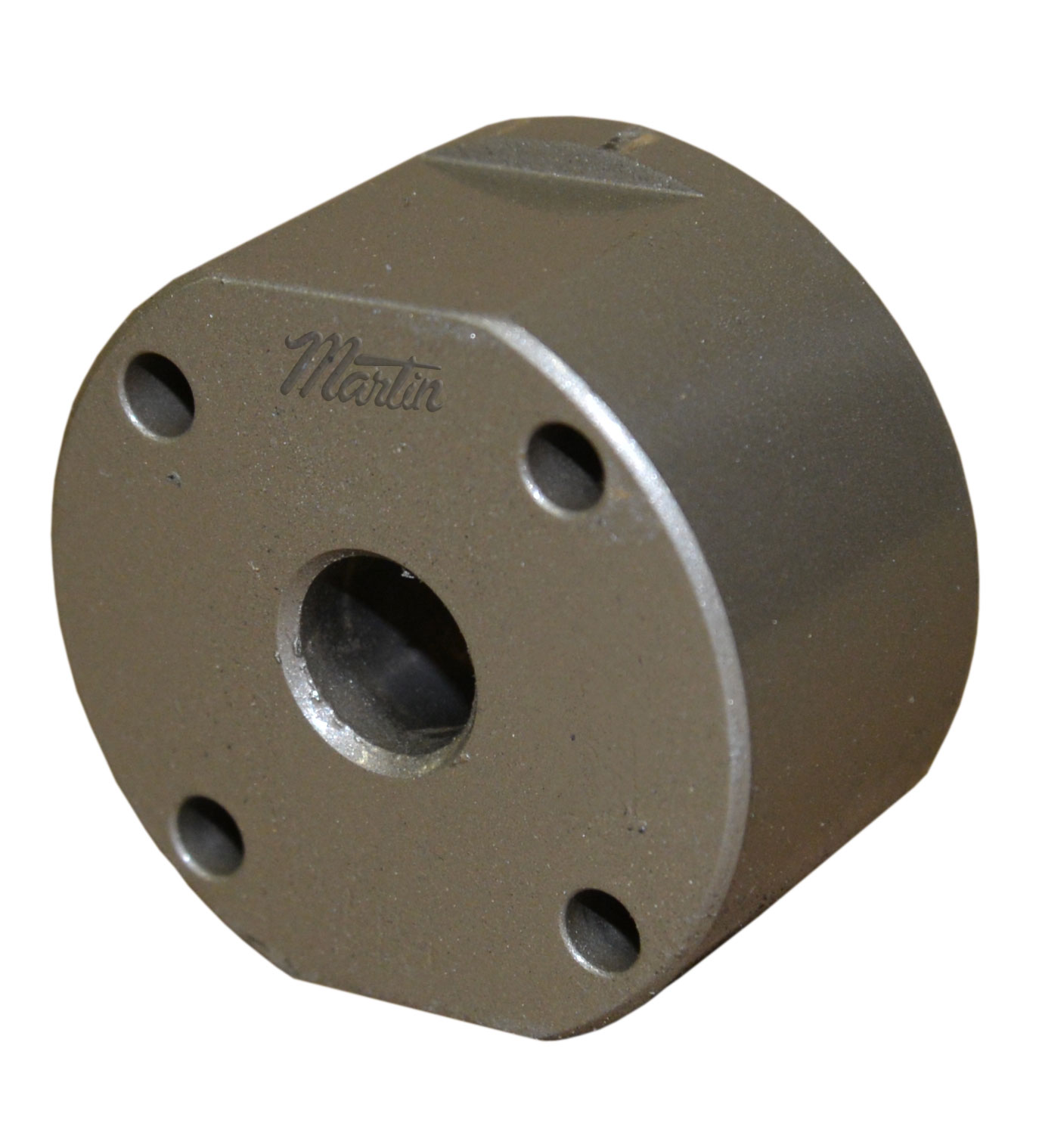

Quadra Flex Series SC Type Spacer Hubs

A

B

C

D

Style	Model	Coupling Size	Type	Length Through Bore	Outside Dia.	Keyway Size	Set Screw Size	Material	Price
A	4H 7/8	04	Bored to Size Type SC	1 5/8"	2"	3/16" x 3/32"	-	Steel	€35.46
B	4H 5/8	04	Bored to Size Type SC	1 21/32"	2"	3/16" x 3/32"	1/4"-20 x 3/8"	Steel	€35.46
B	4H 1	04	Bored to Size Type SC	1 21/32"	2"	1/4" x 1/8"	5/16"-18 x 5/16"	Steel	€35.46
B	4H 1 1/8	04	Bored to Size Type SC	1 21/32"	2"	1/4" x 1/8"	5/16"-18 x 5/16"	Steel	€35.46
A	5H 7/8	05	Bored to Size Type SC	1.094"	2"	3/16" x 3/32"	-	Steel	€75.61
C	5H PB	05	Bored to Size Type SC	1.094"	2"	-	-	Steel	€64.81
B	5H 1	05	Bored to Size Type SC	1 3/32"	2"	1/4" x 1/8"	5/16"-18 x 5/16"	Steel	€75.61
A	5H 5/8	05	Bored to Size Type SC	1.094"	2"	3/16" x 3/32"	-	Steel	€75.61
A	5H 1 1/8	05	Bored to Size Type SC	1.094"	2"	1/4" x 1/8"	-	Steel	€75.61
A	5H 3/4	05	Bored to Size Type SC	1.094"	2"	3/16" x 3/32"	-	Steel	€75.61

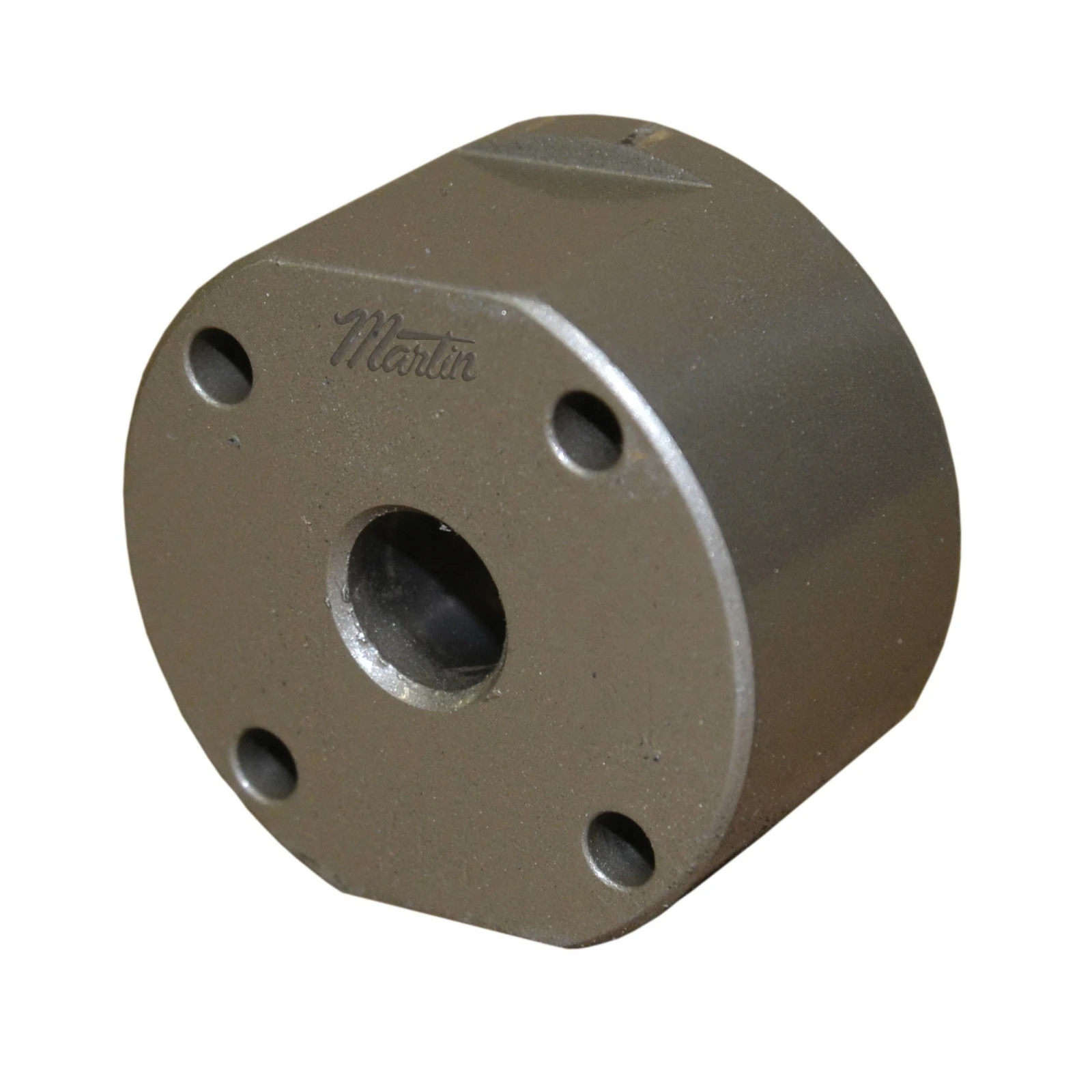

D	6H PB	06	Reborable Type SC	1 7/32"	2 1/2"	-	-	Steel	€85.07
A	6H 1	06	Bored to Size Type SC	1.219"	2 1/2"	1/4" x 1/8"	-	Steel	€72.92
A	6H 1 1/8	06	Bored to Size Type SC	1.219"	2 1/2"	1/4" x 1/8"	-	Steel	€85.07
A	6H 7/8	06	Bored to Size Type SC	1.219"	2 1/2"	3/16" x 3/32"	-	Steel	€85.07
A	6H 1 1/4	06	Bored to Size Type SC	1.219"	2 1/2"	1/4" x 1/8"	-	Steel	€72.92
A	6H 3/4	06	Bored to Size Type SC	1 7/32"	2 1/2"	3/16" x 3/32"	1/4"-20 x 1/4"	Steel	€72.92
A	6H 1 3/8	06	Bored to Size Type SC	1.219"	2 1/2"	5/16" x 5/32"	-	Steel	€85.07
A	7H 1 1/2	07	Bored to Size Type SC	1 15/32"	2.813"	3/8" x 3/16"	3/8"-16 x 3/8"	Steel	€81.02
A	7H 1 3/8	07	Bored to Size Type SC	1.469"	2.813"	5/16" x 5/32"	-	Steel	€94.53
A	7H 1 1/8	07	Bored to Size Type SC	1.469"	2.813"	1/4" x 1/8"	-	Steel	€94.53
A	7H 7/8	07	Bored to Size Type SC	1.469"	2.813"	3/16" x 3/32"	-	Steel	€81.02
B	7H 1	07	Bored to Size Type SC	1 15/32"	2.813"	1/4" x 1/8"	5/16"-18 x 5/16"	Steel	€94.53
A	7H 1 5/8	07	Bored to Size Type SC	1.469"	2.813"	3/8" x 3/16"	-	Steel	€94.53
C	7H PB	07	Reborable Type SC	1 15/32"	2.813"	-	-	Steel	€81.02
A	8H 1 1/8	08	Bored to Size Type SC	1.719"	3 1/4"	1/4" x 1/8"	-	Steel	€118.14

TB WOODS -

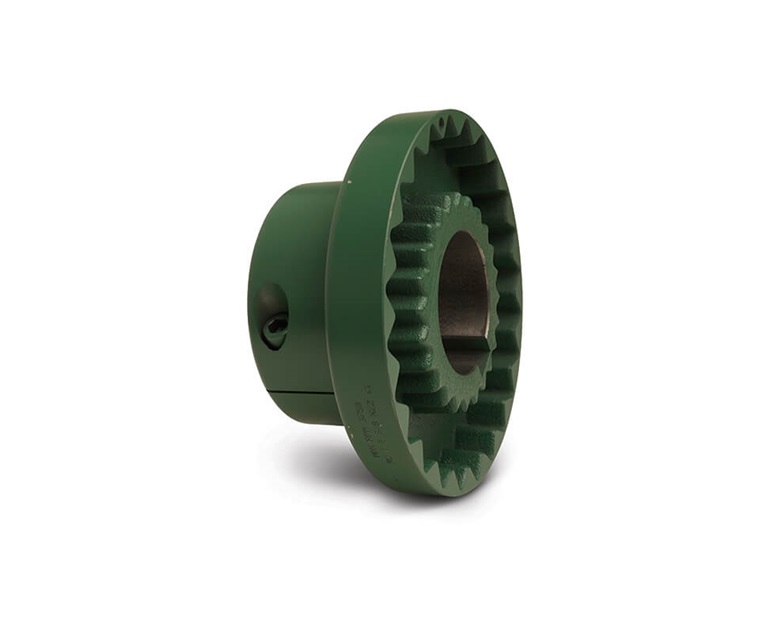

Sure-Flex Type C Clamp Hubs

A

Style	Model	Bore Dia.	Max. Parallel Misalignment	Coupling Size	Length Through Bore	Outside Dia.	Max. Speed	Bore Tolerance	Set Screw Distance	Price
A	6C178	-	-	6	1.938"	4"	6000 RPM	+0.0005" to +0.0015"	3/8"	€232.00
A	8C214	-	-	8	-	-	4500 RPM	+0.0005" to +0.002"	0.562"	€318.58
A	6C118	1 1/8"	0.015"	6	1.938"	4"	6000 RPM	+0.0005" to +0.0015"	3/8"	€232.00
A	9C134	1 3/4"	1/40"	-	3"	1 1/2"	3750 RPM	+0.0005" to +0.0015"	1/2"	€386.86
A	8C134	1 3/4"	0.02"	8	2 1/2"	5.45"	4500 RPM	+0.0005" to +0.0015"	0.562"	€318.58
A	8C138	1 3/8"	1/50"	8	2 1/2"	5.45"	4500 RPM	+0.0005" to +0.0015"	0.562"	€318.58
A	8CMPB	1 3/8"	1/50"	-	2 1/2"	5.45"	4500 RPM	+0.0005" to +0.0015"	0.562"	€318.58
A	7C138	1 3/8"	0.02"	7	2.312"	4 5/8"	5250 RPM	+0.0005" to +0.0015"	0.438"	€273.07
A	10CMPB	1 5/8"	1/40"	10	3 1/2"	1 1/2"	3600 RPM	+0.0005" to +0.0015"	5/8"	€450.38
A	10C158	1 5/8"	0.025"	10	3 1/2"	1 1/2"	3600 RPM	+0.0005" to +0.0015"	5/8"	€425.11
A	9CMPB	1 5/8"	0.025"	9	3"	1 1/2"	3750 RPM	+0.0005" to +0.0015"	1/2"	€386.86
A	8C158	1 5/8"	0.02"	8	2 1/2"	5.45"	4500 RPM	+0.0005" to +0.0015"	0.562"	€318.58
A	9C158	1 5/8"	0.025"	9	3"	1 1/2"	3750 RPM	+0.0005" to +0.0015"	1/2"	€386.86
A	7C178	1 7/8"	1/50"	7	2.312"	4 5/8"	-	+0.0005" to +0.0015"	0.438"	€273.07
A	9C178	1 7/8"	1/40"	-	3"	1 1/2"	3750 RPM	+0.0005" to +0.0015"	1/2"	€386.86
A	10C178	1 7/8"	1/40"	10	3 1/2"	1 1/2"	-	+0.0005" to +0.0015"	5/8"	€294.90	RFQ
A	8C178	1 7/8"	1/50"	8	2 1/2"	5.45"	4500 RPM	+0.0005" to +0.0015"	0.562"	€318.58
A	11C212	2 1/2"	0.032"	11	4"	8 5/8"	3600 RPM	+0.0005" to +0.002"	5/8"	€463.44
A	10C212	2 1/2"	0.025"	10	3 1/2"	1 1/2"	3600 RPM	+0.0005" to +0.002"	5/8"	€302.27	RFQ
A	9C212	2 1/2"	0.025"	9	3"	1 1/2"	3750 RPM	+0.0005" to +0.002"	1/2"	€386.86
A	10C214	2 1/4"	1/40"	10	3 1/2"	1 1/2"	3600 RPM	+0.0005" to +0.002"	5/8"	€425.11
A	9C214	2 1/4"	1/40"	9	3"	1 1/2"	3750 RPM	+0.0005" to +0.002"	1/2"	€386.86
A	12C218	2 1/8"	0.032"	12	4 3/8"	10"	-	+0.0005" to +0.002"	1 1/4"	€573.20
A	9C218	2 1/8"	0.025"	9	-	1 1/2"	3750 RPM	+0.0005" to +0.002"	1/2"	€386.86
A	11C218	2 1/8"	0.032"	11	4"	8 5/8"	3600 RPM	+0.0005" to +0.002"	5/8"	€463.44

TB WOODS -

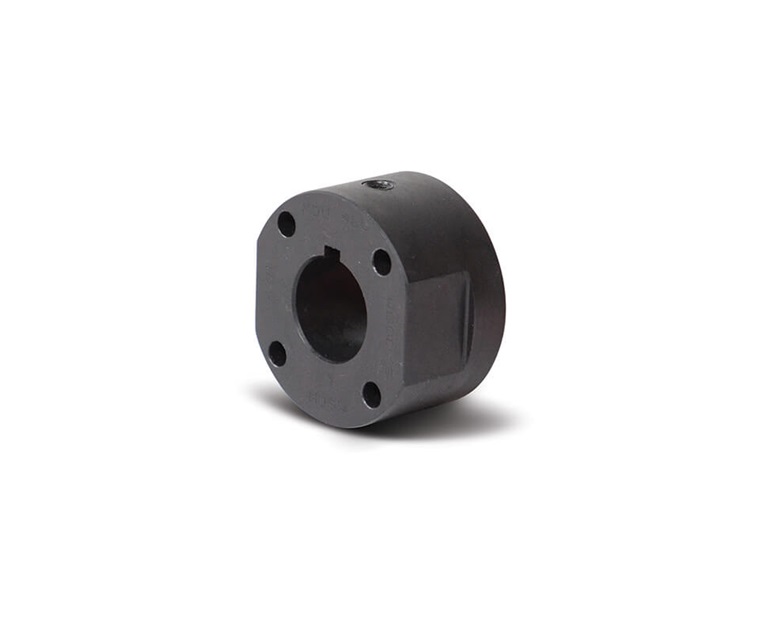

Sure-Flex Type SC Spacer Hubs

A

B

C

Style	Model	Coupling Size	Length Through Bore	Max. Parallel Misalignment	Bore Dia.	Max. Speed	Outside Dia.	Bore Tolerance	Setscrew Length	Price
A	4JSC3558	4	1 1/16"	0.01"	5/8"	7600 RPM	1.063"	+0.0005" to +0.0015"	1/4"	€111.71
A	4JSC35118	4	1 1/16"	0.01"	1 1/8"	7600 RPM	1.063"	+0.0005" to +0.0015"	0.188"	€114.31
A	4JSC351	4	1 1/16"	0.01"	1"	7600 RPM	1.063"	+0.0005" to +0.0015"	1/4"	€111.71
A	4JSC3578	4	1 1/16"	0.01"	7/8"	7600 RPM	-	+0.0005" to +0.0015"	1/4"	€110.57
B	5SCH34	5	1.094"	0.015"	3/4"	7600 RPM	-	+0.0005" to +0.0015"	1/2"	€61.61
B	5SCH58	5	1.094"	0.015"	5/8"	7600 RPM	-	+0.0005" to +0.0015"	1/2"	€61.61
B	5SCH118	5	1 3/32"	0.015"	1 1/8"	7600 RPM	1.094"	+0.0005" to +0.0015"	3/8"	€118.56
B	5SCH78	5	1 3/32"	0.015"	7/8"	7600 RPM	1.094"	+0.0005" to +0.0015"	1/2"	€114.14
B	5SCH1	5	1 3/32"	0.015"	1"	7600 RPM	1.094"	+0.0005" to +0.0015"	3/8"	€114.35
C	5SCHMPB	5	1 3/32"	0.015"	1/2"	7600 RPM	1.094"	+0.0005" to +0.0015"	3/8"	€111.61
C	6SCH118	6	1 7/32"	0.015"	1 1/8"	6000 RPM	1.219"	+0.0005" to +0.0015"	5/8"	€129.76
C	6SCH138	6	1 7/32"	0.015"	1 3/8"	6000 RPM	1.219"	+0.0005" to +0.0015"	3/8"	€133.61
C	6SCH78	6	1 7/32"	0.015"	7/8"	6000 RPM	1.219"	+0.0005" to +0.0015"	1 1/4"	€132.55
C	6SCHMPB	6	1 7/32"	0.015"	5/8"	6000 RPM	1.219"	+0.0005" to +0.0015"	3/8"	€129.76
C	6SCH1	6	1 7/32"	0.015"	1"	6000 RPM	1.219"	+0.0005" to +0.0015"	5/8"	€125.57
C	6SCH114	6	1.219"	0.015"	1 1/4"	6000 RPM	-	+0.0005" to +0.0015"	1/2"	€69.33
C	6SCH34	6	-	-	-	6000 RPM	-	+0.0005" to +0.0015"	1 1/4"	€69.33
C	6SCHS78	6	0.969"	0.015"	7/8"	6000 RPM	-	+0.0005" to +0.0015"	3/8"	€69.33
C	7SCH112	7	-	-	-	5250 RPM	-	+0.0005" to +0.0015"	-	€77.02
C	7SCH158	7	1 15/32"	1/50"	1 5/8"	5250 RPM	1.469"	+0.0005" to +0.0015"	3/8"	€141.41
C	7SCH138	7	1 15/32"	0.02"	1 3/8"	5250 RPM	1.469"	+0.0005" to +0.0015"	5/8"	€141.41
C	7SCH118	7	1 15/32"	1/50"	1 1/8"	5250 RPM	1.469"	+0.0005" to +0.0015"	1 1/4"	€141.41
C	7SCH78	7	1.469"	0.02"	7/8"	5250 RPM	1.469"	+0.0005" to +0.0015"	1 1/4"	€141.41
C	7SCHS78	7	1.094"	0.02"	7/8"	5250 RPM	-	+0.0005" to +0.0015"	1 1/4"	€77.02
C	7SCHMPB	7	1 15/32"	1/50"	-	5250 RPM	1.469"	+0.0005" to +0.0015"	3/8"	€146.66

TB WOODS -

Taper Grid Couplings

A

Style	Model	MPN	Price
A	1150T10CK	1150T10CK	€1,864.72
A	1160T10CK	1160T10CK	€3,034.19
A	1170T10CK	1170T10CK	€3,419.05
A	1180T10CK	1180T10CK	€4,099.44
A	1190T10CK	1190T10CK	€5,307.18
A	1200T10CK	1200T10CK	€11,900.72

TB WOODS -

Clamp Type Flexible Couplings

A

Style	Model	MPN	Price
A	536.26.3132	536.26.3132	€84.44	RFQ
A	536.26.3135	536.26.3135	€82.38	RFQ
A	536.41.3246	536.41.3246	€149.99	RFQ
A	540.34.3536	540.34.3536	€94.95	RFQ
A	554.90.5152	554.90.5152	€828.32	RFQ

TSUBAKI -

Taper Lock Series Weld-On Hubs

A

B

Style	Model	MPN	Price
A	35TL1	35TL1	€77.62
A	40TL1	40TL1	€77.96
A	40TL2	40TL2	€85.51
A	40TL3	40TL3	€157.38
A	50TL1	50TL1	€85.51
A	50TL2	50TL2	€157.38
A	60TL1	60TL1	€85.51
A	60TL2	60TL2	€157.38
A	80TL1	80TL1	€85.51
A	80TL2	80TL2	€157.38
A	80TL3	80TL3	€201.22
A	100TL1	100TL1	€157.38
A	100TL2	100TL2	€201.22
A	120TL1	120TL1	€157.38
A	120TL2	120TL2	€201.22
A	120TL3	120TL3	€422.49
A	140TL1	140TL1	€606.83
A	160TL1	160TL1	€201.22
A	160TL2	160TL2	€422.49
A	160TL3	160TL3	€859.52
B	W12	W12	€92.69
B	W16	W16	€100.24
B	W25	W25	€146.97
B	W30	W30	€243.03
B	W35	W35	€328.60

TSUBAKI -

QD Series Weld-On Hubs

A

B

C

Style	Model	MPN	Price
A	35SHW	35SHW	€97.02
A	40SDSW	40SDSW	€129.35
A	40SKW	40SKW	€160.95
A	50SDSW	50SDSW	€129.35
A	50SFW	50SFW	€235.79
A	50SKW	50SKW	€160.95
A	60EW	60EW	€339.52
A	60SDSW	60SDSW	€129.35
A	60SFW	60SFW	€235.79
A	60SKW	60SKW	€160.95
B	80EW	80EW	€339.52
B	80FW	80FW	€452.08
A	80SFW	80SFW	€235.79
A	100EWB	100EWB	€339.52
B	100EWC	100EWC	€403.64
B	100FW	100FW	€452.08
A	120EW	120EW	€339.52
B	120FW	120FW	€452.08
B	120JW	120JW	€581.26
C	140FWB	140FWB	€452.08
A	160FW	160FW	€452.08
B	160JW	160JW	€581.26
A	160MW	160MW	€1,533.90

TSUBAKI -

Split Taper Weld-On Hubs

A

B

Style	Model	MPN	Price
A	H1W	H1W	€39.23
A	P1W	P1W	€62.80
A	Q1W	Q1W	€111.23
B	Q2W	Q2W	€155.71
B	R1W	R1W	€181.62
B	R2W	R2W	€364.86
B	S1W	S1W	€253.00

TB WOODS -

Grid Hub Couplings

A

Style	Model	MPN	Price
A	1020T31-5	1020T31-5	€177.95
A	1020T31-35	1020T31-35	€177.95
A	1020T31RB	1020T31RB	€151.78
A	1020T3178	1020T3178	€191.04
A	1020T31118	1020T31118	€191.04
A	1030T31-5	1030T31-5	€280.00
A	1030T31-35	1030T31-35	€280.00
A	1030T31-438	1030T31-438	€280.00
A	1030T31RB	1030T31RB	€170.10
A	1030T3178	1030T3178	€209.35
A	1030T31118	1030T31118	€209.35
A	1040T31-35	1040T31-35	€335.75
A	1040T31-438	1040T31-438	€337.57
A	1040T31RB	1040T31RB	€185.81
A	1040T31118	1040T31118	€234.23
A	1040T31178	1040T31178	€234.23
A	1040T31218	1040T31218	€235.53
A	1050T31-5	1050T31-5	€465.86
A	1050T31-438	1050T31-438	€468.44
A	1050T31-725	1050T31-725	€468.44
A	1050T31RB	1050T31RB	€198.90
A	1050T31178	1050T31178	€259.06
A	1050T31218	1050T31218	€259.06
A	1050T31238	1050T31238	€259.06
A	1060T31-5	1060T31-5	€666.15

TB WOODS -

Dura-Flex QD Bushed Hubs
TB Wood's Dura-Flex QD coupling hubs are designed using finite element analysis for joining shaft ends in torque transfer applications. These Sure-Grip bushed couplings absorb shock and accommodate angular, axial, torsional & parallel misalignments. These quick disconnect bushing bores allow easy removal and reduce maintenance efforts. They do not require any additional lubrication for running smoothly. Choose from a wide range of Dura-Flex Sure-Grip hubs, available in W4 to W80 sizes on Raptor Supplies.

A

Style	Model	Bushing Size	Max. Speed	Max. Parallel Misalignment	Rated Torque	Bushing	Max. Angular Misalignment	Hp Rating @ 100 Rpm	Hp Rating @ 1800 Rpm	Price
A	WE40H	E	5000 RPM	3/32"	-	E	3°	8 9/10 hp	157 hp	€526.91
A	WE50H	E	4200 RPM	3/32"	7650 lbs.-in.	E	3°	12 hp	218 hp	€671.30
A	WE60H	F	3800 RPM	1/8"	-	F	2°	20 hp	357 hp	€823.16
A	WE70H	JA	3600 RPM	1/8"	22125 lbs.-in.	JA	2°	35 hp	615 hp	€1,332.30
A	WE4H	JA	7500 RPM	1/16"	550 lbs.	JA	4°	22/25 hp	16 hp	€137.15
A	WE80H	M	2000 RPM	1/8"	39500 lbs.-in.	M	2°	63 hp	1097 hp	€1,988.91
A	WE10H	SDS	7500 RPM	1/16"	1450 lbs.-in.	SDS	4°	2 3/10 hp	41 hp	€182.02
A	WE30H	SF	5800 RPM	3/32"	3650 lbs.-in.	SF	3°	5 4/5 hp	104 hp	€403.90
A	WE5H	SH	7500 RPM	1/16"	925 lbs.	SH	4°	1 1/2 hp	26 hp	€158.58
A	WE20H	SK	6600 RPM	3/32"	2300 lbs.-in.	SK	3°	3 7/10 hp	66 hp	€289.22

BALDOR / DODGE -

Output Hubs, Tapered Bore

A

Style	Model	MPN	Price
A	243556	243556	€1,066.84
A	244588	244588	-	RFQ
A	245590	245590	-	RFQ
A	272220	272220	-	RFQ
A	390935	390935	-	RFQ

TB WOODS -

G-Flex Coupling Packets

A

Style	Model	MPN	Price
A	1150T10PKT	1150T10PKT	€358.12
A	1160T10PKT	1160T10PKT	€523.56
A	1170T10PKT	1170T10PKT	€673.99
A	1180T10PKT	1180T10PKT	€886.09
A	1190T10PKT	1190T10PKT	€1,187.67
A	1200T10PKT	1200T10PKT	€1,493.38

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Flex Coupling Hubs

CPTDK Series Keyed Controlflex Coupling Hubs, Double Insert, Inch

CPTS Series Controlflex Coupling Hubs, Single Insert, Inch

Grid Lign T31 Type Spacer Assemblies

SC Type Spacer Coupling Hubs With Keyway, Standard Length, Inch Bores

Deltaflex Delta Hubs without Keyway, Inch Bores

SX-6 Type Hubs with Keyway, Metric Bores

SC Type Spacer Coupling Hubs with Keyway, Short Length, Inch Bores

SX-6 Type Hubs, Rough Stock Bore

Quadra Flex Series SC Type Spacer Hubs

Sure-Flex Type C Clamp Hubs

Sure-Flex Type SC Spacer Hubs

Taper Grid Couplings

Clamp Type Flexible Couplings

Taper Lock Series Weld-On Hubs

QD Series Weld-On Hubs

Split Taper Weld-On Hubs

Grid Hub Couplings

Output Hubs, Tapered Bore

G-Flex Coupling Packets

Popular Search Queries

Explore More

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Flex Coupling Hubs

Popular Search Queries

Explore More
