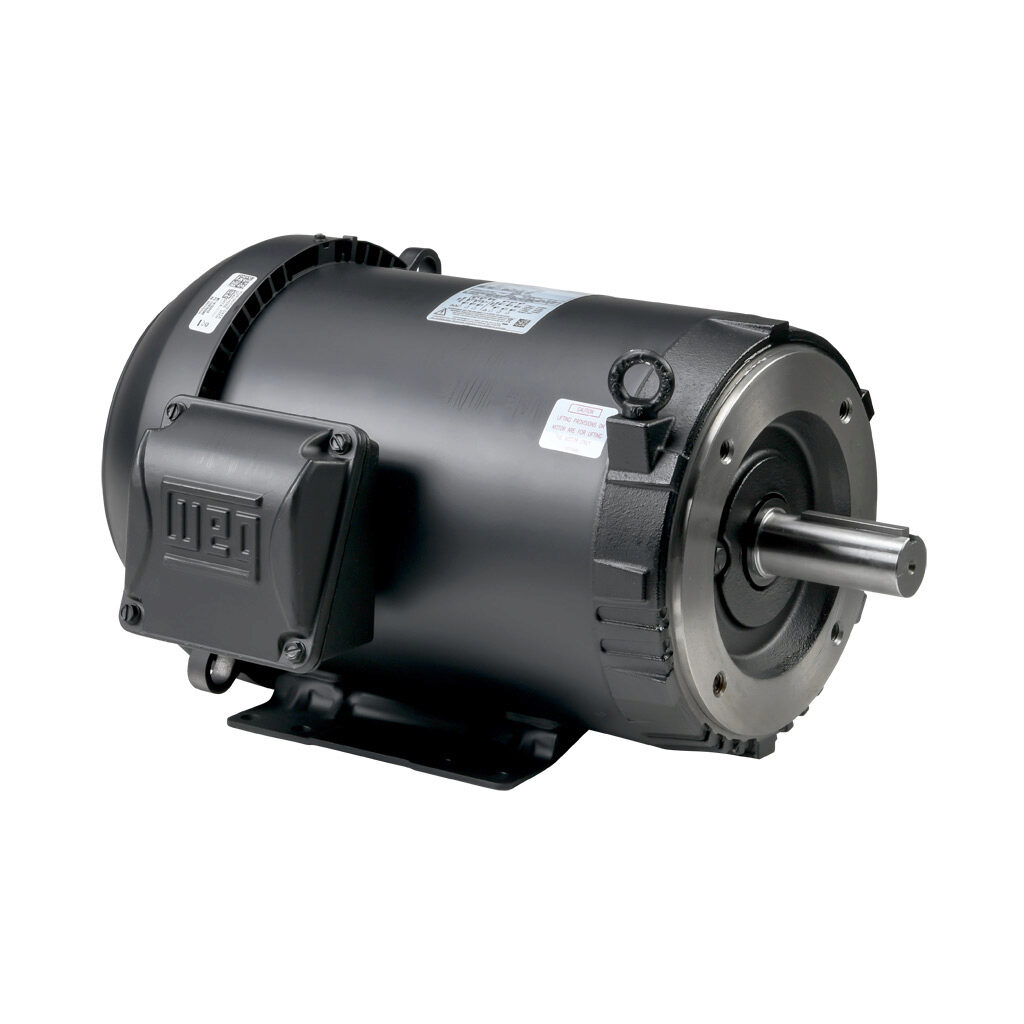

WEG 01018ET3E215TC-S 14122310 Electric Motor, 10Hp, 60Hz, 1800 Rpm
Get it by Wednesday, Dec 17
€1,884.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 300% |
| Cold Locked Rotor Time | 27 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 91.7% |
| Efficiency @ 100% | 91.7% |
| Efficiency At 1 % | 84% |
| Efficiency At 50 % | 67% |
| Efficiency At 75 % | 78% |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange Type | C |
| Frame | 213/5TC |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 15 sec. |
| Hp | 10 hp |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Ip Rating | IP55 |
| L. R. Amps | 171/85.4A |
| Locked Rotor Torque | 250% |
| Lrc | 7.0X(Code H) |
| Main Terminal Box Hole Size | 1.377" |
| Moment Of Inertia | 1.07 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1760 RPM |
| Motor Type | Induction |
| Mounting | Foot Mounted |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Rpm | 1760 RPM |
| No Load Amps | 11.1/5.54A |
| No. Of Poles | 4 |
| Noise Level | 60 dBA |
| Number Of Phases | 3 |
| Output | 10 hp |
| Output Rating | 10 hp |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 91.7 |
| Power Factor At 50 % | 91 |
| Power Factor At 75 % | 91 |
| Rated Current | 24.4/12.2A |
| Rated Torque | 29.8 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Diameter | 1 3/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Ships Factory Direct | No |
| Slip | 2.22% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460/190-220/380-415V AC |
Shipping Info:
| Ship weight (kg) | 64.35 |
| Ship height (cm) | 48.26 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 45.72 |
| Country of Origin | BR |
Product Variants
| Model | Voltage | Frequency | Service Factor | Full Load Amps | Hp | Nameplate Rpm | Motor Type | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118ET3H143TC-W22 | 575V AC | 60 Hz | 1.25 | 1.18A | 1 hp | 1760 RPM | Three Phase | Rigid Base | €772.12 | |
| 00156ET3H143TC-W22 | 575V AC | 60 Hz | 1.25 | 1.57A | 1 1/2 hp | 3480 RPM | Three Phase | Rigid Base | €840.81 | |
| 00158ET3H145TC-W22 | 575V AC | 60 Hz | 1.25 | 1.62A | 1 1/2 hp | 1755 RPM | Three Phase | Rigid Base | €768.36 | |
| 00236ET3H145TC-W22 | 575V AC | 60 Hz | 1.25 | 2.05A | 2 hp | 3475 RPM | Three Phase | Rigid Base | €853.67 | |
| 00218ET3H145TC-W22 | 575V AC | 60 Hz | 1.25 | 2.21A | 2 hp | 1755 RPM | Three Phase | Rigid Base | €841.96 | |
| 00336ET3H182TC-W22 | 575V | 60 Hz | 1 | 2.9A | 3 hp | 3515 RPM | Three Phase | Rigid Base | €1,055.20 | |
| 00318ET3H182TC-W22 | 575V AC | 60 Hz | 1.25 | 3.1A | 3 hp | 1760 RPM | Three Phase | Rigid Base | €954.68 |
