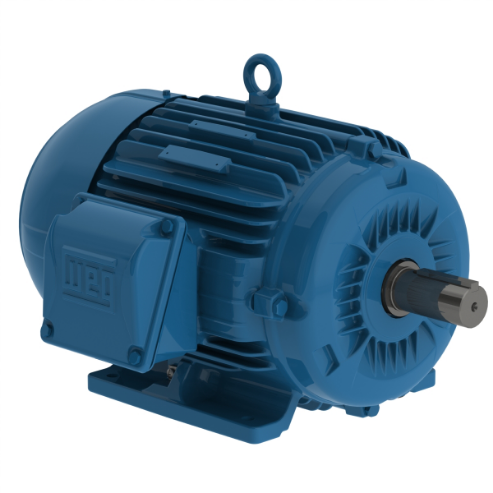

WEG 00518ET3E184T-W22G Electric Motor, 5Hp, 60Hz, 1800 Rpm | BB9QUH

WEG 00518ET3E184T-W22G 13864389 Electric Motor, 5Hp, 60Hz, 1800 Rpm

Item: BB9QUHModel: 00518ET3E184T-W22GCross Ref: 13864389
Check Availability
In Stock

Get it by Thursday, Dec 18

€1,296.89 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Break-down Torque 290%
Cold Locked Rotor Time 27 sec.
Connection Cables Quantity 9
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency At 1 % 80%
Efficiency At 50 % 62%
Efficiency At 75 % 74%
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Type Without
Frame 182/4T
Frame Material Cast Iron
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 15 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 97.4/48.7A
Locked Rotor Torque 229%
Lrc 7.5X(Code J)
Main Terminal Box Hole Size 1"
Main Terminal Box Hole Type NPT
Moment Of Inertia 0.4003 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1750 RPM
Mounting Foot Mounted
No Load Amps 5.8/2.9A
No. Of Poles 4
Noise Level 56 dBA
Output 5 hp
Output Rating 5 hp
Overload Protector Without Overload Protector
Painting RAL5009 207A (ISO 12944-C2)
Phase 3
Power Factor At 1 % 89.5
Power Factor At 50 % 88.5
Power Factor At 75 % 89.5
Rated Current 13/6.49A
Rated Torque 15 lbs.-ft.
Rated Voltage 230/460V AC
Rotation CW/CCW
Rpm 1700-1800 RPM
Service Factor 1.25
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.78%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 230/460/380V AC

Shipping Info:

Ship weight (kg) 45.9
Ship height (cm)23.83
Ship length (cm)32.39
Ship width (cm)24.13
Country of OriginBR
