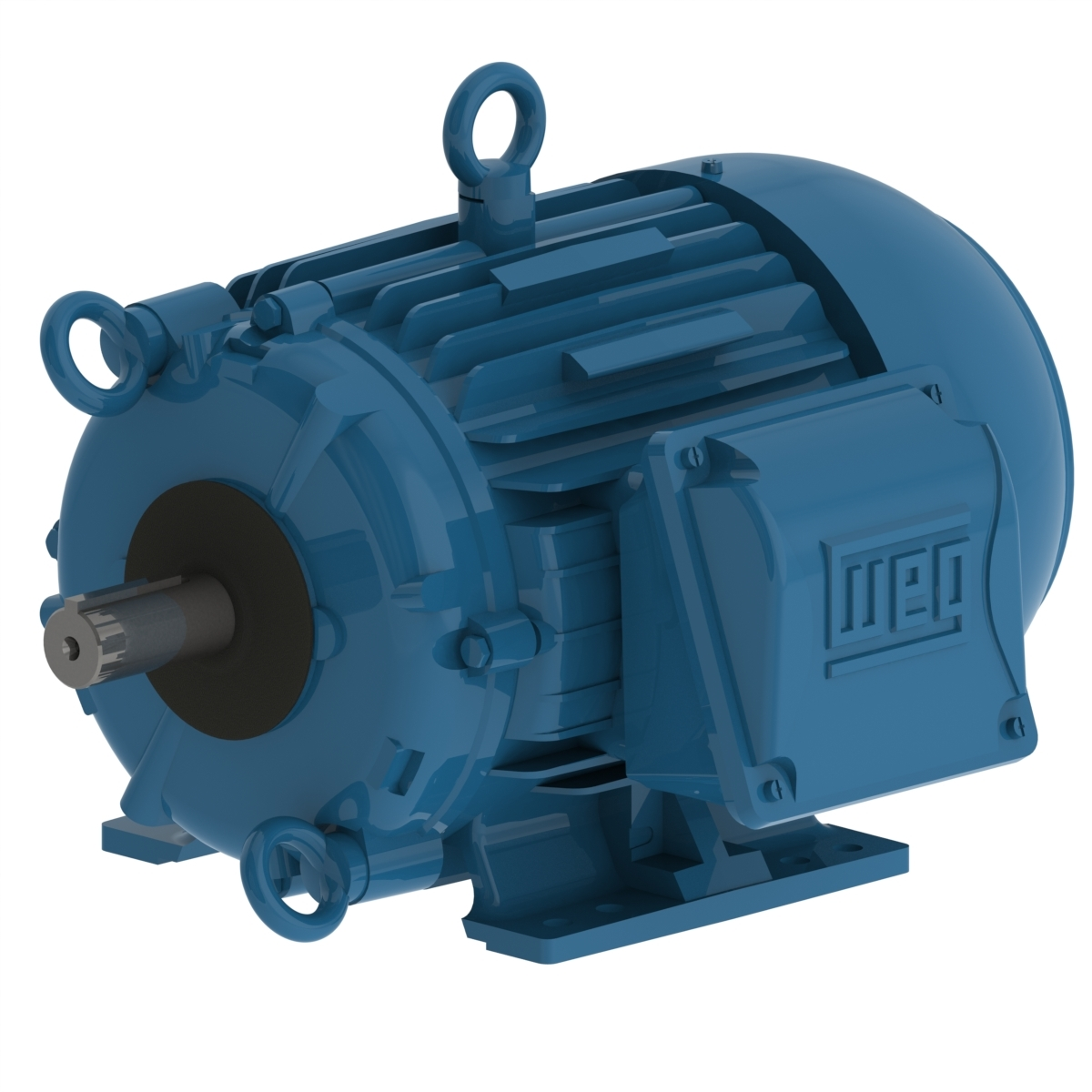

WEG 00512ET3HCT215T-W22 13729963 Cooling Tower Motor, 5 HP, 1200 RPM, 575 V, 3 Phase, TEFC, 215T Frame, Footed, Premium
Get it by Tuesday, Feb 24
€1,764.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cooling Tower Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Break-down Torque | 260% |
| Cold Locked Rotor Time | 102 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 6 |
| Design | B |
| Drain | Automatic, Rubber |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 76% |
| Efficiency At 50 % | 58% |
| Efficiency At 75 % | 70% |
| Enclosure | Totally Enclosed Fan Cooled |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Without |
| Frame | 213/5T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 57 sec. |
| Hp | 5 hp |
| Impregnation Method | Double Impregnation Polyester |
| Insulation Class | Class F |
| Joints Seal | Permatex |
| L. R. Amps | 37.2A |
| Locked Rotor Torque | 170% |
| Lrc | 6.8X(Code J) |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 1.47 lbs.-sq. ft. |
| Mounting | Foot Mounted |
| No Load Amps | 2.76A |
| No. Of Poles | 6 |
| Noise Level | 55 dBA |
| Output Hp | 5 hp |
| Output Power | 3.7 kW |
| Output Rating | 5 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL 5009 202E (ISO 12944 - C4) |
| Phase | 3 |
| Power Factor At 1 % | 89.5 |
| Power Factor At 50 % | 88.5 |
| Power Factor At 75 % | 89.5 |
| Rated Current | 5.46A |
| Rated Speed | 1170 RPM |
| Rated Torque | 22.4 lbs.-ft. |
| Rated Voltage | 575V AC |
| Rotation | CW/CCW |
| Rpm | 1100-1200 RPM |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Slip | 2.5% |
| Space Heater Voltage | 110-127/200-240V AC |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Right Position |
| Tropicalized Painting | Complete (200H) |
| Voltage | 575V AC |
Shipping Info:
| Ship weight (kg) | 78.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Voltage | Service Factor | Frequency | Motor Enclosure Design | Hp | Full Load Amps | Nameplate Rpm | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00112ET3E145T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 1" | 3.5/1.7A | 1160 RPM | Three Phase | €758.54 | |
| 00152ET3E182T-W22 | 230/460/380V | 1.25 | 60 Hz | - | 1 1/2 hp | 5.08/2.54A | 1170 RPM | Three Phase | €914.23 | |
| 00212ET3E184T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 2 hp | 6.44/3.22A | 1170 RPM | Three Phase | €988.08 | |
| 00312ET3E213T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 3 hp | 8.8/4.4A | 1175 RPM | Three Phase | €1,525.74 | |
| 00512ET3E215T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 5 hp | 13.7/6.83A | 1170 RPM | Three Phase | €1,801.89 | |
| 00712ET3E254T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 7 1/2 hp | 19/9.48A | 1175 RPM | Three Phase | €2,634.64 | |
| 01012ET3E256T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 10 hp | 26.6/13.3A | 1175 RPM | Three Phase | €3,044.25 |
