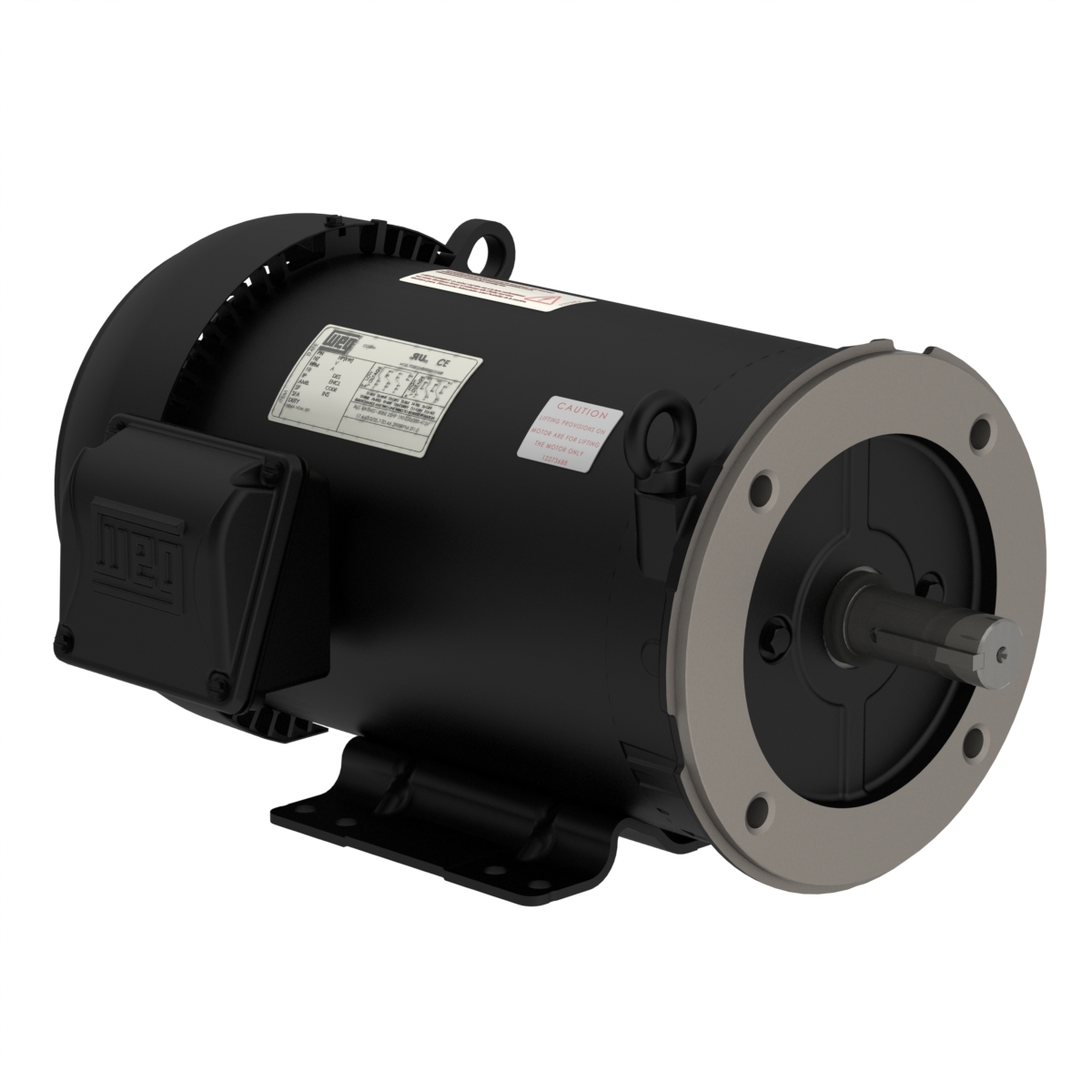

WEG 00318ET3E182TC-SG 13163344 Electric Motor, 3Hp, 60Hz, 1800 Rpm
Get it by Thursday, Dec 18
€930.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 300% |
| Cold Locked Rotor Time | 32 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 81% |
| Efficiency At 50 % | 61% |
| Efficiency At 75 % | 74% |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange Type | C |
| Frame | 182/4TC |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 18 sec. |
| Hp | 3 hp |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 67.1/33.5A |
| Locked Rotor Torque | 220% |
| Lrc | 8.8X(Code K) |
| Main Terminal Box Hole Size | 1.118" |
| Moment Of Inertia | 0.4017 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1765 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 4/2A |
| No. Of Poles | 4 |
| Noise Level | 56 dBA |
| Output | 3 hp |
| Output Rating | 3 hp |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 89.5 |
| Power Factor At 50 % | 87.5 |
| Power Factor At 75 % | 88.5 |
| Rated Current | 7.62/3.81A |
| Rated Torque | 8.93 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Ships Factory Direct | No |
| Slip | 1.94% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460/190-220/380-415V AC |
Shipping Info:
| Ship weight (kg) | 39.15 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 52.83 |
| Ship width (cm) | 37.08 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Frequency | Service Factor | Hp | Frame | Duty Cycle | Frame Material | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
03018ET3E286T-W22G | 208-230/460V | 50/60 Hz | - | 30 hp | 286T | Continuous | Cast Iron | 4 | €6,374.11 | |
 |
10018ET3E405T-W22G | 230/460/380V AC | 60 Hz | 1.25 | 100 hp | 404/5T | S1 | Cast Iron | 4 | €14,765.27 | |
 |
04018ET3E324T-W22G | 230/460/380V AC | 60 Hz | - | 40 hp | 324/6T | S1 | Cast Iron | 4 | €7,977.95 | |
 |
01518ET3E254T-SG | 230/460/190-220/380-415V AC | 60 Hz | 1.15 | - | 254/6T | S1 | Rolled Steel | 4 | €3,122.55 | |
|
02536ET3E284TS-W22G | 230/460/380V AC | 50/60 Hz | 1.25 | 25 hp | 284/6TS | S1 | Cast Iron | 2 | €5,968.17 | |
 |
00152ET3E182T-SG | 230/460/190-220/380-415V AC | 50/60 Hz | 1.15 | - | 182/4T | S1 | Rolled Steel | 6 | €985.49 | |
|
02518ET3H284T-W22G | 575V AC | 60 Hz | 1.25 | 25 hp | 284/6T | S1 | Cast Iron | 4 | €3,529.34 |
