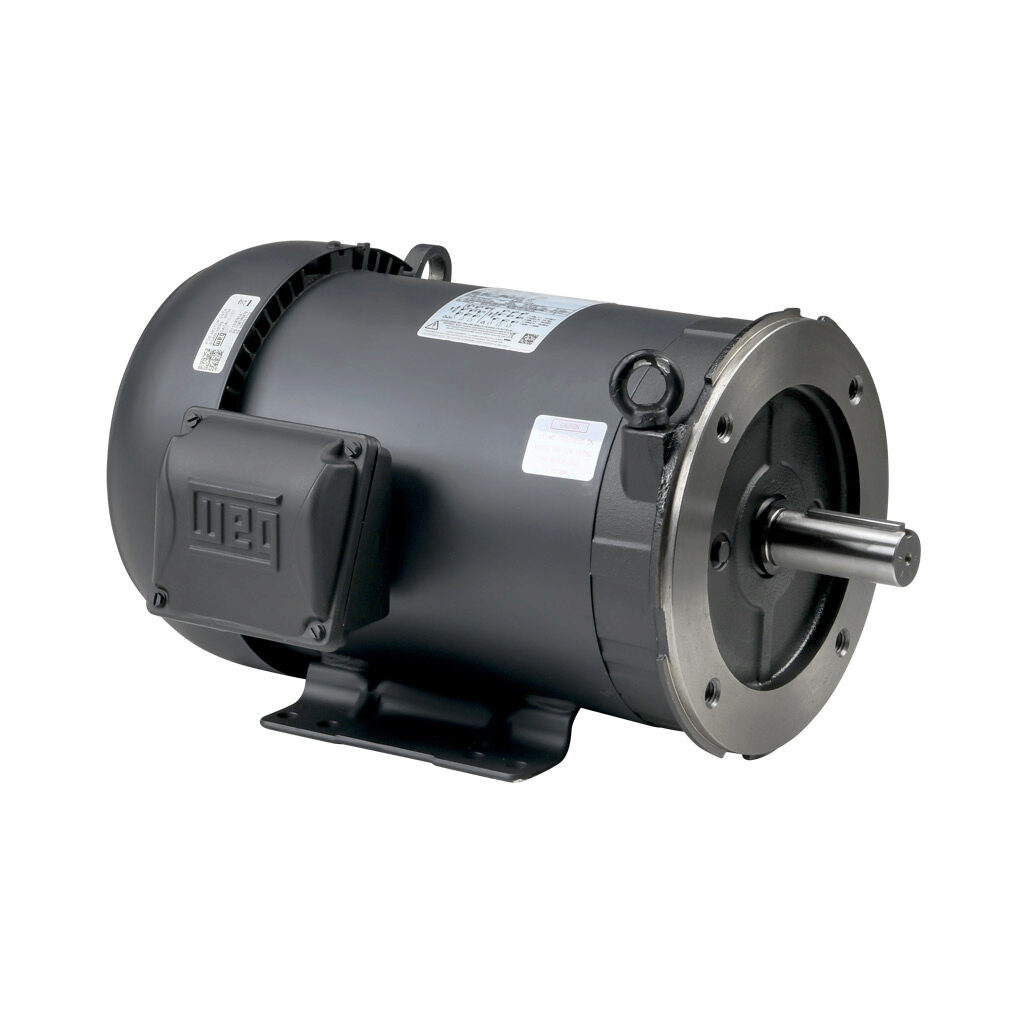

WEG 00152ET3E182TC-S 13187814 General Purpose Motor, TEAO/TEFC Rolled Steel 182/4TC Frame, 1.5 HP, 965 RPM, 415V, F-1 Mounting
Get it by Friday, Feb 20
€823.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 340% |
| Cold Locked Rotor Time | 99 sec. |
| Connection Cables Quantity | 9 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency | 87.5% |
| Efficiency At 1 % | 71% |
| Efficiency At 50 % | 50% |
| Efficiency At 75 % | 63% |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange Type | C |
| Frame | 182/4TC |
| Frame Material | Rolled Steel |
| Frame Size | 182TC |
| Frequency | 50/60 Hz |
| Grade | Grade 1045 |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 55 sec. |
| Hp | 1 1/2 hp |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Ip Rating | IP55 |
| L. R. Amps | 30.6/15.3A |
| Locked Rotor Torque | 240% |
| Lrc | 6.9X(Code K) |
| Main Terminal Box Hole Size | 1.118" |
| Moment Of Inertia | 0.28 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 182TC |
| Motor Speed | 1170 RPM |
| Motor Type | Induction |
| Mounting | Foot Mounted |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Rpm | 1170 RPM |
| No Load Amps | 2.73/1.36A |
| No. Of Poles | 6 |
| Noise Level | 52 dBA |
| Number Of Phases | 3 |
| Output | 1 1/2 hp |
| Output Rating | 1 1/2 hp |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 87.5 |
| Power Factor At 50 % | 84 |
| Power Factor At 75 % | 86.5 |
| Product Datasheet | weg-00152et3e182tc-s.pdf |
| Rated Current | 4.44/2.22A |
| Rated Torque | 6.73 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 1100-1200 RPM |
| Service Factor | 1.15 |
| Shaft Diameter | 1 1/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.5% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 37.35 |
| Ship height (cm) | 48.26 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 45.72 |
| Country of Origin | BR |
Documentation:
Product Variants
| Model | Voltage | Service Factor | Frequency | Motor Enclosure Design | Hp | Full Load Amps | Nameplate Rpm | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00112ET3E145T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 1" | 3.5/1.7A | 1160 RPM | Three Phase | €758.54 | |
| 00152ET3E182T-W22 | 230/460/380V | 1.25 | 60 Hz | - | 1 1/2 hp | 5.08/2.54A | 1170 RPM | Three Phase | €914.23 | |
| 00212ET3E184T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 2 hp | 6.44/3.22A | 1170 RPM | Three Phase | €988.08 | |
| 00312ET3E213T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 3 hp | 8.8/4.4A | 1175 RPM | Three Phase | €1,525.74 | |
| 00512ET3E215T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 5 hp | 13.7/6.83A | 1170 RPM | Three Phase | €1,801.89 | |
| 00712ET3E254T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 7 1/2 hp | 19/9.48A | 1175 RPM | Three Phase | €2,634.64 | |
| 01012ET3E256T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 10 hp | 26.6/13.3A | 1175 RPM | Three Phase | €3,044.25 |
