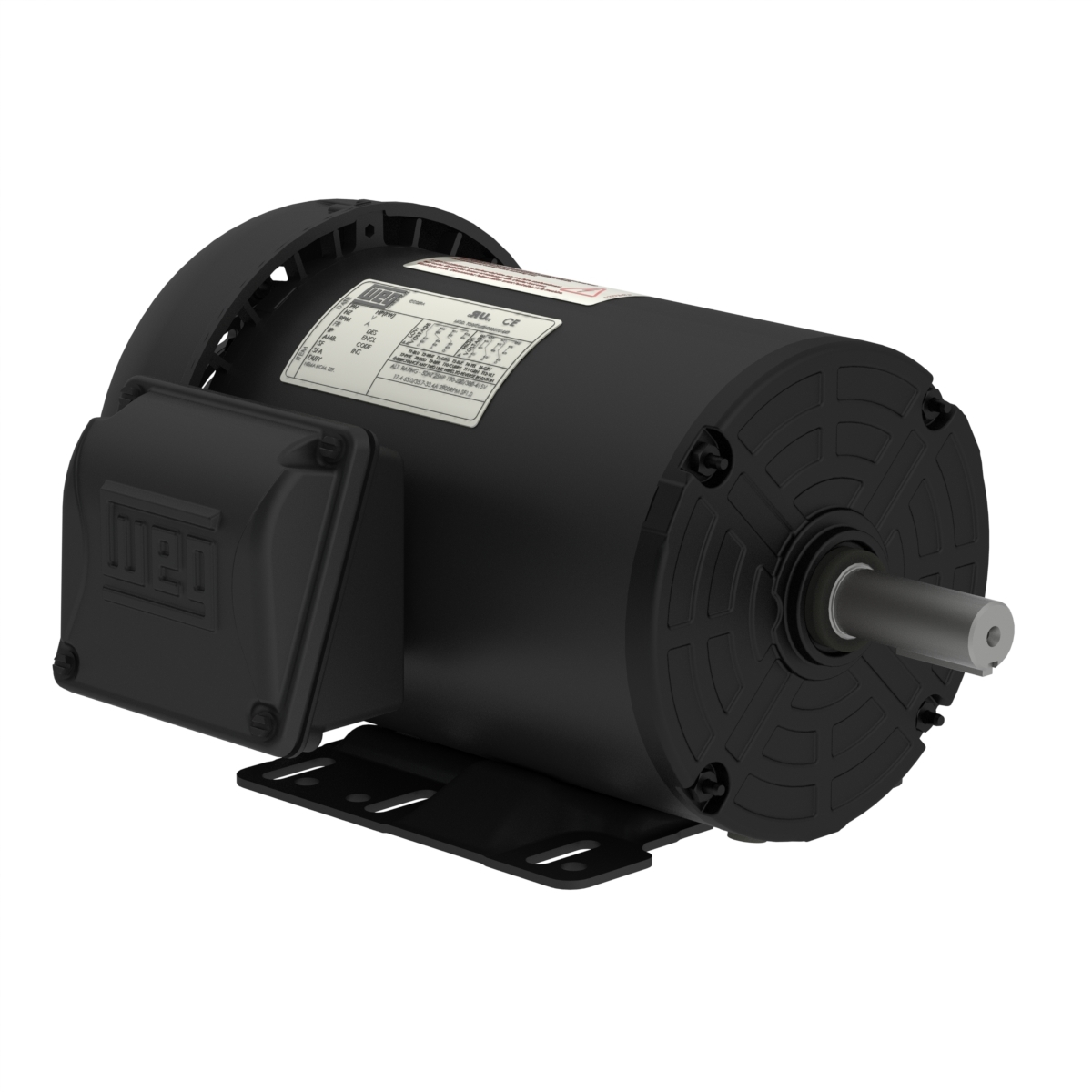

WEG 00136ET3E143T-S Electric Motor, 1Hp, 60Hz, 3600 Rpm | BC2JFY

WEG 00136ET3E143T-S 14827713 General Purpose Motor, TEAO/TEFC RolLED Steel 143/5T Frame, 1 HP, 2905 RPM, 415 V

Item: BC2JFYModel: 00136ET3E143T-SCross Ref: 14827713
Check Availability
In Stock

Get it by Wednesday, Feb 18

€501.10 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap No
Bolt Material Carbon Steel
Break-down Torque 300%
Cold Locked Rotor Time 39 sec.
Composition Steel
Connection Cables Quantity 9
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle Continuous
Efficiency At 1 % 83%
Efficiency At 50 % 65%
Efficiency At 75 % 76%
Enclosure Type Tefc
Fan Cover Material Polymer
Fan Material Plastic
Flange Type Without
Frame 143/5T
Frame Material Rolled Steel
Frame Size 143T
Frequency 50/60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 22 sec.
Hp 1 hp
Impregnation Method Dip And Bake Polyester
L. R. Amps 22.5/11.2A
Locked Rotor Torque 200%
Lrc 7.8X(Code K)
Main Terminal Box Hole Size 1.118"
Moment Of Inertia 0.0643 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 3510 RPM
Mounting Foot Mounted
No Load Amps 1.4/0.7A
No. Of Poles 2
Noise Level 68 dBA
Output 1 hp
Output Rating 1 hp
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor At 1 % 78.5
Power Factor At 50 % 72
Power Factor At 75 % 77
Product Datasheet weg-00136et3e143t-s.pdf
Rated Current 2.88/1.44A
Rated Torque 1.5 lbs.-ft.
Rated Voltage 230/460V AC
Resilient Base Without
Rotation Clockwise/Counter Clockwise
Rpm 3400-3600 RPM
Service Factor 1.15
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.5%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 230/460/190-220/380-415V AC

Shipping Info:

Ship weight (kg) 13.95
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelVoltageService FactorHpFrequencyMotor Enclosure DesignFull Load AmpsNameplate RpmMotor TypePrice
WEG 01836ET3Y160LFF-W22 Metric Motor, 25Hp, 230/460v Cw / Ccw | AA2GEN 10G894 01836ET3Y160LFF-W22380-415/460V1.2525 hp50 HzTotally Enclosed Fan Cooled29.9A3550 RPM-€5,367.05
WEG 03736ET3Y200LFF-W22 Metric Motor, 50Hp, 230/460v Cw / Ccw | AA2GEY 10G904 03736ET3Y200LFF-W22380-415/460V1.2550 hp60 HzTotally Enclosed Fan Cooled59.8A3570 RPM-€9,770.55
WEG 05536ET3Y250S/MFF-W2 Metric Motor, 75Hp, 230/460V, Cw / Ccw | AA2GFD 10G909 05536ET3Y250S/MFF-W2460V AC1.2575 hp50/60 HzTotally Enclosed Fan Cooled80.3A3600 RPM-€16,526.29
WEG 00156ET3H143TC-W22 General Purpose Motor, 3-phase Tefc 1-1/2 Hp, 3495 Rpm 143tc | AA4JCX 12N885 00156ET3H143TC-W22575V AC1.251 1/2 hp60 HzTotally Enclosed Fan Cooled1.57A3480 RPMThree Phase€840.81
WEG 00236ET3H145TC-W22 General Purpose Motor, 3-phase Tefc 2 Hp, 3490 Rpm 145tc | AA4JCZ 12N887 00236ET3H145TC-W22575V AC1.252 hp60 HzTotally Enclosed Fan Cooled2.05A3475 RPMThree Phase€853.67
WEG 00336ET3H182TC-W22 General Purpose Motor, 3-phase Tefc 3 Hp, 3510 Rpm 182tc | AA4JDB 12N889 00336ET3H182TC-W22575V13 hp60 HzTotally Enclosed Fan Cooled2.9A3515 RPMThree Phase€1,055.20
WEG 00536ET3H184TC-W22 General Purpose Motor, 3-phase Tefc 5 Hp, 3510 Rpm 184t | AA4JDD 12N891 00536ET3H184TC-W22575V AC1.255 hp60 HzTotally Enclosed Fan Cooled4.72A3485 RPMThree Phase€1,251.50
