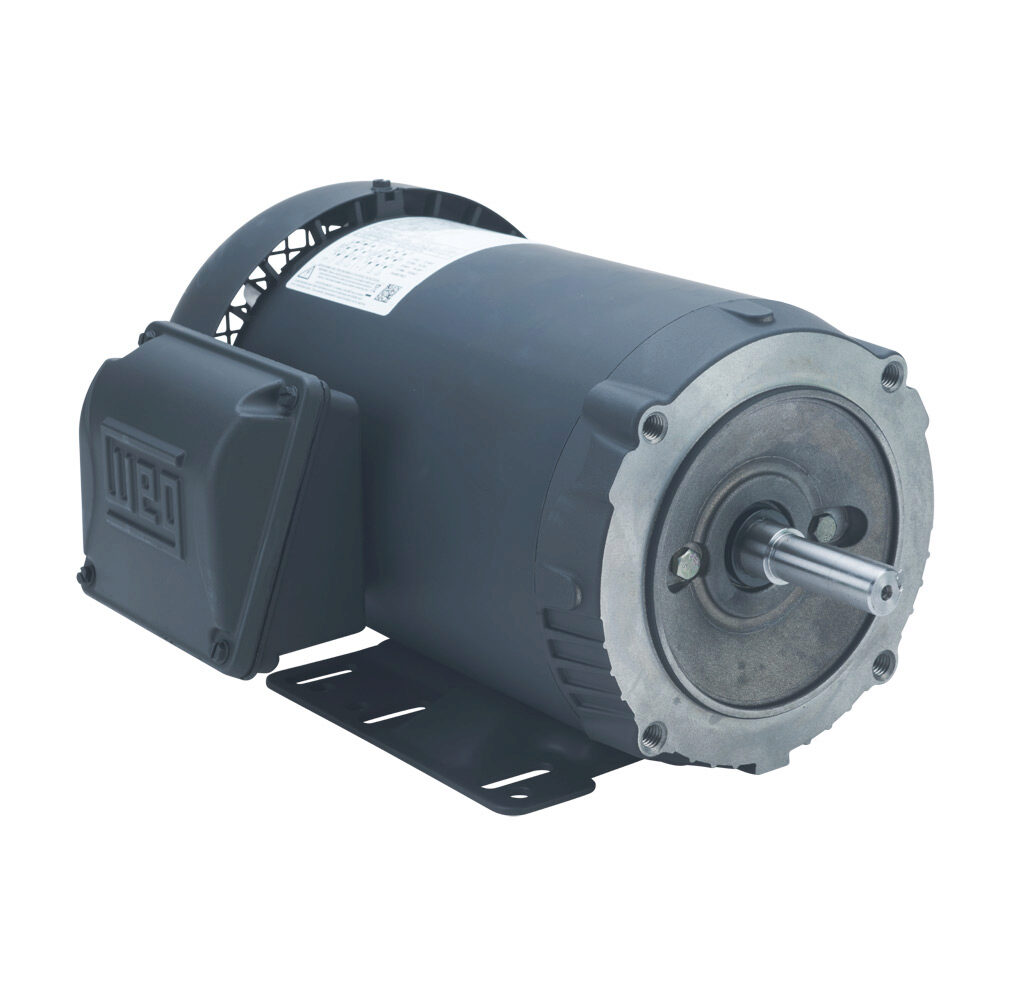

WEG 00158ET3E56C-S 14799000 General Purpose Motor, 1.5 HP, 1800 RPM, 208-230/460 V, 3 phase, TEFC, 56C Frame, Footed
1800 rpm
1.5 hp
56C
Get it by Monday, Jul 6
5.00% off
€589.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 2.02/4.04A , 4.04/2.02A |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 300% |
| Cable Press Material | Sem |
| Cc Number | CC029A |
| Cold Locked Rotor Time | 37 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Constant Torque Rating | 5:1 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 86.5% |
| Efficiency 50% | 59% , 85.5% |
| Efficiency 75% | 86.5% |
| Efficiency @ 1 % | 79% |
| Efficiency @ 100% | 86.5% |
| Efficiency @ 75 % | 72% |
| Efficiency Group | Premium Efficiency |
| Electrically Reversible | Yes |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Polymer , Steel |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 56HC |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 44/22A |
| Full Load Amps @ 50 Hz | 4.38/2.32/4.82/2.41A |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 21 sec. |
| Hp | 1 1/2 hp |
| Hp @ 50 Hz | 1 1/2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Included | Conduit Box |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Integrated Brake | No |
| Inverter Rated | Yes |
| Ip Rating | IP55 |
| L. R. Amps | 16.6/33.1A , 33.1/16.6A |
| Length Less Shaft | 11 5/8" |
| Locked Rotor Time (cold) | 37 sec. |
| Locked Rotor Time(hot) | 21 sec. |
| Locked Rotor Torque | 270% |
| Lrc | 8.2X(Code K) |
| Main Terminal Box Hole | 0.881" |
| Main Terminal Box Hole Size | 0.881" |
| Max. Ambient Temp. | 40°C |
| Moment Of Inertia | 0.1101 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.1101 lbs.-sq. ft. |
| Motor Application | General Purpose And Inverter Rated |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 56HC |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Speed | 1750 RPM |
| Motor Type | Induction |
| Mounting | F-1 , Foot Mounted |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Speed | 1750 RPM |
| Nema Design | Design B |
| No Load Amps | 1.08/2.17A , 2.17/1.08A |
| No. Of Phase | 3 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Noise Level | 52 dBA |
| Nominal Efficiency | 86.5% |
| Output | 1 1/2 hp |
| Output Rating | 1 1/2 hp |
| Overall Length | 13 1/2" |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.79 |
| Power Factor 50% | 0.59 |
| Power Factor 75% | 0.72 |
| Power Factor @ 1 % | 86.5 |
| Power Factor @ 50 % | 85.5 |
| Power Factor @ 75 % | 86.5 |
| Product Datasheet | weg-00158et3e56c-s.pdf |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Series | S Series |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Shaft Type | Round With Square Key |
| Slip | 2.78% |
| Speed | 1700-1800 RPM , 1701-1800 RPM , 1750 RPM |
| Standards | Csa, Ul |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 4.5 lbs.-ft. |
| Tropicalized Painting | Without |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Variable Torque Rating | 1000:1 |
| Voltage | 190-220/230/380-415/460V , 208-230/460V AC , 230/460V AC |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 19.35 |
| Ship height (cm) | 48.26 |
| Ship length (cm) | 34.29 |
| Ship width (cm) | 45.72 |
| Country of Origin | BR |
Documentation:
Product Variants
| Model | Frequency | Service Factor | Hp | Motor Enclosure Design | Full Load Amps | Motor Type | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 60 Hz | 1 | 2 hp | Totally Enclosed Fan Cooled | 2.8A | - | Rigid Base | 90L | €914.46 | |
| 00218ET3W100L-W22 | 60 Hz | 1 | 3 hp | Totally Enclosed Fan Cooled | 4.1A | - | Rigid Base | 100L | €1,095.12 | |
| 00418ET3Y112M-W22 | 60 Hz | 1 | 5 1/2 hp | Totally Enclosed Fan Cooled | 7.3A | - | Rigid Base | 112M | €1,177.86 | |
| 00518ET3Y132S-W22 | 60 Hz | 1 | 7 1/2 hp | Totally Enclosed Fan Cooled | 9.1A | - | Rigid Base | 132S | €1,613.01 | |
| 00718ET3Y132M-W22 | 60 Hz | 1 | 10 hp | Totally Enclosed Fan Cooled | 12.2A | - | Rigid Base | 132M | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 50/60 Hz | 1.25 | 25 hp | Totally Enclosed Fan Cooled | 30.6A | - | Face, Base | 180M | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 50/60 Hz | 1.25 | 30 hp | Totally Enclosed Fan Cooled | 36A | - | Face, Base | 180L | €5,926.53 |
