SQUARE D QDA221754 Circuit Breaker 175a 2p 240vac Lug
Item: AF9HGLModel: QDA221754Cross Ref: 2GPH1
7 In Stock
Ships within 2 days via
5.00% off
€978.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 240V AC |
| Ambient Air Temp. For Operation | 104°F to 158°F |
| Amps | 175A |
| Breaking Capacity | 100 kA 120/208V AC 50/60 Hz UL |
| Breaking Capacity Code | D |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Application | HACR Rated |
| Circuit Breaker Mounting Style | I-Line |
| Circuit Breaker Type | Standard |
| Component Type | Circuit Breaker |
| Continuous Amps Rating | 80% |
| Control Type | Operating Handle |
| Dc Voltage | Not Rated |
| Dc Voltage Rating | Not Rated |
| Depth | 3.93" |
| Device Application | Distribution |
| Electrical Connection | I-Line Connection, Line, Lugs, Load |
| For Use With | I Line Panelboards |
| Frame | 250A/QD |
| Frame Size | 250A, QD |
| Height | 6.47" |
| High Amp Trip Setting | 2400A |
| Instantaneous Trip | Fixed |
| Line Rated Amps | 175A |
| Local Signalling | 1 Trip Indicator Green |
| Low Amp Trip Setting | 1200A |
| Magnetic Hold Amps | 1200A |
| Magnetic Tripping Amps | 2400A |
| Max. Air Rating | 25kA |
| Max. Air Rating | 25 kA At 240V AC |
| Max. Wire Size | 300 MCM |
| Mechanical Durability | 1000 Cycles Loaded, 5000 Cycles No Load |
| Min. Wire Size | 4 AWG |
| Mounting | Plug In Panelboard |
| Mounting Height | 3" |
| Mounting Mode | I Line Bracket |
| Mounting Support | Bracket |
| Network Frequency | 50/60 Hz |
| No. Of Poles | 2 |
| Number Of Poles | 2 |
| Phase | 1 |
| Phase Connection | BC |
| Power Wire Stripping Length | 0.9" |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Operational Voltage | 240V |
| Returnability | Yes |
| Terminal Connection | Lug |
| Terminal Connection Type | Lug |
| Tightening Torque | 247.8 lbf.in. @ 0.04 sq. in. to 0.2 sq. in. @ 4 AWG to 300 kcmil |
| Trip Type | Thermal Magnetic |
| Trip Unit Technology | Thermal-Magnetic |
| Utilisation Category | Category A |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 2.14 |
| Ship height (cm) | 10.8 |
| Ship length (cm) | 31.27 |
| Ship width (cm) | 18.9 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Details:
- Instantaneous Trip (Fixed)
Product Variants
| Model | Number Of Poles | Phase Connection | Amps | Phase | Mounting Height | High Amp Trip Setting | Low Amp Trip Setting | Max. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

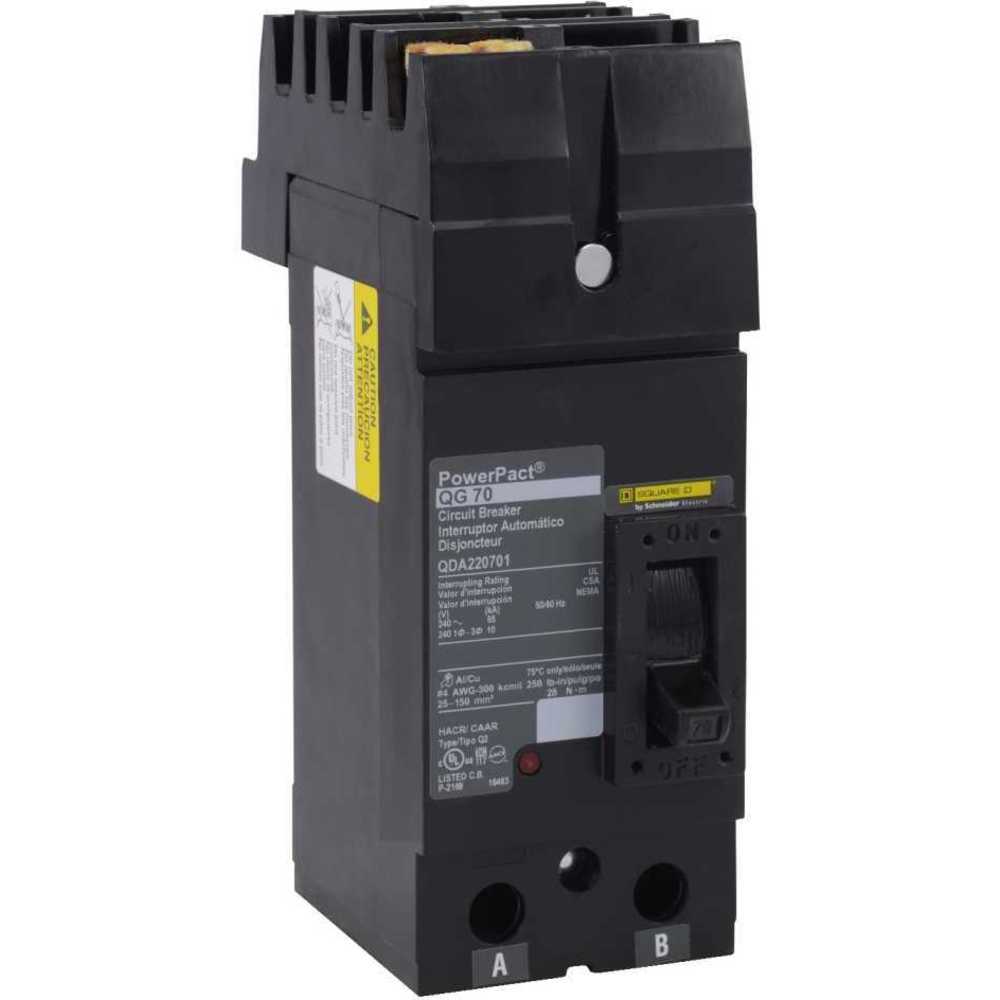

| QDA220701 | 2 | AB | 70A | 1 | 3" | 1800A | 1000A | 300 MCM | €2,969.76 | |
| QDA220704 | 2 | BC | 70A | 1 | 3" | 1800A | 1000A | 300 MCM | €3,040.52 | |
| QDA220801 | 2 | AB | 80A | 1 | 3" | 1800A | 1000A | - | €2,685.57 | |
| QDA220804 | 2 | BC | 80A | 1 | 3" | 1800A | 1000A | 300 MCM | €2,155.20 | |
| QDA220904 | 2 | BC | 90A | 1 | 3" | 1800A | 1000A | 300 MCM | €3,153.90 | |
| QDA221001 | 2 | AB | 100A | 1 | 3" | 2400A | 1200A | 300 MCM | €989.80 | |
| QDA221002 | 2 | AC | 100A | 1 | 3" | 2400A | 1200A | 300 MCM | €989.80 |
