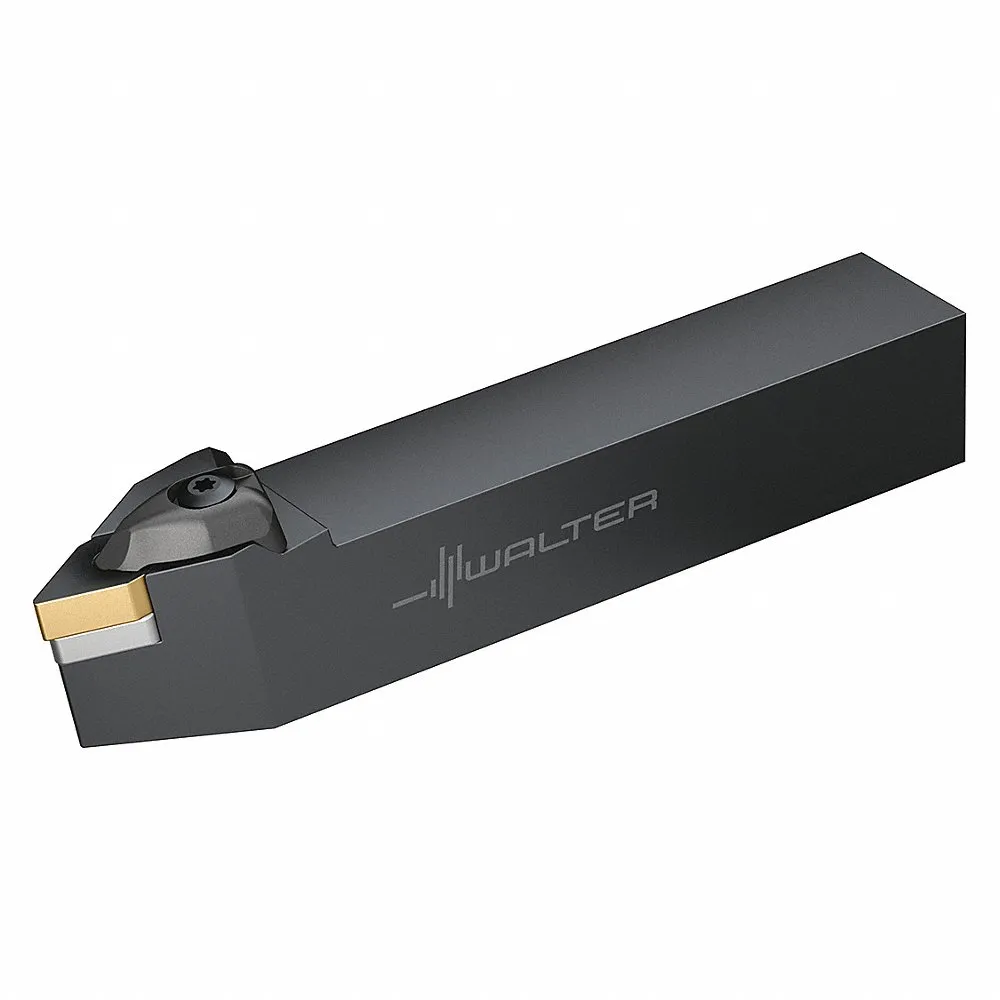

WALTER TOOLS DDNNN3225P15 5204614 Indexable Turning and Profiling Tool Holder, DDNN Toolholder, 55 Deg. Diamond
Item: CU9KBQModel: DDNNN3225P15Cross Ref: 56PR33 / 5204614
7 In Stock
1.606"
DN .. 1506 ..
6.693"
0.512"
Ships within 2 days via
5.00% off
€246.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tool Holder |
| Approach Angle | 63° |
| Cutting Direction | Neutral |
| Functional Width | 0.512" |
| Hand | N |
| Inclination Angle | -9° |
| Insert Angle | 55° |
| Insert Clearance Angle | 0° |
| Insert Cutting Edge Length | 15 mm |
| Insert Holding Type | Top And Hole Clamping |
| Insert Seat Size | 15 |
| Insert Shape | Diamond |
| Iso Number | DDNNN3225P15 |
| Lead Angle | 63° |
| Length | 6.693" |
| Orthogonal Rake Angle | -5° |
| Overall Length | 170 mm |
| Projection Length | 1.606" |
| Shank Height | 32 mm |
| Shank Width | 25 mm |
| Toolholder Style | DDNN |
Shipping Info:
| Ship weight (kg) | 1.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 17 |
| Ship width (cm) | 2.54 |
| Country of Origin | SE |
Product Variants
| Product | Model | Shank Height | Shank Width | Projection Length | Insert Seat Size | Functional Width | Insert Cutting Edge Length | Insert Holding Type | Cutting Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CRDCN3225P09-A | 32 mm | 25 mm | 1.22" | 9 | 0.677" | 9 mm | Top Clamp | Neutral | €475.31 | |
|
CRDCN3225P12-A | 32 mm | 25 mm | 1.575" | 12 | 0.74" | 12 mm | Top Clamp | Neutral | €475.31 | |
 |
CRDNN2525M12-ID | 25 mm | 25 mm | 1.26" | 12 | 0.74" | 12 mm | Top Clamp | Neutral | €372.44 | |
|
CRDNN3225P12-ID | 32 mm | 25 mm | 1.26" | 12 | 0.74" | 12 mm | Top Clamp | Neutral | €372.44 | |
 |
CRSNL3232P15-ID | 32 mm | 32 mm | 1.181" | 15 | 1.575" | 12 mm | Top Clamp | Left Hand | €460.05 | |
 |
CRSNL2525X12-P | 25 mm | 25 mm | 1.516" | 12 | 1.26" | 12 mm | Top Clamp | Left Hand | €573.15 | |
|
CRSNL2525M12-ID | 25 mm | 25 mm | 1.102" | 12 | 1.26" | 12 mm | Top Clamp | Left Hand | €372.44 |
