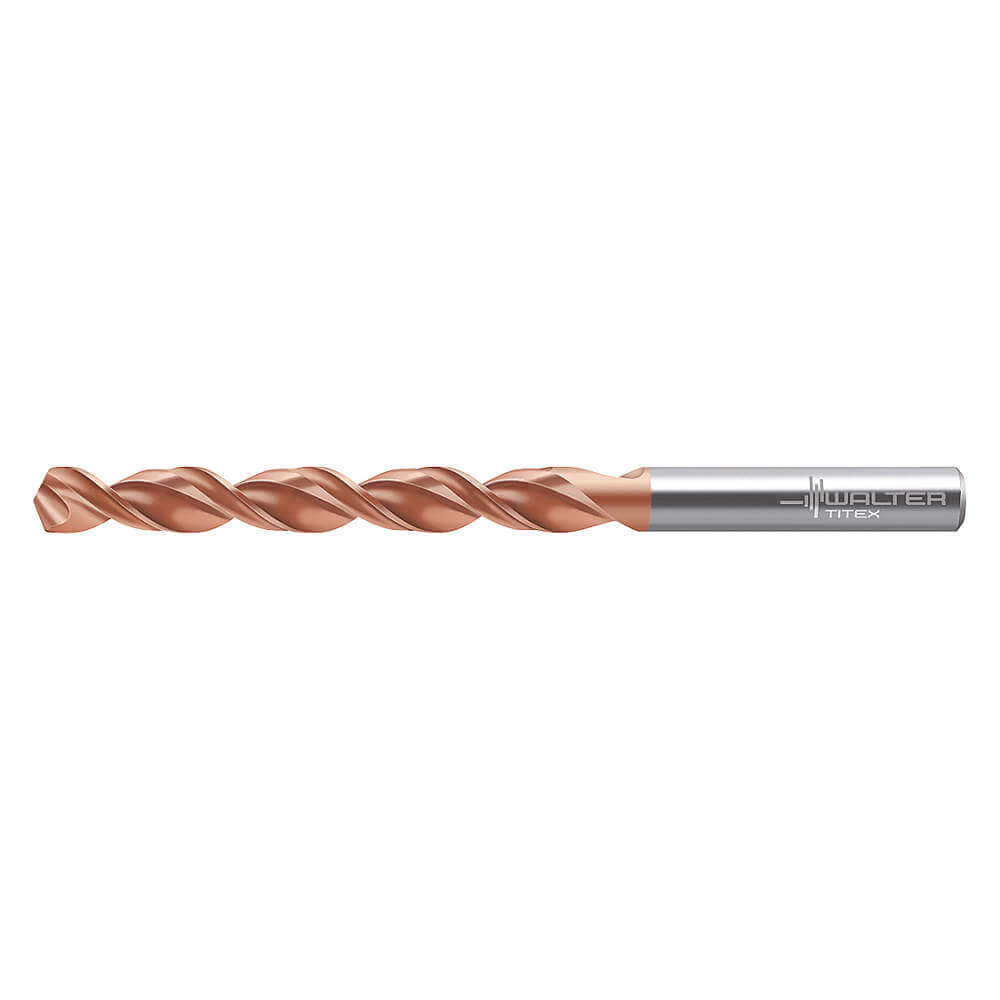

WALTER TOOLS A1249XPL-17 5236517 Drill High Speed Steel 17mm
Item: AH4YFEModel: A1249XPL-17Cross Ref: 35RC81 / 5236517
7 In Stock
Ships within 2 days via
10.00% off
€425.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.6693 |
| Depthdia. Ratio | 8xd |
| Dimension Type | Metric |
| Drill Bit Point Angle | 130° |
| Drill Bit Point Type | Ufl |
| Drill Bit Size | 17.00mm |
| Drill Bit Size | 17 mm |
| Drill Dia. Tolerance | H8 |
| Drill Length Class | Jobber Length |
| Drill Point Length | 3.96 mm |
| Finish | AlCrN |
| Finish - Machining | AlCrn |
| Flute Length | 125 mm |
| Flute Type | Parabolic |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 125 mm |
| Measurement System | Metric |
| Number Of Flutes | 2 |
| Overall Length | 184 mm |
| Point Angle | 130° |
| Point Type | UFL |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, M, N, P |
| Secondary Material Application | Composite |
| Secondary Material Application Iso Code | O |
| Series | UFL Series |
| Shank Dia. | 6 mm |
| Shank Length | 59 mm |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 18.4 |
| Ship width (cm) | 2.54 |
| Country of Origin | BR |
Product Details:
- Coolant Through : No
Product Variants
| Model | Decimal Equivalent | Flute Length | Drill Bit Size | Overall Length | Shank Length | Drill Point Length | Material | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| A1249XPL-16.5 | 0.6496 | 125 mm | 16.5 mm | 184 mm | 59 mm | 3.85 mm | High Speed Steel | AlCrN | €455.14 | |
| A1249XPL-17.5 | 0.689 | 130 mm | 17.5 mm | - | 61 mm | 4.08 mm | High Speed Steel | AlCrN | €496.49 | |
| A1249XPL-18 | 0.708" | 139 mm | - | - | - | - | High Speed Steel | AlCrN | €521.20 | |
| A1249XPL-18.5 | 0.7283 | 135 mm | 18.5 mm | 198 mm | 63 mm | 4.31 mm | High Speed Steel | AlCrN | €545.52 | |
| A1249XPL-19 | 0.748 | 135 mm | 19 mm | 198 mm | 63 mm | 4.43 mm | High Speed Steel | AlCrN | €571.00 | |
| A1249XPL-19.5 | 0.767" | 149.75 mm | - | 205 mm | - | - | High Speed Steel | AlCrN | €603.63 | |
| A1249XPL-20 | 0.7874 | 140 mm | 20 mm | 205 mm | 65 mm | 4.66 mm | High Speed Steel | AlCrN | €628.79 |
