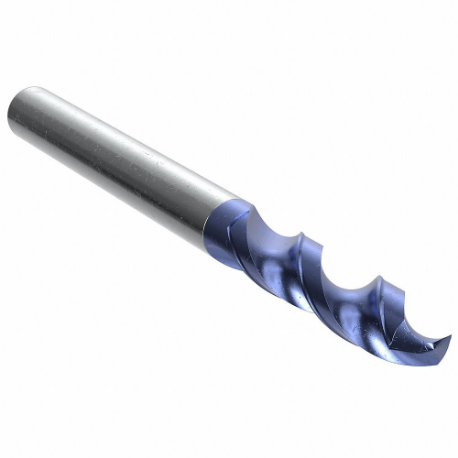

WALTER TOOLS A1154TFT-4.6 5200107 Screw Machine Drill Bit, 4.60 mm Size, 58 mm Overall Length
Item: CU8XFHModel: A1154TFT-4.6Cross Ref: 442C11 / 5200107
7 In Stock
0.181"
Ships within 2 days via
5.00% off
€43.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Screw Machine Drill Bit |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Edge Dia. | 0.181" |
| Cutting Edge Length | 0.63" |
| Decimal Equivalent | 0.1811 |
| Depth X Dia. Ratio | 3xd |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 4.6 mm |
| Drill Dia. Tolerance | H8 |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 1.38 mm |
| Finish | Aluminum Titanium Nitride |
| Finish-machining | Tinal |
| Flute Length | 15/16" |
| Flute Type | Spiral |
| Grade | TFT |
| Length | 2.283" |
| Material | High Speed Steel |
| Material Grade-machining | Grade TFT |
| Material-machining | High Speed Steel |
| No. Of Flutes | 2 |
| Overall Length | 58 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Stainless Steel |
| Primary Material Application Iso Code | M, N |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel |
| Secondary Material Application Iso Code | O, P |
| Shank Dia. | 4.6 mm |
| Shank Length | 34 mm |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Sheeter Drill | No |
| System Of Measurement | Metric |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.8 |
| Ship width (cm) | 2.54 |
| Country of Origin | FR |
Product Variants
| Model | Shank Dia. | Decimal Equivalent | Drill Bit Size | Overall Length | Price | |
|---|---|---|---|---|---|---|
| A1149XPL-NO1 | 5.79 mm | 0.228 | #1 | 66 mm | €41.25 | |
| A1148-NO1 | 5.79 mm | 0.228 | #1 | 66 mm | €19.04 | |
| A1149XPL-NO10 | 4.92 mm | 0.1935 | #10 | 62 mm | €36.90 | |
| A1148-NO11 | 4.85 mm | 0.191 | #11 | 62 mm | €15.75 | |
| A1149XPL-NO11 | 4.85 mm | 0.191 | #11 | 62 mm | €35.85 | |
| A1148-NO12 | 4.8 mm | 0.189 | #12 | 62 mm | €15.75 | |
| A1149XPL-NO12 | 4.8 mm | 0.189 | #12 | 62 mm | €35.85 |
