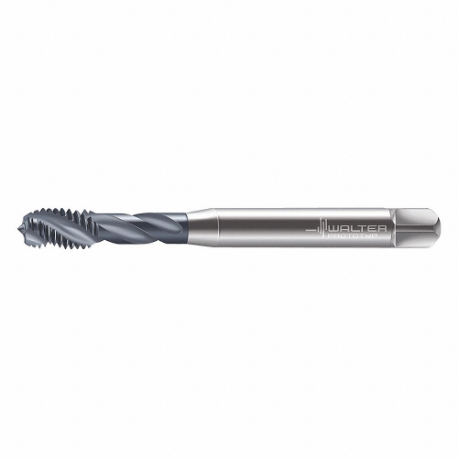

WALTER TOOLS 7051776-M3 Spiral Flute Tap, M3X0.5 Thread Size, 6 mm Thread Length, 56 mm Length, Ticn | CU9JGW 427H11

WALTER TOOLS 7051776-M3 5200699 Spiral Flute Tap, M3X0.5 Thread Size, 6 mm Thread Length, 56 mm Length, Ticn

Item: CU9JGWModel: 7051776-M3Cross Ref: 427H11 / 5200699
7 In Stock

Ships within 2 days via

€78.62
10.00% off
€70.76 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Spiral Flute Tap
55% Thread Drill Size #37
65% Thread Drill Size #38
75% Thread Drill Size 2.5 mm
Coolant Fed Non Coolant Through
Drill Bit Size 2.5 mm
Extended Neck Yes
Features For Long Chipping Materials
Finish Titanium Carbonitride Coated
Helix Angle 40°
Number Of Flutes 3
Overall Length 56 mm
Primary Material Application Steel
Primary Material Application Iso Code P
Secondary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper
Secondary Material Application Iso Code K, N
Shank Dia. 3.5 mm
Shank Length 43 mm
Shank Type Straight
Shank Type - Machining Straight
Spiral Direction Right Hand
Square Size 2.7 mm
Standards DIN 371
System Of Measurement Metric
Tap Chamfer Modified Bottoming, Semi Bottoming
Tap Finish TiCN
Tap Material High Speed Steel
Tap Shank Standard DIN 371
Tap Style Spiral Flute
Tap Thread Size M3 x 0.5
Thread Direction Right Hand
Thread Length 6 mm
Thread Limit D3
Thread Limit/class Of Fit D3
Thread Pitch 0.5 mm
Thread Size M3 x 0.5
Thread Standard Metric Coarse

Shipping Info:

Ship height (cm)2.54
Ship length (cm)5.6
Ship width (cm)2.54
Country of OriginIN
