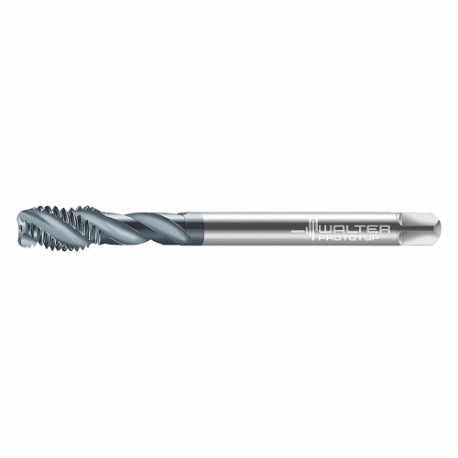

WALTER TOOLS 7056776-M16 Spiral Flute Tap, M16X2 Thread Size, 20 mm Thread Length, 110 mm Length, Ticn | CU9ETK 427H50

WALTER TOOLS 7056776-M16 5200781 Spiral Flute Tap, M16X2 Thread Size, 20 mm Thread Length, 110 mm Length, Ticn

Item: CU9ETKModel: 7056776-M16Cross Ref: 427H50 / 5200781
7 In Stock

Ships within 2 days via

€144.71 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Spiral Flute Tap
55% Thread Drill Size 14.5 mm
65% Thread Drill Size 9/16"
75% Thread Drill Size 14 mm
Clamping Width 0.354"
Connection Dia. 0.472"
Coolant Fed Non Coolant Through
Drill Bit Size 14 mm
Driving Square Length 0.472"
Extended Neck Yes
Features For Long Chipping Materials
Finish Titanium Carbonitride Coated
Functional Length 4.331"
Helix Angle 40°
No. Of Flutes 4
Overall Length 110 mm
Primary Material Application Steel
Primary Material Application Iso Code P
Secondary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper
Secondary Material Application Iso Code K, N
Shank Dia. 12 mm
Shank Length 61 mm
Shank Type Straight
Shank Type-machining Straight
Spiral Direction Right Hand
Square Size 9 mm
Standards Din 376
System Of Measurement Metric
Tap Chamfer Modified Bottoming, Semi Bottoming
Tap Finish TiCN
Tap Material High Speed Steel
Tap Shank Standard DIN 376
Tap Style Spiral Flute
Tap Thread Size M16 x 2
Tap Type Spiral Flute
Thread Direction Right Hand
Thread Length 20 mm
Thread Limit D5, D6
Thread Limit/class Of Fit D5, D6
Thread Pitch 2 mm
Thread Size M16 x 2
Thread Standard Metric Coarse
Usable Length 1.929"

Shipping Info:

Ship weight (kg) 0.04
Ship height (cm)2.54
Ship length (cm)11
Ship width (cm)2.54
Country of OriginIN

Product Variants

ProductModelThread SizeThread DirectionThread LimitOverall LengthTap Finish75% Thread Drill SizeTap MaterialCoolant FedPrice
WALTER TOOLS A2340876-UNF0 Spiral Flute Tap, #0-80 Thread Size, 5.50 mm Thread Length, 41.30 mm Length, Ticn | CU9CWM 427T39 A2340876-UNF0#0-80Right HandH141.3 mmTiCN1.2 mmHigh Speed SteelNon Coolant Through€117.00
WALTER TOOLS A2340806-UNF0 Spiral Flute Tap, #0-80 Thread Size, 5.50 mm Thread Length, 41.30 mm Length, Ticn | CU9CWN 427T32 A2340806-UNF0#0-80Right HandH141.3 mmTiCN1.2 mmHigh Speed SteelNon Coolant Through€103.06
WALTER TOOLS 224101-UNJC10 Spiral Flute Tap, #10-24 Thread Size, 13.50 mm Thread Length, 70 mm Length | CU9CWT 427C96 224101-UNJC10#10-24Right Hand3B70 mmBright#25High Speed SteelNon Coolant Through€132.77
WALTER TOOLS 224164-UNC10 Spiral Flute Tap, #10-24 Thread Size, 16 mm Thread Length, 70 mm Length | CU9CWU 427D31 224164-UNC10#10-24Right HandH2, H370 mmBright#25High Speed SteelNon Coolant Through€82.98
WALTER TOOLS 22416-UNC10 Spiral Flute Tap, #10-24 Thread Size, 16 mm Thread Length, 70 mm Length, Pipe | CU9CWV 427D37 22416-UNC10#10-24Right HandH3, H470 mmBright#25High Speed SteelNon Coolant Through€68.63
WALTER TOOLS 224102-UNC10 Spiral Flute Tap, #10-24 Thread Size, 16 mm Thread Length, 70 mm Length, Pipe | CU9CWW 427D04 224102-UNC10#10-24Right HandH3, H470 mmBright#25High Speed SteelNon Coolant Through€68.63
WALTER TOOLS P22509-UNC10 Spiral Flute Tap, #10-24 Thread Size, 8 mm Thread Length, 70 mm Length | CU9CWY 428Z45 P22509-UNC10#10-24Right HandH2, H370 mm-#25High Speed SteelNon Coolant Through€50.64
