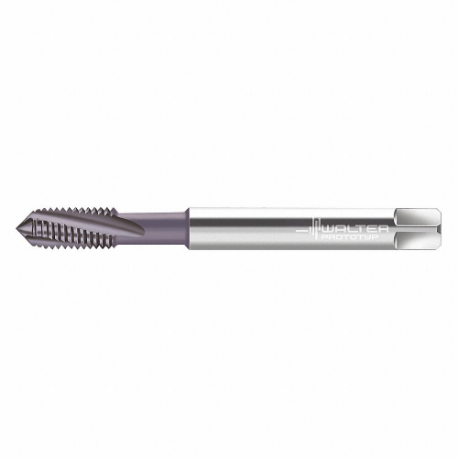

WALTER TOOLS 2340663-UNJF1/4 5344189 Spiral Flute Tap, 1/4-28 Thread Size, 15 mm Thread Length, 80 mm Length, Acn
Item: CU9DHDModel: 2340663-UNJF1/4Cross Ref: 427F15 / 5344189
7 In Stock
UNJF 1/4-28
0.984"
Ships within 2 days via
€150.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 5.7 mm |
| 65% Thread Drill Size | 7/32" |
| 75% Thread Drill Size | 5.45 mm |
| Clamping Width | 0.217" |
| Class Of Fit | Class 3B |
| Connection Dia. | 0.276" |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.22" |
| Driving Square Length | 0.315" |
| Extended Neck | Yes |
| Features | For Long Chipping Materials |
| Finish | AlCrN |
| Functional Length | 3.15" |
| Helix Angle | 15° |
| Material Grade-machining | Grade ACN |
| Measurement System | Fractional Inch |
| No. Of Flutes | 3 |
| No. Of Grooves | 3 |
| Overall Length | 80 mm |
| Primary Material Application | Nickel, Titanium |
| Primary Material Application Iso Code | S |
| Shank Dia. | 7 mm |
| Shank Length | 55 mm |
| Shank Type-machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 5.5 mm |
| System Of Measurement | Imperial |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | AlCrN |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 2184-1 |
| Tap Style | Spiral Flute |
| Tap Thread Size | 1/4"-28 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 15 mm |
| Thread Limit | 3B |
| Thread Limit/class Of Fit | 3B, 3B |
| Thread Size | 1/4"-28 |
| Thread Standard | Fine |
| Thread Type | UNJF |
| Threads Per Inch | 28 |
| Usable Length | 0.984" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Thread Size | Thread Length | Thread Direction | Thread Limit | Overall Length | Tap Finish | 75% Thread Drill Size | Tap Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A2340876-UNF0 | #0-80 | 5.5 mm | Right Hand | H1 | 41.3 mm | TiCN | 1.2 mm | High Speed Steel | €129.31 | |
 |
A2340806-UNF0 | #0-80 | 5.5 mm | Right Hand | H1 | 41.3 mm | TiCN | 1.2 mm | High Speed Steel | €116.12 | |
 |
224101-UNJC10 | #10-24 | 13.5 mm | Right Hand | 3B | 70 mm | Bright | #25 | High Speed Steel | €154.44 | |
 |
224164-UNC10 | #10-24 | 16 mm | Right Hand | H2, H3 | 70 mm | Bright | #25 | High Speed Steel | €96.88 | |
 |
22416-UNC10 | #10-24 | 16 mm | Right Hand | H3, H4 | 70 mm | Bright | #25 | High Speed Steel | €80.15 | |
 |
224102-UNC10 | #10-24 | 16 mm | Right Hand | H3, H4 | 70 mm | Bright | #25 | High Speed Steel | €87.24 | |
 |
P22509-UNC10 | #10-24 | 8 mm | Right Hand | H2, H3 | 70 mm | - | #25 | High Speed Steel | €59.04 |
