MCKINNEY Door and Butt Hinges
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1| Style | Model | Mounting | Bearing Type | Door Leaf Width | Frame Leaf Width | Door Leaf Height | Material | Range Of Motion | Load Capacity | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 3 1/2 T2895 US4 5/8RC NL | Flushed | Plain | 3 1/2" | 1 1/4" | 3 1/2" | Steel | 270° | 150 lbs. | 1 | €53.26 | |
| B | 55497 | Flushed | Plain | 4" | 1 11/16" | 4" | Steel | 270° | 150 lbs. | 1 | €21.95 | |
| C | 55327 | Flushed | Plain | 3 1/2" | 1 7/16" | 3 1/2" | Steel | 270° | 150 lbs. | 1 | €22.47 | |
| D | 55569 | Flushed | Oil Impregnated | 4" | 1 11/16" | 4" | Steel | 270° | 150 lbs. | 1 | €25.71 | |
| E | 3 1/2 T2895 US15 5/8RC NL | Flushed | Plain | 3 1/2" | 1 1/4" | 3 1/2" | Steel | 270° | 150 lbs. | 1 | €53.26 | |
| F | 3 1/2 T2895 US15 1/4RC NL | Flushed | Plain | 3 1/2" | 1 1/4" | 3 1/2" | Steel | 270° | 150 lbs. | 1 | €53.26 | |
| C | 55499 | Flushed | Plain | 4" | 1 11/16" | 4" | Steel | 270° | 150 lbs. | 1 | €22.12 | |
| G | 55391 | Flushed | Oil Impregnated | 3 1/2" | 1 7/16" | 3 1/2" | Steel | 270° | 150 lbs. | 1 | €25.71 | |
| H | 55395 | Flushed | Oil Impregnated | 3 1/2" | 1 7/16" | 3 1/2" | Steel | 270° | 150 lbs. | 1 | €25.71 | |
| I | 58845 | Flushed | Plain | 3 1/2" | 1 7/16" | 3 1/2" | Stainless Steel | 270° | 150 lbs. | 1 | €27.89 | |
| J | 55389 | Flushed | Oil Impregnated | 3 1/2" | 1 7/16" | 3 1/2" | Steel | 270° | 150 lbs. | 1 | €35.98 | |
| K | 55333E | Flushed | Plain | 3 1/2" | 1 7/16" | 3 1/2" | Steel | 270° | 150 lbs. | 1 | €21.85 | |
| L | 3 1/2 T2895 US4 1/4RC NL | Flushed | Plain | 3 1/2" | 1 1/4" | 3 1/2" | Steel | 270° | 150 lbs. | 1 | €53.26 | |
| M | 3 1/2 T2895 10BE 5/8RC NL | Flushed | Plain | 3 1/2" | 1 1/4" | 3 1/2" | Steel | 270° | 150 lbs. | 1 | €53.26 | |
| N | 55393 | Flushed | Oil Impregnated | 3 1/2" | 1 7/16" | 3 1/2" | Steel | 270° | 150 lbs. | 1 | €16.15 | |
| O | 4 T2895 U10BE 1/4RC NL | Flushed | Plain | 4" | 1 1/4" | 4" | Steel | 270° | 150 lbs. | 1 | €53.26 | |
| P | 4 T2895 US4 1/4RC NL | Flushed | Plain | 4" | 1 1/4" | 4" | Steel | 270° | 150 lbs. | 1 | €53.26 | |
| Q | 4 T2895 US15 1/4RC NL | Flushed | Plain | 4" | 1 1/4" | 4" | Steel | 270° | 150 lbs. | 1 | €53.26 | |
| R | 4 1/2X4 1/2 MPB79 26D | Full Mortise | Plain | 4 1/2" | 1 15/16" | 4 1/2" | Steel | 270° | 250 lbs. | 1 | €13.17 | |
| S | 4 1/2X4 1/2 MPB99 32D NRP | Full Mortise | Ball | 2 1/4" | 2 1/4" | 4 1/2" | - | 270° | 250 lbs. | 1 | €46.79 | |
| R | 4 1/2X4 1/2 MP79 26D | Full Mortise | Plain | 4 1/2" | 1 15/16" | 4 1/2" | Steel | 270° | 250 lbs. | 1 | €15.18 | |
| T | 4 1/2X4 1/2 MPS60 26D | Full Mortise | Plain | 4 1/2" | 1 7/8" | 4 1/2" | Steel | 180° | 250 lbs. | 1 | €27.40 | |
| R | 4 1/2X4 1/2 MPB79 26D NRP | Full Mortise | Plain | 4 1/2" | 1 15/16" | 4 1/2" | Steel | 270° | 250 lbs. | 1 | €16.25 | |
| S | 4 1/2X4 1/2 MPB68 26D | Full Mortise | Ball | 4 1/2" | 1 15/16" | 4 1/2" | Stainless Steel | 270° | 250 lbs. | 1 | €37.24 | |
| S | 4 1/2X4 1/2 MPB68 26D NRP | Full Mortise | Ball | 4 1/2" | 1 15/16" | 4 1/2" | Steel | 270° | 250 lbs. | 1 | €41.70 | |
| U | 4 1/2X4 1/2 MPB91 32D NRP | Full Mortise | Plain | 4 1/2" | 1 15/16" | 4 1/2" | Stainless Steel | 270° | 250 lbs. | 1 | €36.17 | |

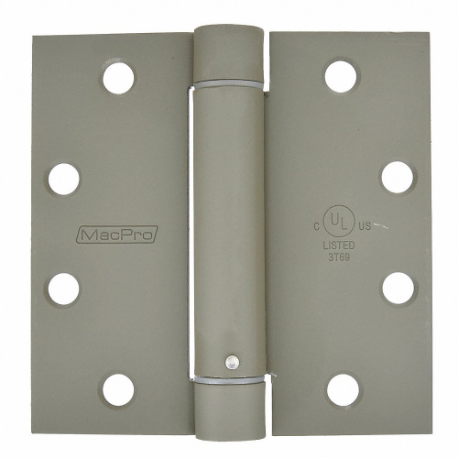

| V | 4 1/2X4 1/2 MPB79 P | Full Mortise | Plain | 4 1/2" | 1 15/16" | 4 1/2" | Steel | 270° | 250 lbs. | 1 | €12.93 | |
| S | 4 1/2X4 1/2 MPB99 32D | Full Mortise | Ball | 4 1/2" | 1 15/16" | 4 1/2" | Stainless Steel | 270° | 250 lbs. | 1 | €57.22 | |
| W | 4 1/2X4 1/2 MP79 P | Full Mortise | Plain | 4 1/2" | 1 15/16" | 4 1/2" | Steel | 270° | 250 lbs. | 1 | €10.99 | |
| T | 4 1/2X4 1/2 MP79 26D NRP | Full Mortise | Plain | 4 1/2" | 1 15/16" | 4 1/2" | Steel | 270° | 250 lbs. | 1 | €14.14 | |
| R | 4 1/2X4 1/2 MPB679 26D | Full Mortise | Plain | 2 1/4" | 1 7/8" | 4 1/2" | Steel | 180° | 250 lbs. | 3 | €61.67 | |

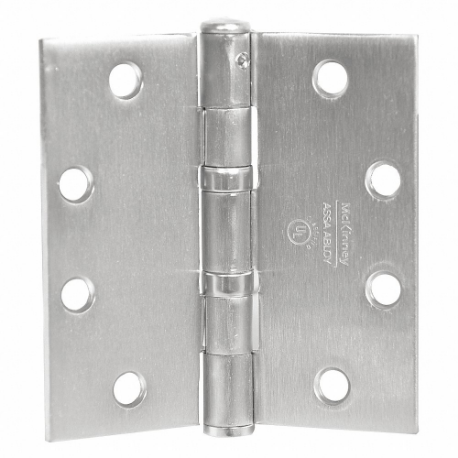

| X | TA2314 4 1/2 X 4 1/2 32D | Full Mortise | Oil Impregnated | 4 1/2" | - | 4 1/2" | Brass, Stainless Steel | 270° | 600 lbs. | 1 | €66.74 | |
| S | 5X4-1/2 MPB68 26D | Full Mortise | Ball | 4 1/2" | 1 13/16" | 5" | Steel | 270° | 250 lbs. | 1 | €48.09 | |
| U | 5X4 1/2 MPB99 32D NRP | Full Mortise | Ball | 2 1/4" | 2 1/4" | 5" | - | 270° | 250 lbs. | 1 | €71.18 | |
| V | 4 1/2X4 1/2 MPS60 P | Full Mortise | Plain | 4 1/2" | 1 7/8" | 4 1/2" | Steel | 180° | 250 lbs. | 1 | €25.17 | |
| U | 4 1/2X4 1/2 MPB91 32D | Full Mortise | Ball | 2 1/4" | 2 1/4" | 4 1/2" | Stainless Steel | 270° | 250 lbs. | 1 | €29.91 | |
| T | 4 1/2X4 1/2 MPB79 P NRP | Full Mortise | Plain | 4 1/2" | 1 15/16" | 4 1/2" | Steel | 270° | 250 lbs. | 1 | €16.36 | |
| U | 5X4-1/2 MPB99 32D | Full Mortise | Ball | 4 1/2" | 1 13/16" | 5" | Stainless Steel | 270° | 250 lbs. | 1 | €67.85 | |
| Y | 3½x3 1/2 1414 26D | Screw On | Sleeve | 1 1/4" | 1 1/4" | 3 1/2" | Steel | 180° | 150 lbs. | 1 | €7.10 | |

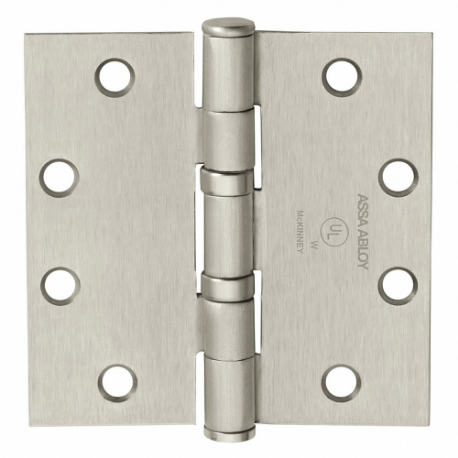

| Z | 4 1/2X4 1/2 TA2714 15 | Screw On | Oil Impregnated | 4 1/2" | 1 15/16" | 4 1/2" | Steel | - | 250 lbs. | 1 | €28.88 | |
| A1 | 4 1/2X4 1/2 TA2714 26D | Screw On | Oil Impregnated | 4 1/2" | 1 15/16" | 4 1/2" | Steel | - | 250 lbs. | 1 | €16.99 | |

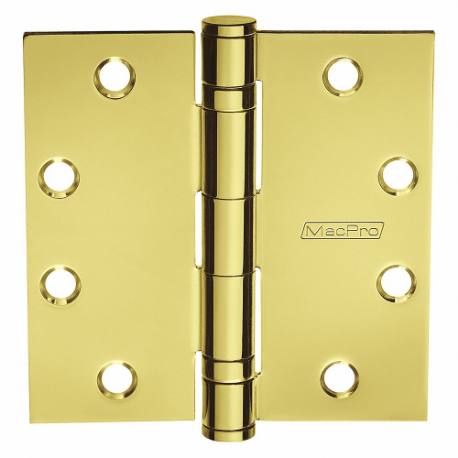

| B1 | 4½x4½ MPB79 3 | Screw On | Plain | 4 1/2" | 1 15/16" | 4 1/2" | Steel | 225° | 250 lbs. | 1 | €19.20 | |
| C1 | 3½x3½ 1458 26D | Screw On | Sleeve | 1 1/4" | 1 1/4" | - | Steel | 180° | 150 lbs. | 1 | €7.72 | |
| D1 | 4x4 1400 26D | Screw On | Sleeve | 1 1/2" | 1 1/2" | 4" | Steel | 180° | 150 lbs. | 1 | €6.97 | |
| E1 | 3½x3½ 1400 26D | Screw On | Sleeve | 1 1/4" | 1 1/4" | 3 1/2" | Steel | 180° | 150 lbs. | 1 | €6.17 | |
| F1 | 3½x3½ 1458 3 | Screw On | Sleeve | 1 1/4" | 1 1/4" | 3 1/2" | Steel | 180° | 150 lbs. | 1 | €10.10 | |

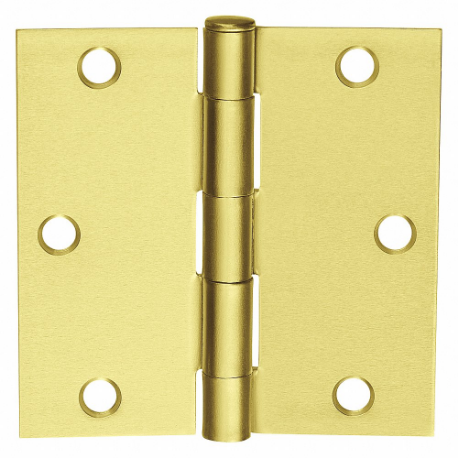

| G1 | 3 ½ 3 ½ 1400 4 | Screw On | Sleeve | 1 1/4" | 1 1/4" | 3 1/2" | Steel | 180° | 150 lbs. | 1 | €7.48 |
