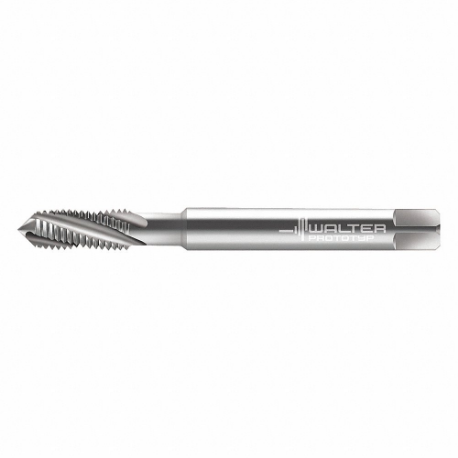

WALTER TOOLS 234104-UNF8 5078601 Spiral Flute Tap, #8-36 Thread Size, 13 mm Thread Length, 63 mm Length
Item: CU9DCJModel: 234104-UNF8Cross Ref: 427F36 / 5078601
7 In Stock
UNF #8-36
1.654"
Ships within 2 days via
13.00% off
€91.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | #27 |
| 65% Thread Drill Size | 9/64" |
| 75% Thread Drill Size | #29 |
| Clamping Width | 0.134" |
| Class Of Fit | Class 3B |
| Connection Dia. | 0.177" |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.138" |
| Driving Square Length | 0.236" |
| Extended Neck | Yes |
| Features | For Long Chipping Materials |
| Finish | Bright Uncoated |
| Functional Length | 2 12/25" |
| Helix Angle | 25° |
| No. Of Flutes | 3 |
| No. Of Grooves | 3 |
| Overall Length | 63 mm |
| Primary Material Application | Nickel, Titanium |
| Primary Material Application Iso Code | S |
| Secondary Material Application | Steel |
| Secondary Material Application Iso Code | P |
| Shank Dia. | 4.5 mm |
| Shank Length | 21 mm |
| Shank Type-machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 3.4 mm |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 2184-1 |
| Tap Style | Spiral Flute |
| Tap Thread Size | #8-36 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 13 mm |
| Thread Limit | H2 |
| Thread Limit/class Of Fit | H2, 3B |
| Thread Size | #8-36 |
| Thread Standard | Fine |
| Thread Type | UNF |
| Threads Per Inch | 36 |
| Usable Length | 1.654" |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 6.3 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Thread Size | Thread Length | Thread Direction | Thread Limit | Overall Length | Tap Finish | 75% Thread Drill Size | Tap Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A2340876-UNF0 | #0-80 | 5.5 mm | Right Hand | H1 | 41.3 mm | TiCN | 1.2 mm | High Speed Steel | €129.31 | |
 |
A2340806-UNF0 | #0-80 | 5.5 mm | Right Hand | H1 | 41.3 mm | TiCN | 1.2 mm | High Speed Steel | €116.12 | |
 |
224101-UNJC10 | #10-24 | 13.5 mm | Right Hand | 3B | 70 mm | Bright | #25 | High Speed Steel | €154.44 | |
 |
224164-UNC10 | #10-24 | 16 mm | Right Hand | H2, H3 | 70 mm | Bright | #25 | High Speed Steel | €96.88 | |
 |
22416-UNC10 | #10-24 | 16 mm | Right Hand | H3, H4 | 70 mm | Bright | #25 | High Speed Steel | €80.15 | |
 |
224102-UNC10 | #10-24 | 16 mm | Right Hand | H3, H4 | 70 mm | Bright | #25 | High Speed Steel | €87.24 | |
 |
P22509-UNC10 | #10-24 | 8 mm | Right Hand | H2, H3 | 70 mm | - | #25 | High Speed Steel | €59.04 |
