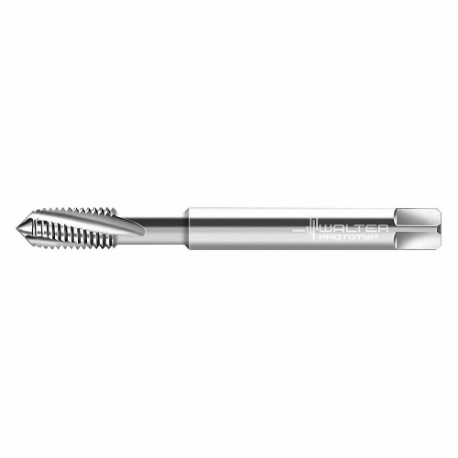

WALTER TOOLS 23416-UNF6 Spiral Flute Tap, #6-40 Thread Size, 12 mm Thread Length, 56 mm Length | CU9DBH 427F56

WALTER TOOLS 23416-UNF6 5078607 Spiral Flute Tap, #6-40 Thread Size, 12 mm Thread Length, 56 mm Length

Item: CU9DBHModel: 23416-UNF6Cross Ref: 427F56 / 5078607
7 In Stock

Ships within 2 days via

€86.24 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Spiral Flute Tap
55% Thread Drill Size #31
65% Thread Drill Size #32
75% Thread Drill Size #33
Clamping Width 0.118"
Class Of Fit Class 2B
Connection Dia. 0.157"
Coolant Fed Non Coolant Through
Drill Bit Size 0.116"
Driving Square Length 0.236"
Extended Neck Yes
Features For Long-Chipping Materials, Recommended With Oil
Finish Bright Uncoated
Functional Length 2.205"
Helix Angle 15°
No. Of Flutes 3
No. Of Grooves 3
Overall Length 56 mm
Primary Material Application Nickel, Steel, Titanium
Primary Material Application Iso Code P, S
Secondary Material Application Aluminum, Brass, Bronze, Copper
Secondary Material Application Iso Code N
Shank Dia. 4 mm
Shank Length 21 mm
Shank Type-machining Straight
Spiral Direction Right Hand
Square Size 3 mm
Tap Chamfer Modified Bottoming, Semi Bottoming
Tap Finish Bright
Tap Material High Speed Steel
Tap Shank Standard DIN 2184-1
Tap Style Spiral Flute
Tap Thread Size #6-40
Tap Type Spiral Flute
Thread Direction Right Hand
Thread Length 12 mm
Thread Limit H2, H3
Thread Limit/class Of Fit H2, 2B, H3, 2B
Thread Size #6-40
Thread Standard Fine
Thread Type UNF
Threads Per Inch 40
Usable Length 1.378"

Shipping Info:

Ship height (cm)2.54
Ship length (cm)5.6
Ship width (cm)2.54
Country of OriginDE

Product Variants

ProductModelThread SizeThread LengthThread DirectionThread LimitOverall LengthTap Finish75% Thread Drill SizeTap MaterialPrice
WALTER TOOLS A2340876-UNF0 Spiral Flute Tap, #0-80 Thread Size, 5.50 mm Thread Length, 41.30 mm Length, Ticn | CU9CWM 427T39 A2340876-UNF0#0-805.5 mmRight HandH141.3 mmTiCN1.2 mmHigh Speed Steel€129.31
WALTER TOOLS A2340806-UNF0 Spiral Flute Tap, #0-80 Thread Size, 5.50 mm Thread Length, 41.30 mm Length, Ticn | CU9CWN 427T32 A2340806-UNF0#0-805.5 mmRight HandH141.3 mmTiCN1.2 mmHigh Speed Steel€116.12
WALTER TOOLS 224101-UNJC10 Spiral Flute Tap, #10-24 Thread Size, 13.50 mm Thread Length, 70 mm Length | CU9CWT 427C96 224101-UNJC10#10-2413.5 mmRight Hand3B70 mmBright#25High Speed Steel€154.44
WALTER TOOLS 224164-UNC10 Spiral Flute Tap, #10-24 Thread Size, 16 mm Thread Length, 70 mm Length | CU9CWU 427D31 224164-UNC10#10-2416 mmRight HandH2, H370 mmBright#25High Speed Steel€96.88
WALTER TOOLS 22416-UNC10 Spiral Flute Tap, #10-24 Thread Size, 16 mm Thread Length, 70 mm Length, Pipe | CU9CWV 427D37 22416-UNC10#10-2416 mmRight HandH3, H470 mmBright#25High Speed Steel€80.15
WALTER TOOLS 224102-UNC10 Spiral Flute Tap, #10-24 Thread Size, 16 mm Thread Length, 70 mm Length, Pipe | CU9CWW 427D04 224102-UNC10#10-2416 mmRight HandH3, H470 mmBright#25High Speed Steel€87.24
WALTER TOOLS P22509-UNC10 Spiral Flute Tap, #10-24 Thread Size, 8 mm Thread Length, 70 mm Length | CU9CWY 428Z45 P22509-UNC10#10-248 mmRight HandH2, H370 mm-#25High Speed Steel€59.04
