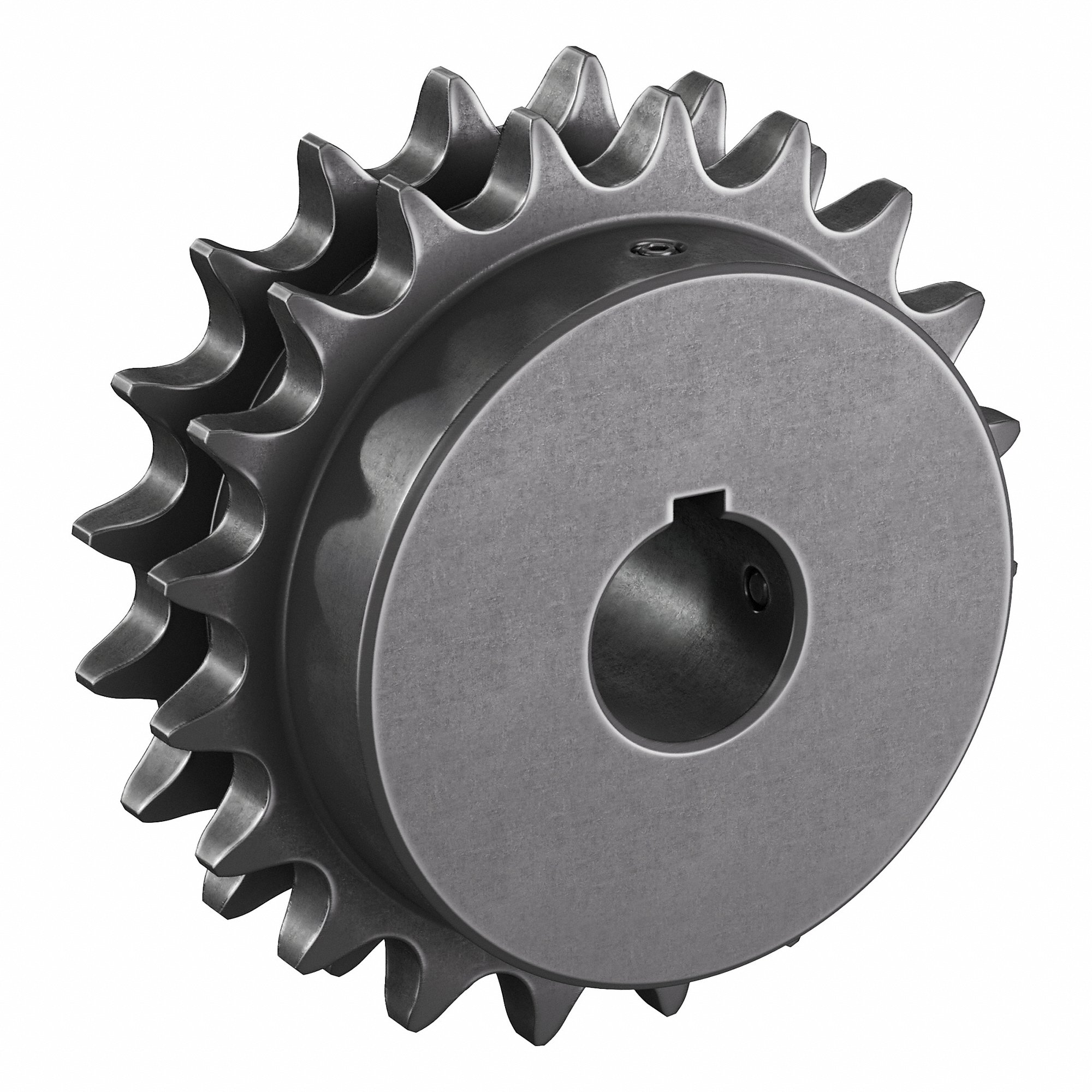

TRITAN D50BS20H X 1 Roller Chain Sprocket, 1 Inch Bore Dia, 20 Teeth, Steel
Item: CU6YZBModel: D50BS20H X 1Cross Ref: 55WE72
7 In Stock
1"
2
4.32"
Ships within 2 days via
€119.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1" |
| Bore Type | Fixed |
| Chain Number | 50 |
| Finish | Black Oxide |
| For Chain Pitch | 5/8" |
| For No. Of Strands | 2 |
| Hub Dia. | 3" |
| Hub Projection | 0.705" |
| Hub Type | One Side |
| Included | Set Screws |
| Keyway | Yes |
| Keyway Width | 1/4" |
| Length Through Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Dia. | 1" |
| No. Of Teeth | 20 |
| Outside Dia. | 4 8/25" , 4.32" |
| Pitch Dia. | 3.995" |
| Roller Chain Sprockets | Roller Chain Sprocket |
| Set Screw Location | Setscrews Are Placed Over The Keyway And at 90° To The Keyway |
| Set Screw Size | 5/16" |
| Teeth Heat Treatment | Hardened Teeth |
| Tooth Width | 0.332" |
| Width Across Tooth Sets | 1.045" |
Shipping Info:
| Ship weight (kg) | 1.92 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.97 |
| Ship width (cm) | 10.97 |
| Country of Origin | CN |
Product Variants
| Product | Model | No. Of Teeth | Pitch Dia. | Length Through Bore | Bore Dia. | Max. Bore Dia. | Hub Dia. | For Chain Number | Keyway | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D80BS12H X 1 1/2 | 12 | 3.864" | 2 1/2" | 1 1/2" | 1 1/2" | 2 11/16" | 80-2 | Yes | €172.85 | |
 |
D60BS13H X 1 1/2 | 13 | 3.134" | 2 1/8" | 1 1/2" | 1 1/2" | 2 1/4" | 60-2 | Yes | €99.42 | |
 |
D80BS13H X 1 1/2 | 13 | 4.179" | 2 1/2" | 1 1/2" | 1 1/2" | 3.062" | 80-2 | Yes | €163.29 | |
 |
D60BS14H X 1 1/2 | 14 | 3.371" | 2 1/8" | 1 1/2" | 1 1/2" | 2 1/2" | - | Yes | €109.99 | |
 |
60BS16H X 1 1/2 | 16 | 3.845" | 1 1/4" | 1 1/2" | 1 1/2" | 3.062" | 60.0 | Yes | €62.10 | |
|
50BS17H X 1 1/2 | 17 | 3.401" | 1" | 1 1/2" | 1 1/2" | 2 11/16" | 50.0 | Yes | €39.29 | |
|
80BS17H X 1 1/2 | 17 | 5.442" | 1 1/2" | 1 1/2" | 1 1/2" | 4" | 80.0 | Yes | €146.03 |
