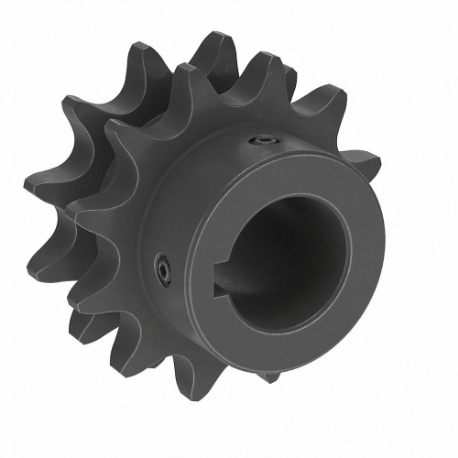

TRITAN Fixed Bore Roller Chain Sprockets
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R| Style | Model | Bore Dia. | Outside Dia. | Pitch Dia. | For Chain Number | For Chain Pitch | Keyway Width | Hub Dia. | Keyway | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 25BS18H X 5/16 | 0.312" | 1.568" | 1 11/25" | 25.0 | 1/4" | Not Applicable | 1 1/8" | No | €19.79 | |
| B | 25BS12H X 5/16 | 0.312" | 1.083" | 0.966" | 25.0 | 1/4" | Not Applicable | 5/8" | No | €16.31 | |
| B | 25BS22H X 5/16 | 0.312" | 1.889" | 1.757" | 25.0 | 1/4" | Not Applicable | 1.438" | No | €30.78 | |

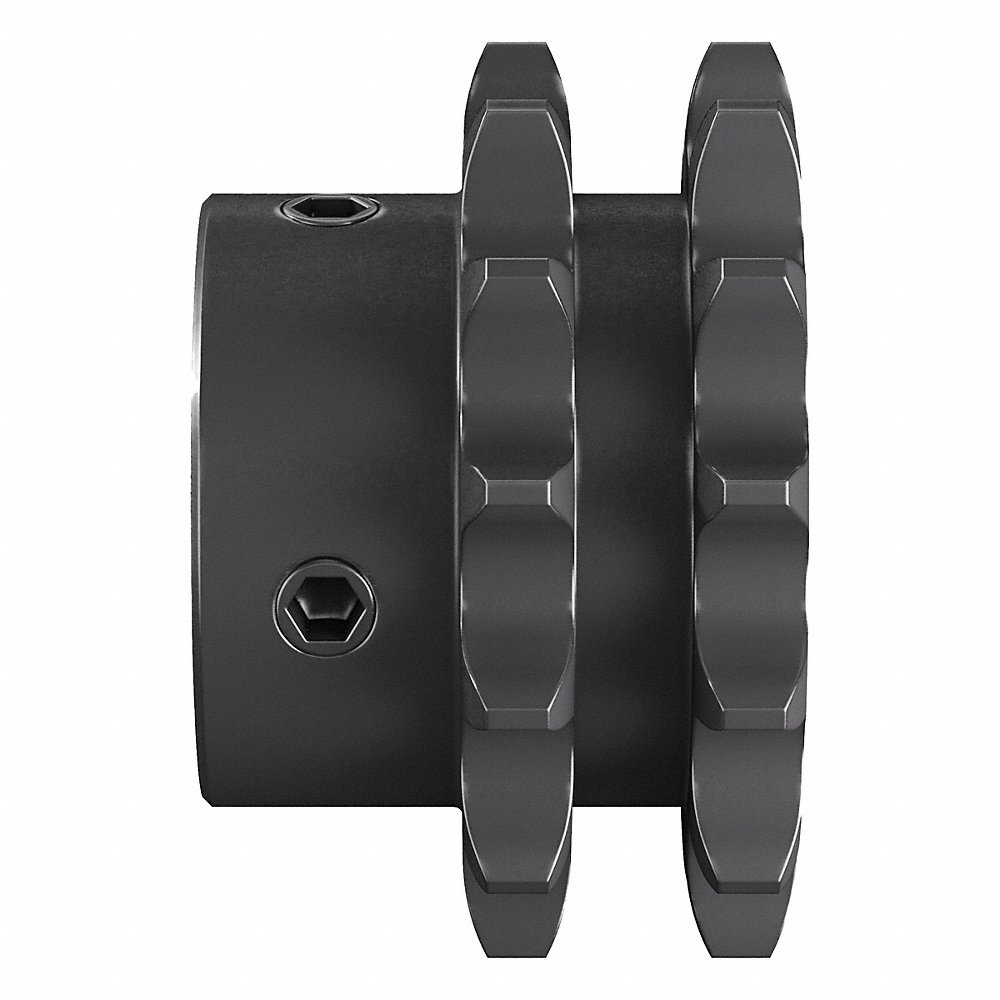

| C | D60BS20H X 1 1/2 | 1 1/2" | 5.19" | 4.794" | 60-2 | 3/4" | 3/8" | 3 3/4" | Yes | €174.54 | |
| A | 50BS30H X 1 1/2 | 1 1/2" | 6 8/25" | 5.979" | 50.0 | 5/8" | 3/8" | 3 1/4" | Yes | €82.89 | |
| D | D80BS13H X 1 1/2 | 1 1/2" | 4.66" | 4.179" | 80-2 | 1" | 3/8" | 3.062" | Yes | €155.24 | |
| E | D60BS14H X 1 1/2 | 1 1/2" | 3.74" | 3.371" | - | 3/4" | 3/8" | 2 1/2" | Yes | €97.14 | |
| A | 60BS16H X 1 1/2 | 1 1/2" | 4.22" | 3.845" | 60.0 | 3/4" | 3/8" | 3.062" | Yes | €54.57 | |
| A | 50BS17H X 1 1/2 | 1 1/2" | 3 18/25" | 3.401" | 50.0 | 5/8" | 3/8" | 2 11/16" | Yes | €33.14 | |
| A | 80BS17H X 1 1/2 | 1 1/2" | 5.95" | 5.442" | 80.0 | 1" | 3/8" | 4" | Yes | €130.13 | |
| F | D80BS18H X 1 1/2 | 1 1/2" | 6.27" | 5.759" | 80-2 | 1" | 3/8" | 4 5/8" | Yes | €295.78 | |
| A | 60BS40 X 1 1/2 | 1 1/2" | 9.98" | 9 14/25" | 60.0 | 3/4" | 3/8" | 4 1/4" | Yes | €216.37 | |
| A | 40BS40 X 1 1/2 | 1 1/2" | 6.65" | 6.373" | 40.0 | 1/2" | 3/8" | 3 1/2" | Yes | €74.37 | |
| A | 60BS38 X 1 1/2 | 1 1/2" | 9 1/2" | 9.083" | 60.0 | 3/4" | 3/8" | 4 1/4" | Yes | €194.31 | |
| A | 50BS35H X 1 1/2 | 1 1/2" | 7 8/25" | 6.972" | 50.0 | 5/8" | 3/8" | 3 1/4" | Yes | €103.88 | |
| A | 40BS34H X 1 1/2 | 1 1/2" | 5.7" | 5.412" | 40.0 | 1/2" | 3/8" | 3 1/4" | Yes | €65.30 | |
| G | D40BS30 X 1 1/2 | 1 1/2" | 5.06" | 4.783" | 40-2 | 1/2" | 3/8" | 3 1/4" | Yes | €117.17 | |
| H | D80BS12H X 1 1/2 | 1 1/2" | 4.33" | 3.864" | 80-2 | 1" | 3/8" | 2 11/16" | Yes | €151.97 | |
| A | 40BS32H X 1 1/2 | 1 1/2" | 5.38" | 5.101" | 40.0 | 1/2" | 3/8" | 3 1/4" | Yes | €62.85 | |
| I | D40BS23H X 1 1/2 | 1 1/2" | 3.94" | 3.672" | - | 1/2" | 3/8" | 3" | - | €80.33 | |
| A | 50BS22H X 1 1/2 | 1 1/2" | - | 4.392" | 50.0 | 5/8" | 3/8" | 3" | Yes | €56.36 | |
| A | 80BS22 X 1 1/2 | 1 1/2" | 7 14/25" | 7.027" | 80.0 | 1" | 3/8" | 4 1/4" | Yes | €181.49 | |
| A | 60BS27H X 1 1/2 | 1 1/2" | 6.87" | 6.461" | 60.0 | 3/4" | 3/8" | 4" | Yes | €115.45 | |
| A | 60BS23H X 1 1/2 | 1 1/2" | 5.91" | 5.508" | 60.0 | 3/4" | 3/8" | 4" | Yes | €98.99 | |
| J | D60BS13H X 1 1/2 | 1 1/2" | 3.49" | 3.134" | 60-2 | 3/4" | 3/8" | 2 1/4" | Yes | €86.95 | |
| K | D40BS19H X 1 1/2 | 1 1/2" | 3.3" | 3.038" | - | 1/2" | - | 2 1/2" | Yes | €66.46 | |
| A | 40BS21H X 1 1/2 | 1 1/2" | 3.62" | 3.355" | 40.0 | 1/2" | 3/8" | 2 3/4" | Yes | €35.54 | |
| A | 60BS25H X 1 1/2 | 1 1/2" | 6.39" | 5.984" | 60.0 | 3/4" | 3/8" | 4" | Yes | €112.56 | |
| A | 50BS26H X 1 1/2 | 1 1/2" | 5 13/25" | 5.185" | 50.0 | 5/8" | 3/8" | 3" | Yes | €72.24 | |
| A | 80BS26 X 1 1/2 | 1 1/2" | 8 21/25" | 8.296" | 80.0 | 1" | 3/8" | 4 3/4" | Yes | €220.42 | |
| A | 40BS20H X 1 1/2 | 1 1/2" | 3.46" | 3.196" | 40.0 | 1/2" | 3/8" | 2 5/8" | Yes | €30.20 | |
| A | 40BS26H X 1 1/2 | 1 1/2" | 4.42" | 4.148" | 40.0 | 1/2" | 3/8" | 3 1/4" | Yes | €49.51 | |
| A | 35BS27H X 1 1/4 | 1 1/4" | 3.43" | 3.23" | 35.0 | 3/8" | 1/4" | 2" | Yes | €36.51 | |
| A | 60BS27H X 1 1/4 | 1 1/4" | 6.87" | 6.461" | 60.0 | 3/4" | 1/4" | 4" | Yes | €119.32 | |
| A | 40BS36 X 1 1/4 | 1 1/4" | 6.02" | 5.737" | 40.0 | 1/2" | 1/4" | 3 1/4" | Yes | €69.13 | |
| A | 80BS28 X 1 1/4 | 1 1/4" | 9 12/25" | 8.931" | 80.0 | 1" | 1/4" | 4 3/4" | Yes | €239.32 | |
| A | 40BS28H X 1 1/4 | 1 1/4" | 4.74" | 4.466" | 40.0 | 1/2" | 1/4" | 3 1/4" | Yes | €57.51 | |
| L | D40BS30 X 1 1/4 | 1 1/4" | 5.06" | 4.783" | 40-2 | 1/2" | 1/4" | 3 1/4" | Yes | €117.17 | |
| A | 35BS30H X 1 1/4 | 1 1/4" | 3.79" | 3.588" | 35.0 | 3/8" | 1/4" | 2" | Yes | €41.44 | |
| A | 80BS30 X 1 1/4 | 1 1/4" | 10.11" | 9.567" | 80.0 | 1" | 1/4" | 4 3/4" | Yes | €268.40 | |
| A | 60BS32 X 1 1/4 | 1 1/4" | 8.07" | 7.652" | 60.0 | - | 1/4" | 4" | Yes | €166.14 | |
| A | 60BS34 X 1 1/4 | 1 1/4" | 8.54" | 8.129" | 60.0 | 3/4" | 1/4" | 4" | Yes | €174.34 | |
| A | 40BS35H X 1 1/4 | 1 1/4" | 5.86" | 5.578" | 40.0 | 1/2" | 1/4" | 3 1/4" | Yes | €65.93 | |
| A | 40BS25H X 1 1/4 | 1 1/4" | 4.26" | 3.989" | 40.0 | 1/2" | 1/4" | 3 1/4" | Yes | €47.19 | |
| A | 60BS36 X 1 1/4 | 1 1/4" | 9.02" | 8.606" | 60.0 | 3/4" | 1/4" | 4" | Yes | €171.44 | |
| D | D60BS17H X 1 1/4 | 1 1/4" | 4.46" | 4.082" | 60-2 | 3/4" | 1/4" | 3 1/4" | Yes | €136.53 | |
| A | 50BS38 X 1 1/4 | 1 1/4" | 7 23/25" | 7.569" | 50.0 | 5/8" | 1/4" | 3 1/4" | Yes | €130.49 | |
| A | 40BS40 X 1 1/4 | 1 1/4" | 6.65" | 6.373" | 40.0 | 1/2" | 1/4" | 3 1/2" | Yes | €74.37 | |
| A | 50BS45 X 1 1/4 | 1 1/4" | 9.31" | 8 24/25" | 50.0 | 5/8" | 1/4" | 3 3/4" | Yes | €161.69 | |
| A | 40BS26H X 1 1/4 | 1 1/4" | 4.42" | 4.148" | 40.0 | 1/2" | 1/4" | 3 1/4" | Yes | €49.49 | |
| M | 100BS19H X 1 1/4 | 1 1/4" | 8 6/25" | 7.595" | 100.0 | 1 1/4" | 1/4" | 4 1/2" | Yes | €290.51 | |
| A | 80BS24 X 1 1/4 | 1 1/4" | 8 1/5" | 7.661" | 80.0 | 1" | 1/4" | 4 1/4" | - | €201.77 | |
| N | D60BS15H X 1 1/4 | 1 1/4" | 3.98" | 3.608" | 60-2 | 3/4" | 1/4" | 2 3/4" | Yes | €105.32 | |
| A | 40BS38 X 1 1/4 | 1 1/4" | 6.33" | 6.054" | 40.0 | 1/2" | 1/4" | 3 1/4" | Yes | €70.90 | |
| A | 50BS32H X 1 1/4 | 1 1/4" | 6 18/25" | 6.376" | 50.0 | 5/8" | 1/4" | 3 1/4" | Yes | €93.66 | |

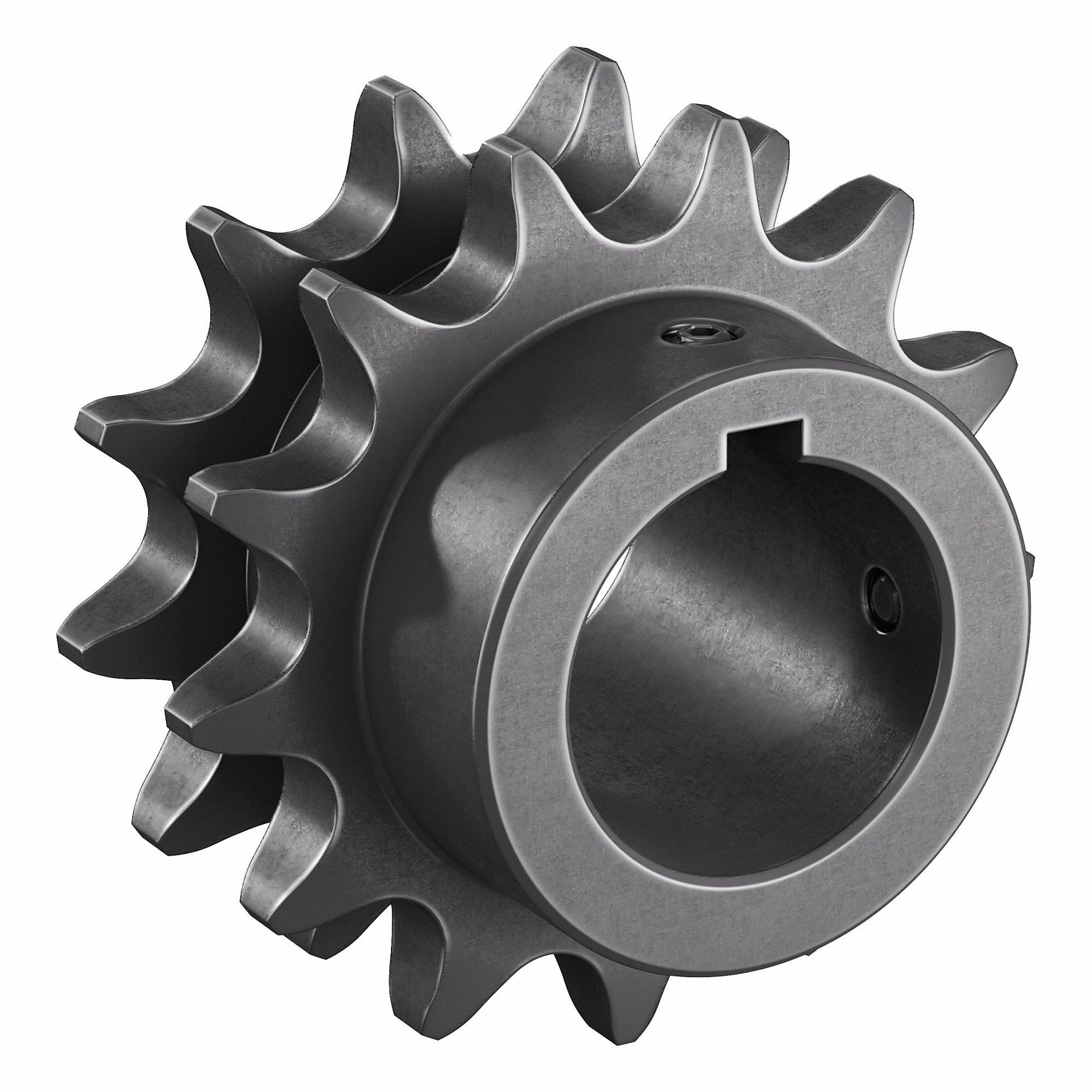

| O | D50BS13H X 1 1/4 | 1 1/4" | 2.91" | 2.612" | 50-2 | 5/8" | 1/4" | 1 7/8" | Yes | €82.08 | |
| P | D50BS14H X 1 1/4 | 1 1/4" | 3.11" | 2.803" | 50-2 | 5/8" | 1/4" | 2 1/8" | Yes | €83.86 | |
| A | 60BS30H X 1 1/4 | 1 1/4" | 7.59" | 7.175" | 60.0 | 3/4" | 1/4" | 4" | - | €137.03 | |

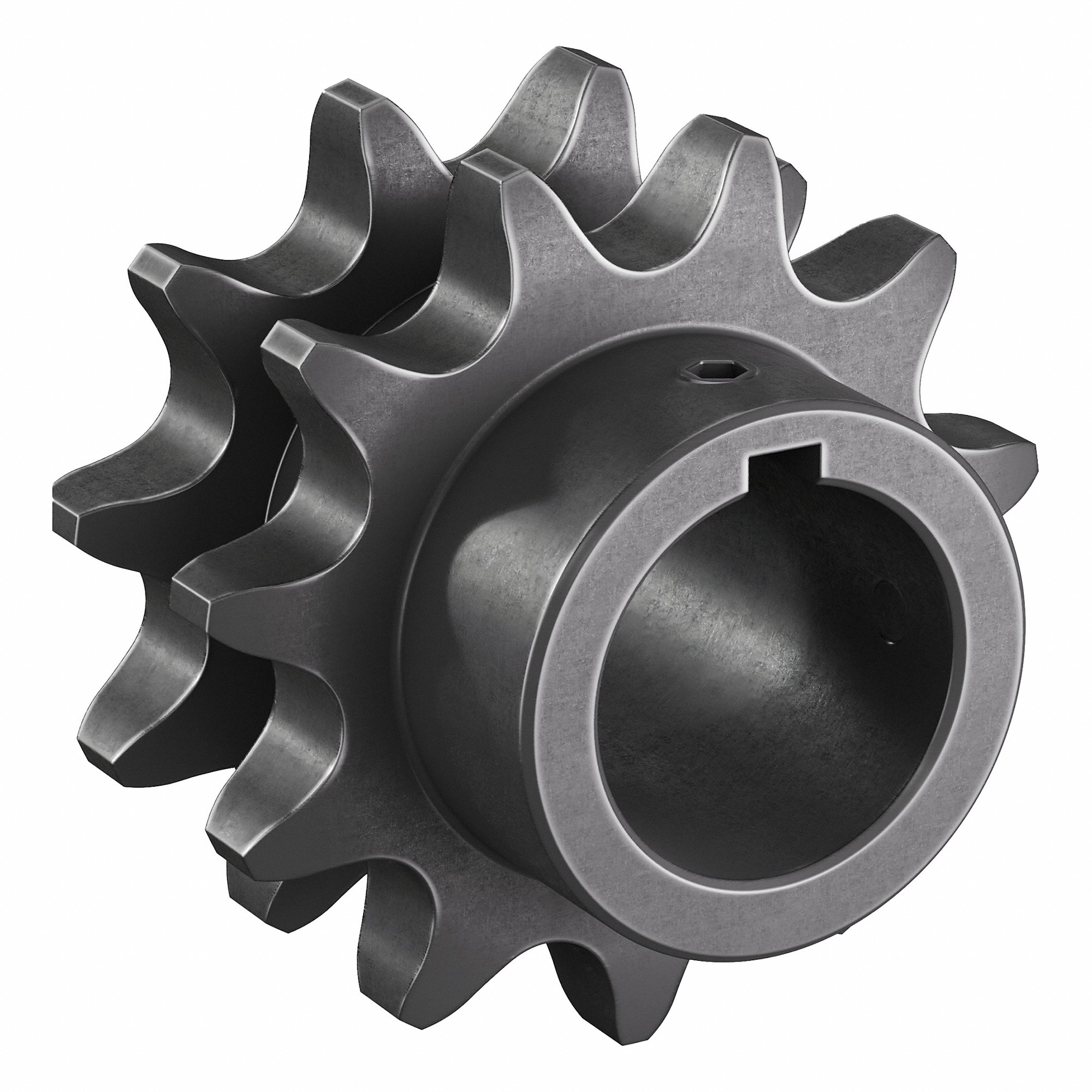

| Q | D60BS11H X 1 1/4 | 1 1/4" | 3" | 2.663" | 60-2 | 3/4" | 1/4" | 1 13/16" | Yes | €77.38 | |

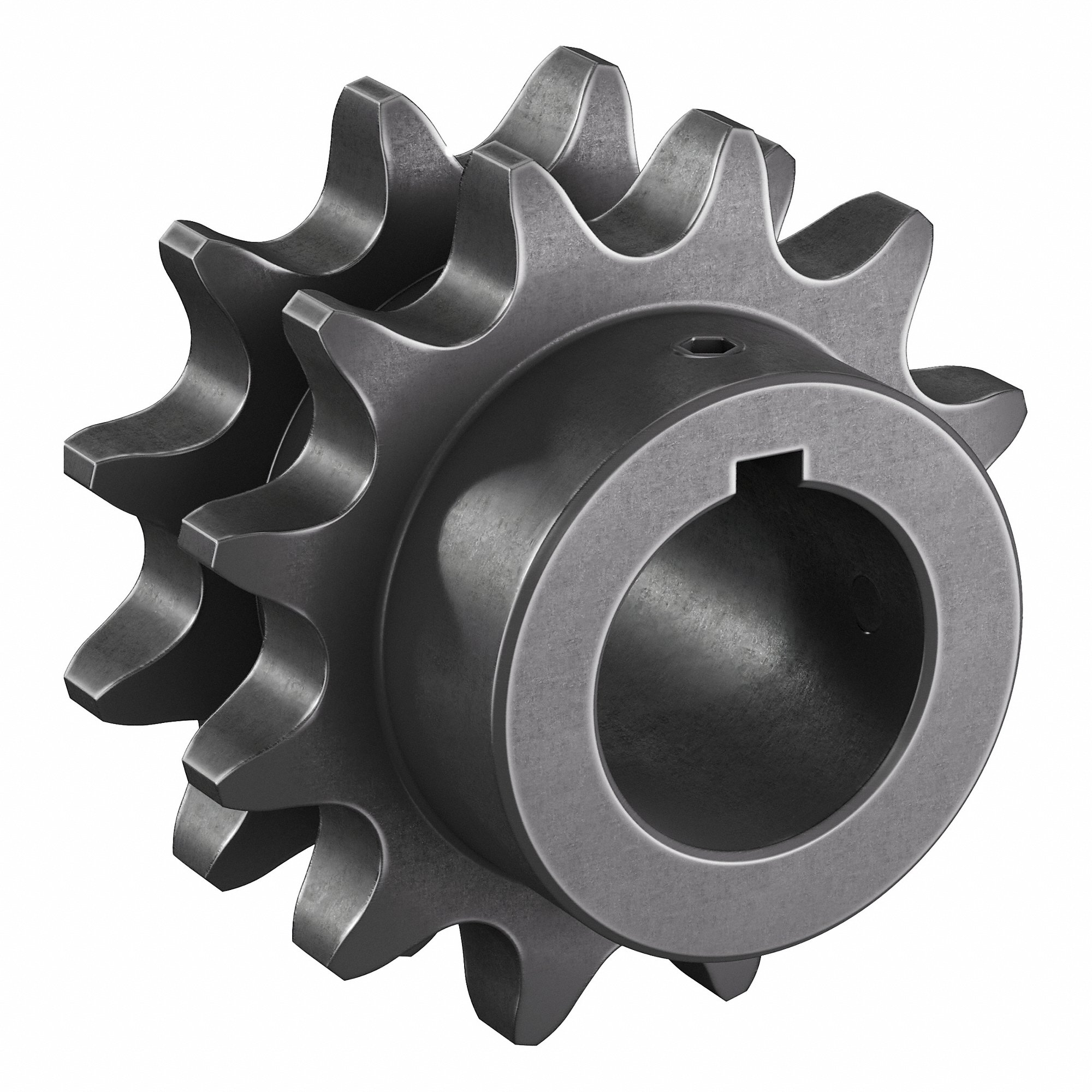

| R | D60BS12H X 1 1/4 | 1 1/4" | 3 1/4" | 2.898" | 60-2 | 3/4" | 1/4" | 2 1/16" | Yes | €80.42 | |
| A | 80BS16H X 1 1/4 | 1 1/4" | 5.63" | 5.126" | 80.0 | 1" | 1/4" | 4" | Yes | €108.65 |
