ANVIL Pipe Clamps


Anvil pipe clamps are designed for suspension of hot or cold pipelines where there is no need for insulation.

Filter

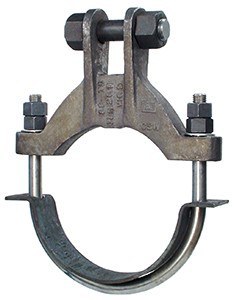

ANVIL FIG 246A

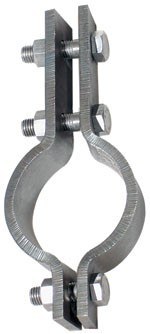

ANVIL FIG 295AB
ANVIL FIG 42SDC

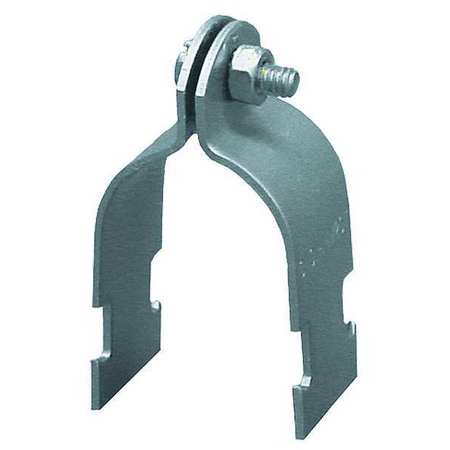

ANVIL FIG AS 1300ASD
ANVIL FIG AS 3138E
ANVIL FIG 224F
ANVIL FIG 295G

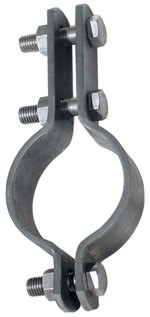

ANVIL FIG 295HH
ANVIL FIG 100I
ANVIL FIG 103J
ANVIL FIG 212K

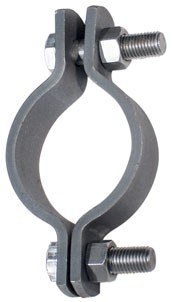

ANVIL FIG 216L

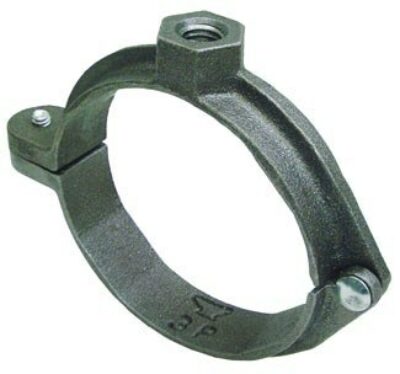

ANVIL FIG 138RM
StyleModelMaterialSizeWorking Temp.
A
FIG 246		---
RFQ
B
FIG 295A		-1 1/2" to 24"-
RFQ
C
FIG 42SD		---
RFQ
C
FIG 42SD-N		---
RFQ
D
FIG AS 1300AS		---
RFQ
E
FIG AS 3138		---
RFQ
F
FIG 224		-4" to 16"-
RFQ
G
FIG 295		Carbon Steel0.75" to 36"-
RFQ
H
FIG 295H		Carbon Steel6" to 36"-
RFQ
I
FIG 100		Carbon Steel--
RFQ
J
FIG 103		Carbon Steel0.75" to 8"-
RFQ
K
FIG 212		Carbon Steel0.5" to 30"-
RFQ
L
FIG 216		Carbon Steel3" to 42"-
RFQ
M
FIG 138R		Malleable Iron0.375" to 3"450°F
RFQ

Working Mechanism

  • The pipes have a conical thread at least on one end to fix the part via weldless eye nuts or eye rods.
  • With the clamp face facing the threads, slide the clamp onto the pipe.
  • Slide the pipe through the keyhole into the threaded clamp assembly.
  • Screw the clamp until it is tightly fitted.

Features

  • Anvil pipe clamps have carbon steel or malleable iron construction for improved durability or ductility, respectively.
  • They can withstand loads up to 1040 lb, at temperatures ranging from 650 to 750 degrees Fahrenheit.
  • They have plain or hot dip galvanised finish with zinc-plated bolts & nuts to resist corrosion and ensure long life.
  • These metal detachable models enable the assembling of a racking system and prevent piping disasters.
  • They can accommodate pipe sizes ranging from 1-1/2 to 6 inches.

Compatible Accessories

  • Anvil Eye Nuts: They feature forged steel construction for structural rigidity.
  • Anvil Eye Rods: They help in tight installation of pipe clamps and are made of carbon steel for durability & sustainability.

Standards and Approvals

  • FM
  • UL
  • ULC
  • ANSI

Frequently Asked Questions

How are pipe clamps measured?

  • Install the hose on the pipe or fitting, which expands the hose.
  • Measure the outside diameter (O.D.) of the hose
  • Select a clamp which can accommodate that diameter in about the middle of its clamping range.

    • We are here to help!

    Looking for a part not listed here?

    Chat with us now
