TRITAN D80BS13H X 1 1/2 Roller Chain Sprocket, 1 1/2 Inch Bore Dia, 13 Teeth, Steel
Item: CU6YPMModel: D80BS13H X 1 1/2Cross Ref: 55WE95
7 In Stock
1 1/2"
2
4.66"
Ships within 2 days via
€155.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/2" |
| Bore Type | Fixed |
| Finish | Black Oxide |
| For Chain Number | 80-2 |
| For Chain Pitch | 1" |
| For No. Of Strands | 2 |
| Hub Dia. | 3 1/16" , 3.062" |
| Hub Projection | 0.79" |
| Hub Type | One Side |
| Included | Set Screws |
| Keyway | Yes |
| Keyway Width | 3/8" |
| Length Through Bore | 2 1/2" |
| Material | Steel |
| Max. Bore Dia. | 1 1/2" |
| No. Of Teeth | 13 |
| Outside Dia. | 4.66" |
| Pitch Dia. | 4.179" |
| Set Screw Location | Setscrews Are Placed Over The Keyway And at 90° To The Keyway |
| Set Screw Size | 3/8" |
| Teeth Heat Treatment | Hardened Teeth |
| Tooth Width | 0.557" |
| Width Across Tooth Sets | 1.71" |
Shipping Info:
| Ship weight (kg) | 2.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 11.84 |
| Ship width (cm) | 11.84 |
| Country of Origin | CN |
Product Variants
| Product | Model | Bore Dia. | Outside Dia. | Pitch Dia. | For Chain Number | For Chain Pitch | Keyway Width | Hub Dia. | Keyway | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D80BS12H X 1 1/2 | 1 1/2" | 4.33" | 3.864" | 80-2 | 1" | 3/8" | 2 11/16" | Yes | €151.97 | |
 |
D60BS13H X 1 1/2 | 1 1/2" | 3.49" | 3.134" | 60-2 | 3/4" | 3/8" | 2 1/4" | Yes | €89.48 | |
 |
D60BS14H X 1 1/2 | 1 1/2" | 3.74" | 3.371" | - | 3/4" | 3/8" | 2 1/2" | Yes | €97.14 | |
 |
60BS16H X 1 1/2 | 1 1/2" | 4.22" | 3.845" | 60.0 | 3/4" | 3/8" | 3.062" | Yes | €55.90 | |
|
50BS17H X 1 1/2 | 1 1/2" | 3 18/25" | 3.401" | 50.0 | 5/8" | 3/8" | 2 11/16" | Yes | €35.36 | |
|
80BS17H X 1 1/2 | 1 1/2" | 5.95" | 5.442" | 80.0 | 1" | 3/8" | 4" | Yes | €130.13 | |
 |

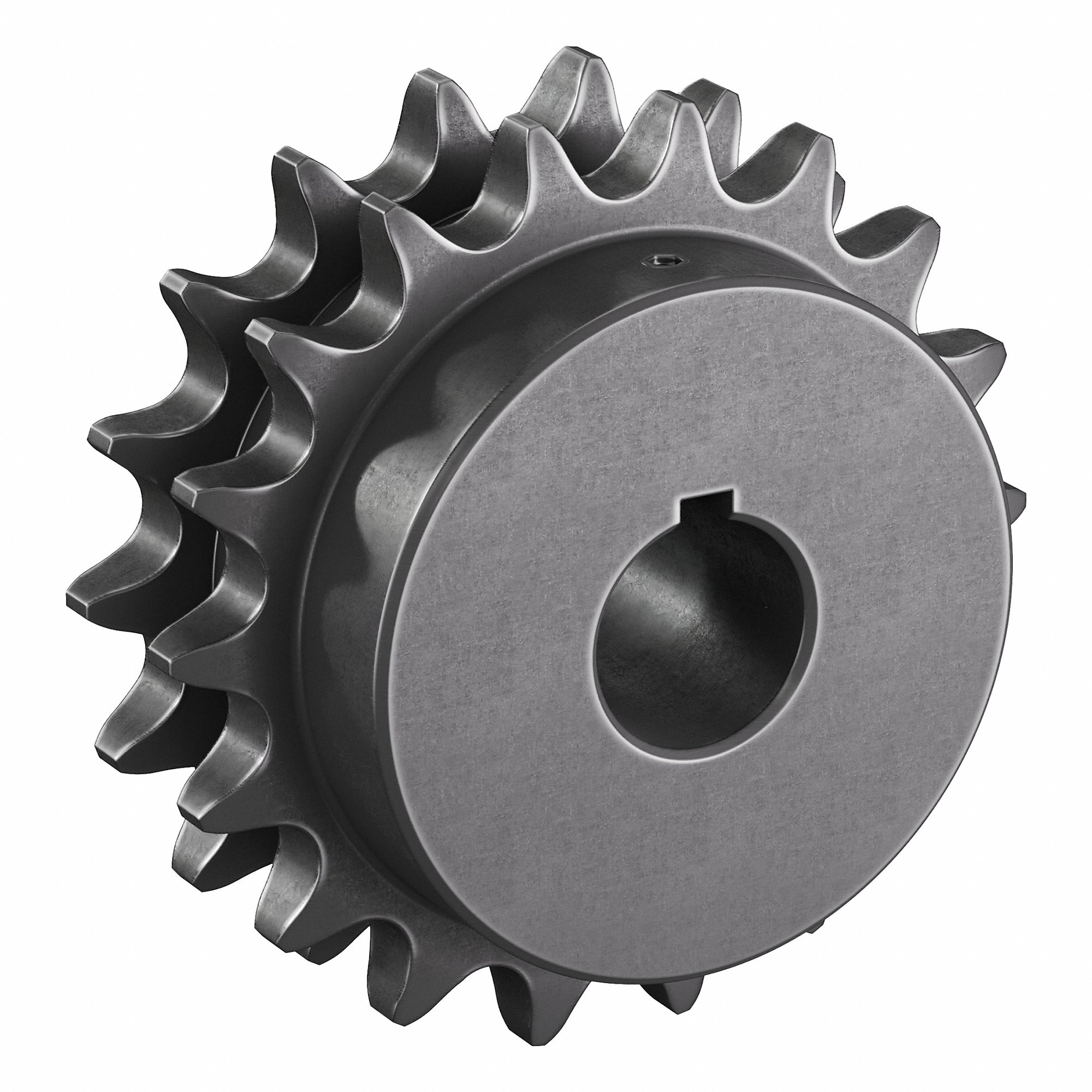

D80BS18H X 1 1/2 | 1 1/2" | 6.27" | 5.759" | 80-2 | 1" | 3/8" | 4 5/8" | Yes | €295.78 |
