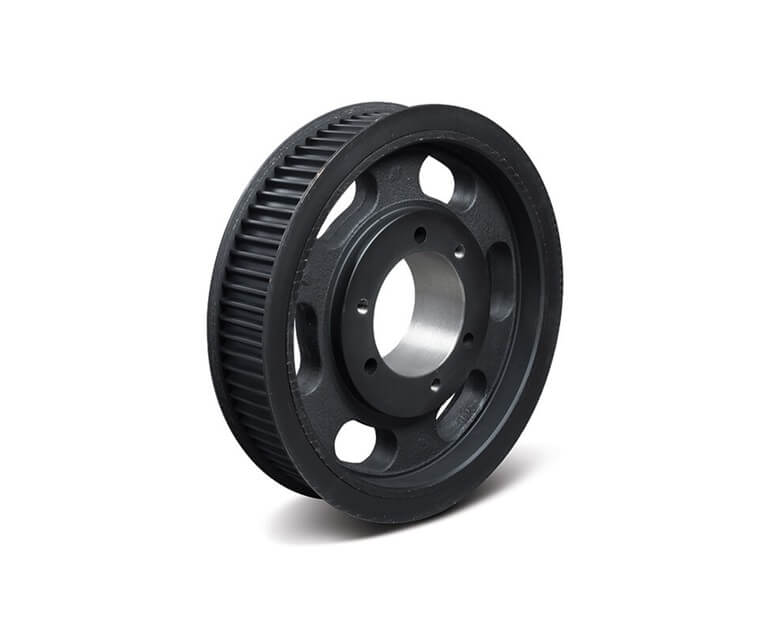

TB WOODS W8014M65 QT Power Chain Belt Sprocket, Cast Iron, 7.38 inch Hub Dia., 65mm Belt Width
65 mm
80
Get it by Monday, Dec 22
€1,394.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Transmission Chain Sprocket |
| Belt Width | 65 mm |
| Bore Type | Quick Disconnect Bushing |
| Bushing | F |
| Bushing Series | F |
| Construction | Webbed |
| Dimension E | 0.53" |
| Dimension L | 3.63" |
| Dimension M | 0.06" |
| Face Width | 3.03" |
| Hub Dia. | 7.38" |
| Hub Length | 2 1/2" |
| Hub Location | 0.53" |
| Inside Dia. | 12.13" |
| Material | Cast Iron |
| Max. Rpm | 1800 RPM |
| Number Of Teeth | 80 |
| Outside Dia. | 13.93" |
| Pitch Dia. | 14.036" |
| Product Type | QT Power Chain |
| Rpm High | 1800 RPM |
| Rpm High | 1,800 rpm |
Shipping Info:
| Ship weight (kg) | 23.85 |
| Ship height (cm) | 35.38 |
| Ship length (cm) | 35.38 |
| Ship width (cm) | 6.5 |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Belt Width | Max. Rpm | Rpm High | Bushing | Pitch Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
W228M12 | 22 | 2.206" | 2.15" | 12 mm | 11620 RPM | 11620 RPM | MPB | - | €201.70 | |
 |
W228M22 | 22 | 2.206" | 2.15" | 22 mm | 11620 RPM | 11620 RPM | MPB | - | €240.03 | |
 |
W228M60 | 22 | 2.206" | 2.15" | 60 mm | 11620 RPM | 11620 RPM | MPB | - | €302.23 | |
 |
W248M12 | 24 | - | - | 12 mm | 16230 RPM | 16230 RPM | JA R | - | €181.79 | |
 |
W248M22 | - | - | - | - | 16230 RPM | 16230 RPM | - | - | €257.94 | |
|
W248M60 | 24 | 2.406" | 2.35" | 60 mm | 10630 RPM | 10630 RPM | MPB | - | €334.54 | |
|
W268M12 | - | - | - | - | 14960 RPM | 14960 RPM | JA R | - | €183.82 |
