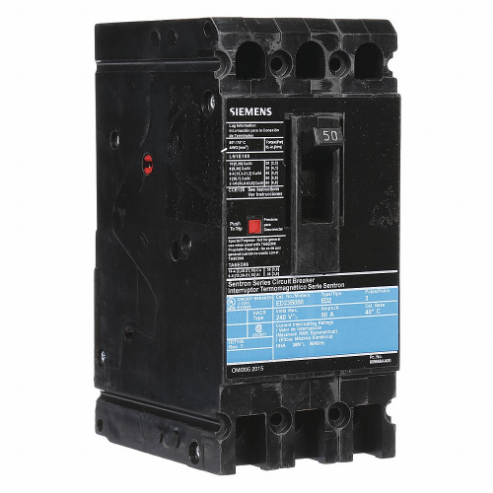

SIEMENS ED23B050 Bolt On Circuit Breaker Ed 50 Amp 240vac 3p 10kaic@240v
Item: AG8MUEModel: ED23B050Cross Ref: 6FNA6
7 In Stock
Ships within 2 days via
10.00% off
€528.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 240V AC |
| Aic Rating | 10 kAIC @ 240V |
| Amps | 50A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Lug In Panelboard |
| Circuit Breaker Type | Standard |
| Dc Voltage Rating | Not Rated |
| Depth | 4" |
| For Use With | SB Switchboards, Sentron Panelboards |
| Frame Size | 125A, ED |
| Frame Type | ED |
| Height | 6.34" |
| High Amp Trip Setting | 50A |
| Instantaneous Trip | Fixed |
| Low Amp Trip Setting | 50A |
| Max. Air Rating | 10 kA At 240V AC |
| Max. Wire Size | 1/0 AWG |
| Min. Wire Size | 10 AWG |
| Number Of Poles | 3 |
| Phase | Three |
| Phase Connection | ABC |
| Series | ED2 Series |
| Terminal Connection | Load Side Lug |
| Trip Type | Thermal Magnetic |
| Voltage | 240V |
| Voltage Type | AC |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 1.68 |
| Ship height (cm) | 16.1 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 7.62 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Variants
| Product | Model | Number Of Poles | Amps | Frame Size | Ac Voltage Rating | Phase | Phase Connection | Voltage | Dc Voltage Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ED21B030 | 1 | 30A | 125A, ED | 120V AC | Single | Any | 120V AC | 125V DC | €186.10 | |
 |
ED21B035 | 1 | 35A | 125A, ED | 120V AC | Single | Any | 120V AC | 125V DC | €193.40 | |
|
ED21B040 | 1 | 40A | 125A, ED | 120V AC | Single | Any | 120V AC | 125V DC | €699.49 | |
 |
ED21B045 | 1 | 45A | - | - | - | - | 120V AC | - | €193.40 | |
|
ED21B050 | 1 | 50A | - | - | - | - | 120V AC | - | €193.40 | |
|
ED21B060 | 1 | 60A | - | - | - | - | 120V AC | - | €193.40 | |
|
ED21B100 | 1 | 100A | 125A, ED | 120V AC | Single | Any | 120V AC | 125V DC | €235.60 |
