SIEMENS ED43B080 Bolt On Circuit Breaker Ed 80 Amp 480vac 3p 18kaic@480v
Item: AG8MVMModel: ED43B080Cross Ref: 3CMK4
7 In Stock
80A
3
Ships within 2 days via
10.00% off
€891.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 480V AC |
| Aic Rating | 18 kAIC @ 480V |
| Amps | 80A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Lug In Panelboard |
| Circuit Breaker Type | Standard |
| Dc Voltage Rating | Not Rated |
| Depth | 4" |
| For Use With | SB Switchboards, Sentron Panelboards |
| Frame Size | 125A, ED |
| Frame Type | ED |
| Height | 6.34" |
| High Amp Trip Setting | 80A |
| Instantaneous Trip | Fixed |
| Low Amp Trip Setting | 80A |
| Max. Wire Size | 1/0 AWG |
| Maximum Air Rating | 18 Ka @ 480V Ac |
| Min. Wire Size | 10 AWG |
| Number Of Poles | 3 |
| Phase | Three |
| Phase Connection | ABC |
| Series | ED4 Series |
| Terminal Connection | Load Side Lug |
| Trip Type | Thermal Magnetic |
| Voltage | 480V |
| Voltage Type | AC |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 1.65 |
| Ship height (cm) | 14.2 |
| Ship length (cm) | 10 |
| Ship width (cm) | 18.2 |
| HS code | 8536200020 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Poles | Amps | Frame Size | Ac Voltage Rating | Phase | Phase Connection | Voltage | Dc Voltage Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

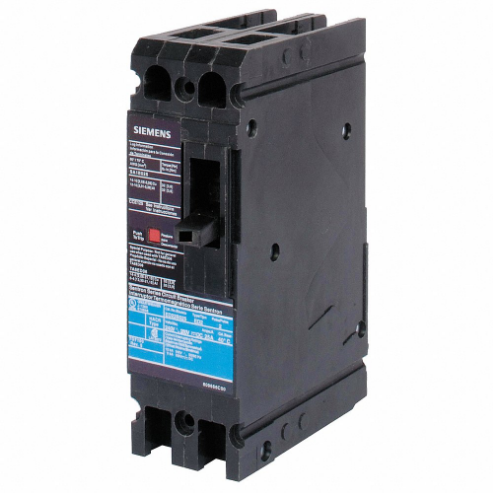

ED42B110 | 2 | 110A | - | - | - | - | 480V | - | €6,735.34 | |
 |
ED42B125 | 2 | 125A | - | - | - | - | 480V | - | €1,366.92 | |
 |
ED42M070 | 2 | 70A | - | - | - | - | 480V | - | - | RFQ
|
 |

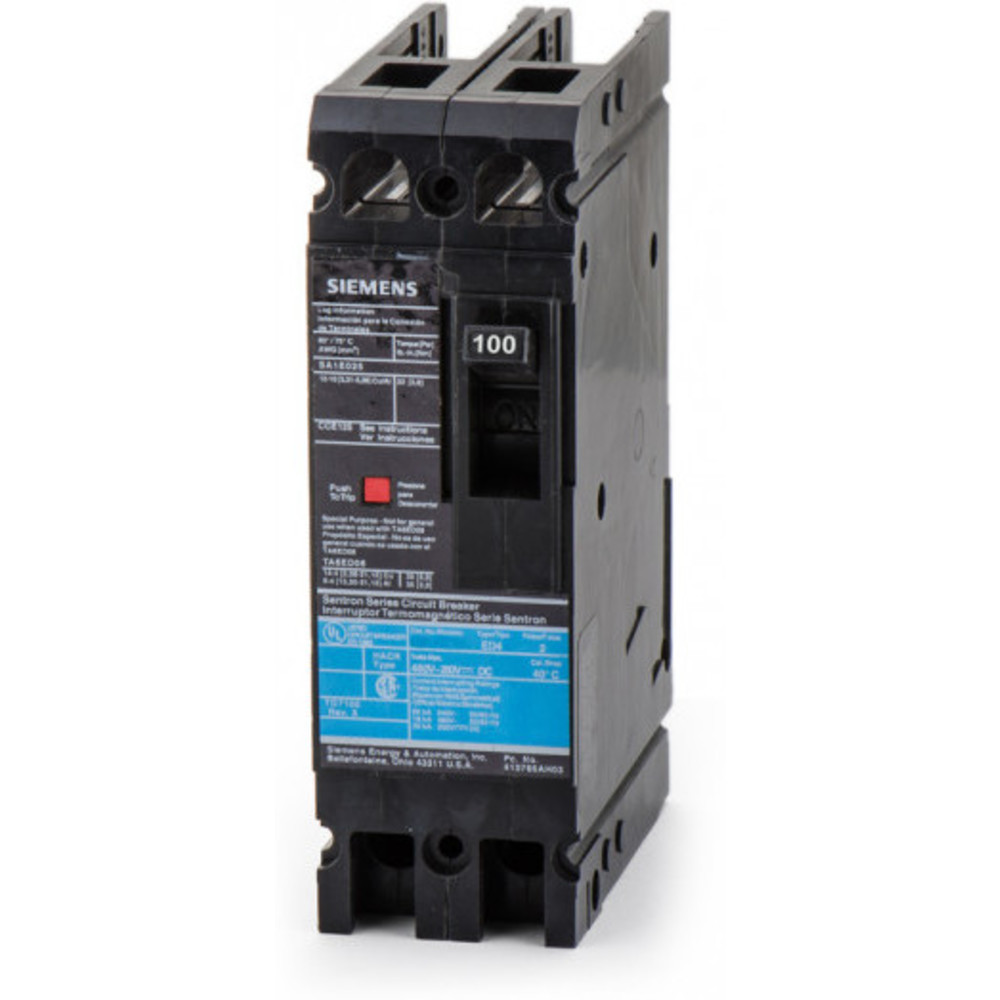

ED42S100A | 2 | 100A | - | - | - | - | 480V | - | €288.00 | |
|
ED42S125A | 2 | 125A | - | - | - | - | 480V | - | - | RFQ
|
 |
ED43B020 | 3 | 20A | 125A, ED | 480V AC | Three | ABC | 480V | Not Rated | €3,343.95 | |
 |

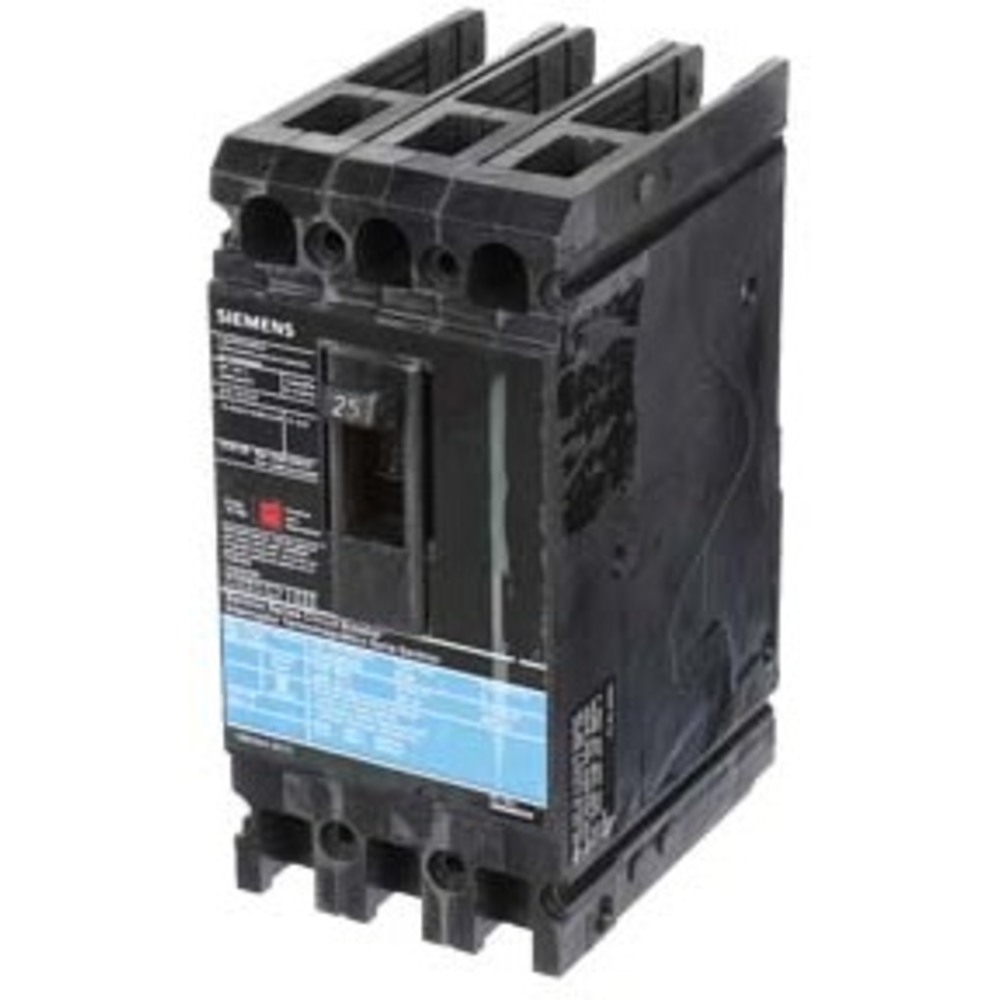

ED43B025 | 3 | 25A | 125A, ED | 480V AC | Three | ABC | 480V | Not Rated | €942.71 |
