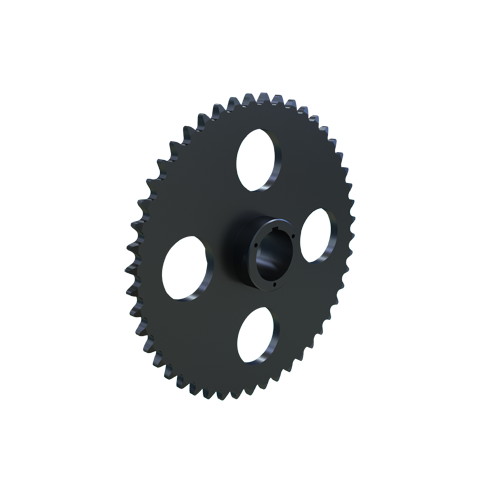

MARTIN SPROCKET 140S48 Sprocket, 140 Chain, 48 Teeth, 26.757 Inch Pitch Dia., 27.750 Inch O.D., Steel
27.750"
Get it by Tuesday, Aug 25
€1,776.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1.875" to 4.188" |
| Bore Type | Bushed |
| Bushing Part Number | S2 |
| Bushing Size | S2 |
| Bushing Type | MST S2 |
| Chain Number | 140 |
| Chain Pitch | 1 3/4" |
| Chain Size | #140 |
| Construction | Welded With Lightening Holes |
| Construction Type | Welded With Lightening Holes |
| For Chain Number | 140 |
| For Chain Pitch | 1 3/4" |
| Hub Configuration | C |
| Hub Dia. | 6 1/2" |
| Hub Outside Dia. | 6 1/2" |
| Individually Packaged | No |
| Key Way Size | 3/4" |
| Keyway Width | 3/4" |
| Length Through Bore | 5 11/16" |
| Material | Steel |
| Max. Bore Size | 4 3/16" |
| Min. Bore Size | 1 7/8" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 48 |
| Outside Dia. | 27 3/4" |
| Pitch | 1 3/4" |
| Pitch Dia. | 26.7571" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 5.69" |
| Storage Dimension Length | 27 3/4" |
| Storage Dimension Width | 27 3/4" |
| Type | Type 6 Single Strand Welded Bushed |
Shipping Info:
| Ship weight (kg) | 59.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 70.49 |
| Ship width (cm) | 70.49 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Width | Storage Dimension Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
140R35 | 19.5227" | 35 | 4" | 5 1/2" | 1 3/8" to 3 3/8" | #140 | 20.494" | 4" | €1,385.40 | |
|
140R36 | 20.079" | 36 | 4" | 5 1/2" | 1 3/8" to 3 3/8" | #140 | 21.053" | 4" | €1,458.82 | |
 |
140S36 | 20.079" | 36 | 3 5/16" | 6 1/2" | 1.688" to 4.25" | #140 | 21.053" | 3.31" | €1,458.82 | |
 |
140R40 | 22.3046" | 40 | 4" | 5 1/2" | 1 3/8" to 3 3/8" | #140 | 23.286" | 4" | €1,601.71 | |
 |
140S40 | 22.3046" | 40 | 3 5/16" | 6 1/2" | 1.688" to 4.25" | #140 | 23.286" | 3.31" | €1,601.71 | |
 |
140S45 | 25.0873" | 45 | 3 5/16" | 6 1/2" | 1.688" to 4.25" | #140 | 26.076" | 3.31" | €1,708.38 | |
 |
140S60 | 33.4378" | 60 | 5 11/16" | 6 1/2" | 1.875" to 4.188" | #140 | 34.442" | 5.69" | €2,308.54 |
