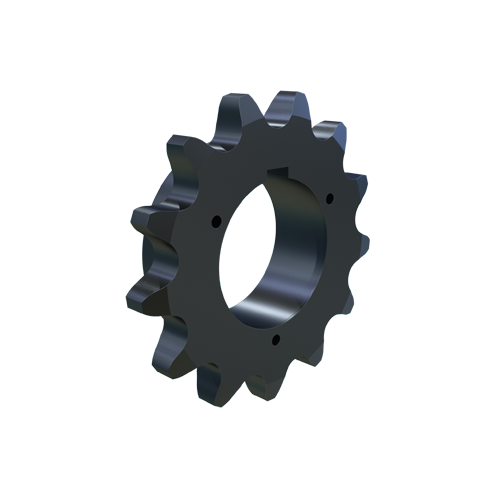

MARTIN SPROCKET 140R13H Sprocket, 140 Chain, 13 Teeth, 7.313 Inch Pitch Dia., 8.150 Inch O.D., Steel
Item: BA4CQMModel: 140R13H
7 In Stock
8.150"
Ships within 2 days via
€660.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/8" to 3 3/4" |
| Bore Type | Bushed |
| Bushing Part Number | R1 |
| Bushing Size | R1 |
| Bushing Type | Type R1 Split Taper |
| Chain Number | 140 |
| Chain Pitch | 1 3/4" |
| Chain Size | 140 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 140 |
| For Chain Pitch | 1 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Dia. | 5 1/2" |
| Hub Outside Dia. | 5 1/2" |
| Individually Packaged | No |
| Key Way Size | 3/4" |
| Keyway Width | 3/4" , 3/4" W |
| Length Through Bore | 2 7/8" |
| Length Thru Bore | 2" |
| Material | Steel |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/8" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 13 |
| Outside Dia. | 8.15" |
| Pitch | 1 3/4" |
| Pitch Dia. | 7 5/16" , 7.313" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 2" |
| Storage Dimension Length | 8.15" |
| Storage Dimension Width | 8.15" |
| Type | MST R1 Bushed Solid Type 4 |
Shipping Info:
| Ship weight (kg) | 4.61 |
| Ship height (cm) | 7.32 |
| Ship length (cm) | 20.7 |
| Ship width (cm) | 20.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Keyway Width | Hub Dia. | Length Through Bore | Bushing Type | For Chain Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
140R35 | 1 3/8" to 3 3/8" | 19.5227" | 20.494" | 3/4" | 5 1/2" | 4" | MST R2 | 140 | €1,385.40 | |
|
140R36 | 1 3/8" to 3 3/8" | 20.079" | 21.053" | 3/4" | 5 1/2" | 4" | MST R2 | 140 | €1,458.82 | |
 |
140S36 | 1.688" to 4.25" | 20.079" | 21.053" | 3/4" | 6 1/2" | 3 5/16" | MST S1 | 140 | €1,458.82 | |
 |
140R40 | 1 3/8" to 3 3/8" | 22.3046" | 23.286" | 3/4" | 5 1/2" | 4" | MST R2 | 140 | €1,601.71 | |
 |
140S40 | 1.688" to 4.25" | 22.3046" | 23.286" | 3/4" | 6 1/2" | 3 5/16" | MST S1 | 140 | €1,601.71 | |
 |
140S45 | 1.688" to 4.25" | 25.0873" | 26.076" | 3/4" | 6 1/2" | 3 5/16" | MST S1 | 140 | €1,708.38 | |
 |
140S60 | 1.875" to 4.188" | 33.4378" | 34.442" | 3/4" | 6 1/2" | 5 11/16" | MST S2 | 140 | €2,308.54 |
