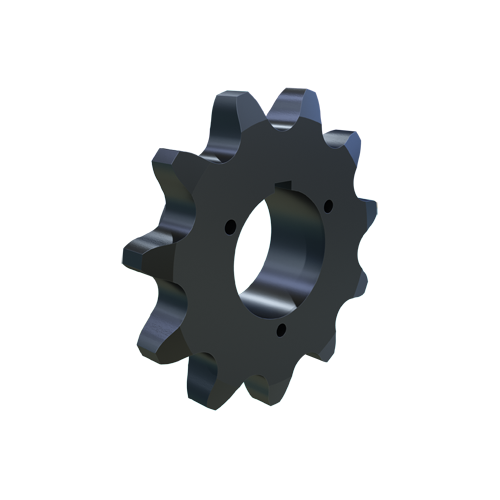

MARTIN SPROCKET 140Q11H Sprocket, 140 Chain, 11 Teeth, 6.212 Inch Pitch Dia., 7.010 Inch O.D., Steel
Item: BA7GJLModel: 140Q11H
7 In Stock
7.010"
Ships within 2 days via
€540.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 0.75" to 2.688" |
| Bore Type | Bushed |
| Bushing Part Number | Q1 |
| Bushing Size | Q1 |
| Bushing Type | Type Q1 Split Taper |
| Chain Number | 140 |
| Chain Pitch | 1 3/4" |
| Chain Size | 140 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 140 |
| For Chain Pitch | 1 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Dia. | 4 1/8" |
| Hub Outside Dia. | 4 1/8" |
| Individually Packaged | No |
| Key Way Size | 1/2" |
| Length Through Bore | 2 1/2" |
| Length Thru Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 11 |
| Pitch | 1 3/4" |
| Pitch Dia. | 6.2116" , 6.212" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 7.01" |
| Storage Dimension Width | 7.01" |
| Type | MST Q1 Bushed Solid Type 4 |
Shipping Info:
| Ship weight (kg) | 3.18 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 17.81 |
| Ship width (cm) | 17.81 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Width | Storage Dimension Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
140R35 | 19.5227" | 35 | 4" | 5 1/2" | 1 3/8" to 3 3/8" | #140 | 20.494" | 4" | €1,385.40 | |
|
140R36 | 20.079" | 36 | 4" | 5 1/2" | 1 3/8" to 3 3/8" | #140 | 21.053" | 4" | €1,458.82 | |
 |
140S36 | 20.079" | 36 | 3 5/16" | 6 1/2" | 1.688" to 4.25" | #140 | 21.053" | 3.31" | €1,458.82 | |
 |
140R40 | 22.3046" | 40 | 4" | 5 1/2" | 1 3/8" to 3 3/8" | #140 | 23.286" | 4" | €1,601.71 | |
 |
140S40 | 22.3046" | 40 | 3 5/16" | 6 1/2" | 1.688" to 4.25" | #140 | 23.286" | 3.31" | €1,601.71 | |
 |
140S45 | 25.0873" | 45 | 3 5/16" | 6 1/2" | 1.688" to 4.25" | #140 | 26.076" | 3.31" | €1,708.38 | |
 |
140S60 | 33.4378" | 60 | 5 11/16" | 6 1/2" | 1.875" to 4.188" | #140 | 34.442" | 5.69" | €2,308.54 |
