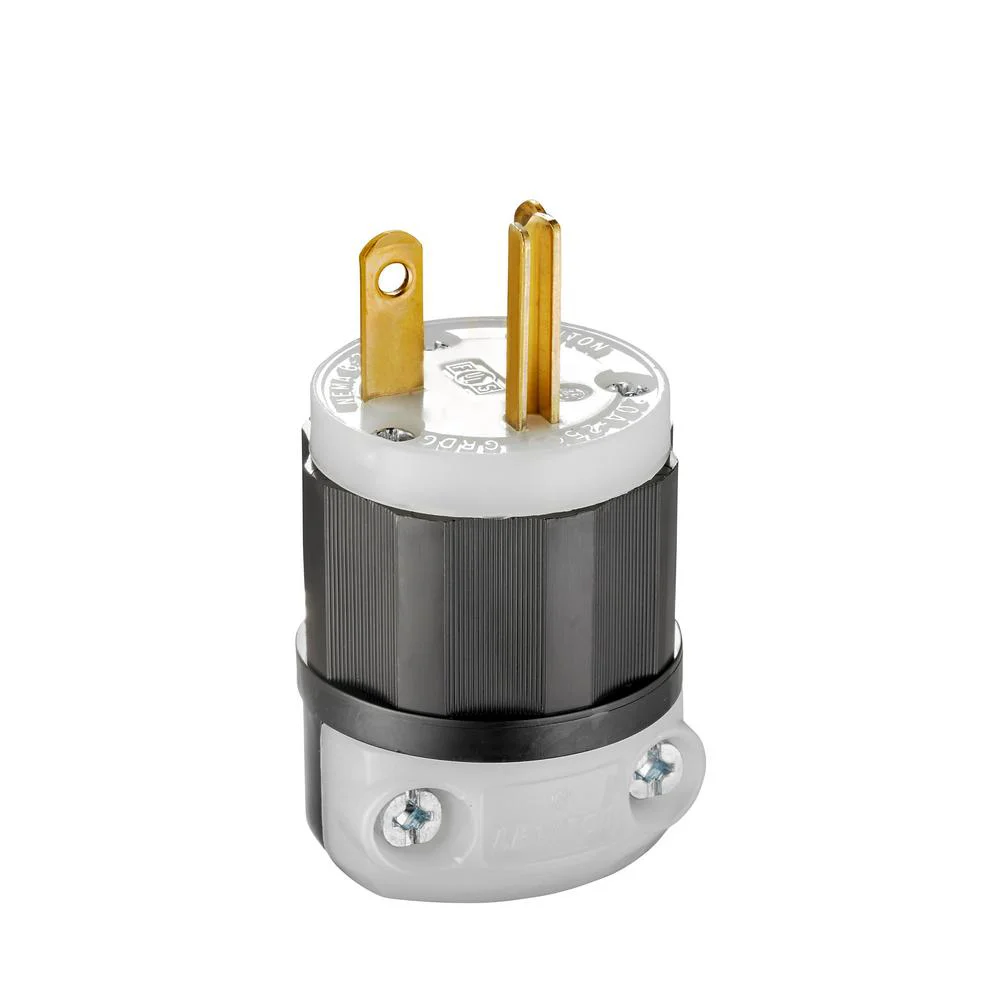

LEVITON 5466-C Straight Blade Plug, 6-20P, 20 A, 250VAC, Black/White, 2 Poles, Screw Terminals, 6-20 | CR9HKH 792TV2

LEVITON 5466-C Straight Blade Plug, 6-20P, 20 A, 250VAC, Black/White, 2 Poles, Screw Terminals

Item: CR9HKHModel: 5466-CCross Ref: 792TV2
7 In Stock

Ships within 2 days via

€42.44
10.00% off
€38.19 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Plug
Amps 20A
Blade Material Brass
Body Length 1.98"
Body Material Nylon
Connection Orientation Straight
Current Rating 20A
Environment Dry
Face Dia. 1.39"
For Environment Dry
For Maximum Cable Diameter 0.685"
For Minimum Cable Diameter 0.23"
Grade General Use
Grounding Grounded
Housing Color Black, White
Housing Material Impact Modified Nylon
Hp 2 hp
Insulation Material Nylon
Ip Rating Not Rated
Max. Operating Temp. 60°C
Maximum Operating Temperature 140°F
Maximum Wire Size 10 AWG
Min. Operating Temp. -40°C
Min. Wire Size 18 AWG
Minimum Operating Temperature -40°F
Nema Enclosure Rating Not Rated
Nema Plug Configuration 6-20P
No. Of Wires 3
Number Of Blades 3
Number Of Poles 2
Outside Dia. 1.53"
Phase Single
Polarized Yes
Resistance Properties Corrosion Resistant
Standards Ansi C73, Csa C22.2 No. 42 File Lr-406, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 File E13399, Ul Federal Specification Wc-596 File E13393
Ul 94 Flammability Rating V-2
Voltage 250V AC
Voltage Rating 250V AC
Wire Connection Type Screw Terminals
Wiring Style Standard

Shipping Info:

Ship weight (kg) 0.07
Ship height (cm)5.03
Ship length (cm)3.89
Ship width (cm)2.54
Country of OriginMX

Product Variants

ProductModelAmpsVoltageWiring StyleNumber Of PolesNema Plug ConfigurationConnection OrientationHousing ColorNumber Of BladesPrice
LEVITON 7251-C Straight Blade Plug, 18-20P, 20 A, 120/208VAC, Yellow, 4 Poles | CR9HJH 792TX8 7251-C20A120/208V ACStandard4-StraightYellow4€202.86
LEVITON 5266-PLB Straight Blade Plug, 5-15P, 15 A, 125VAC, Black, 2 Poles, Screw Terminals, 5-15 | CR9HJM 792TM5 5266-PLB15A125V ACStandard2-StraightBlack3€45.73
LEVITON 5266-PLC Straight Blade Plug, 5-15P, 15 A, 125VAC, Black/White, 2 Poles, Screw Terminals, 5-15 | CR9HJP 792TM6 5266-PLC15A125V ACStandard25-15PStraightBlack, White3€42.18
LEVITON 5266-C Straight Blade Plug, 5-15P, 15 A, 125VAC, Black/White, 2 Poles, Screw Terminals, 5-15 | CR9HJQ 792TM2 5266-C15A125V ACStandard25-15PStraightBlack, White3€26.66
LEVITON 5266-CY Straight Blade Plug, 5-15P, 15 A, 125VAC, White/Yellow, 2 Poles | CR9HJU 792TM4 5266-CY15A125V ACStandard25-15PStraightWhite, Yellow3€23.11
LEVITON 5256-VY Straight Blade Plug, 5-15P, 15 A, 125VAC, Yellow, 2 Poles, Screw Terminals, 5-15 | CR9HJV 792TK3 5256-VY15A125V ACHinged25-15PStraightYellow3€17.03
LEVITON 5366-C Straight Blade Plug, 5-20P, 20 A, 125VAC, Black/White, 2 Poles, Screw Terminals, 5-20 | CR9HJY 792TT9 5366-C20A125V ACStandard25-20PStraightBlack, White3€34.55
