BISON GEAR & ENGINEERING 261 Series Sanimotor Inline Parallel Shaft Washdown AC Gearmotors

Filter

Style	Model	Gear Ratio	Rotation	Overhung Load Capacity	Overhung Load	Rpm Range	No Load Rpm	Keyway Size	Rpm @ 50 Hz	Price
A	017-261-0010	-	-	-	-	-	-	-	-	€1,603.92
A	017-261-0140	-	-	-	-	-	-	-	-	€1,603.92
B	017-261-4010	-	-	-	-	-	-	-	-	€1,727.61
A	017-261-0072	-	-	-	-	-	-	-	-	€1,603.92
B	017-261-4072	-	-	-	-	-	-	-	-	€1,727.61
B	017-261-4140	-	-	-	-	-	-	-	-	€1,727.61
B	017-261-4005	-	-	-	-	-	-	-	-	€1,727.61

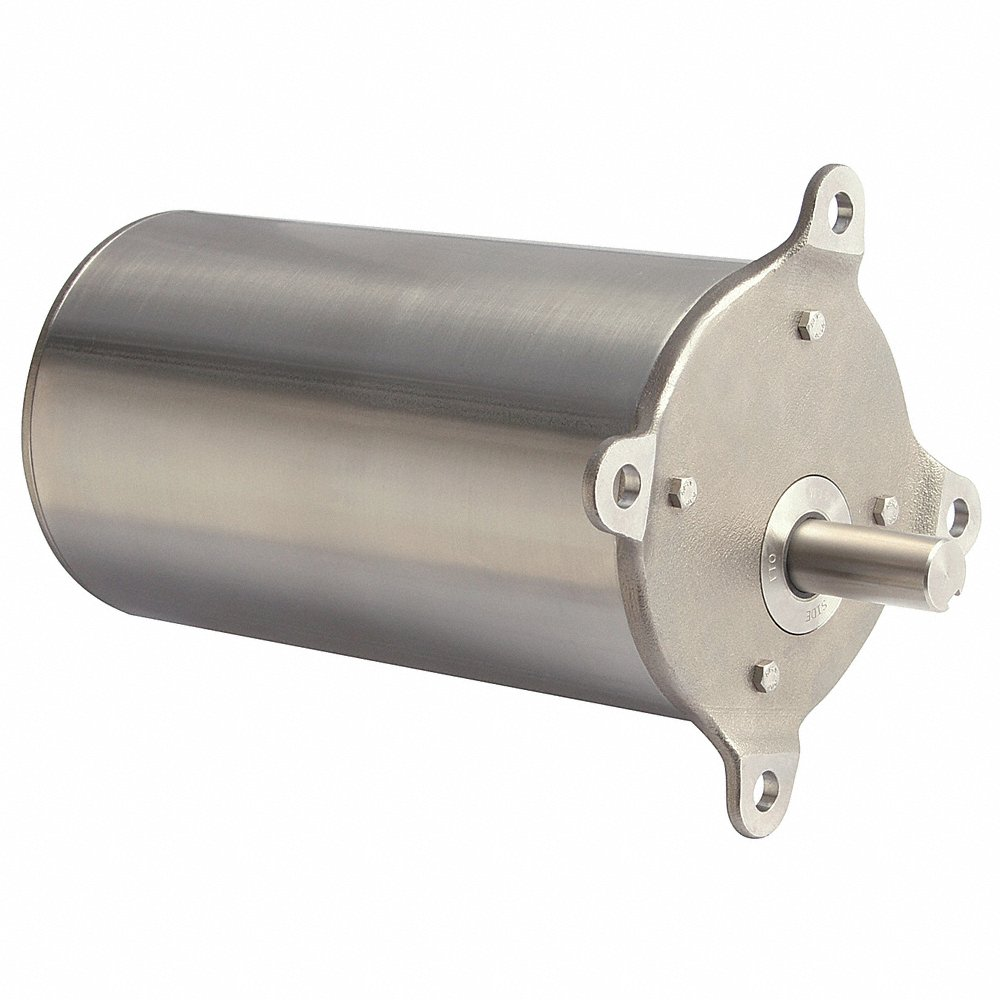

C	017-261-0037	-	-	-	-	-	-	-	-	€1,911.78
B	017-261-4037	-	-	-	-	-	-	-	-	€1,727.61
B	017-261-4221	-	-	-	-	-	-	-	-	€1,727.61
A	017-261-0019	-	-	-	-	-	-	-	-	€1,603.92
B	017-261-4019	-	-	-	-	-	-	-	-	€1,727.61
A	017-261-1005	5:1	-	-	-	-	-	-	-	€1,777.72
D	017-261-0005	5:1	CW/CCW	240 lbs.-ft.	240 lbs.	251-500 RPM	378 RPM	6 sq. mm x 25 mm	233 RPM	€2,328.92
A	017-261-0005	5:1	-	-	-	-	-	-	-	€1,603.92
D	017-261-0010	9.7:1	CW/CCW	240 lbs.-ft.	240 lbs.	151-200 RPM	188 RPM	6 mm x 25 mm	116 RPM	€2,608.61
A	017-261-1010	10:1	-	-	-	-	-	-	-	€1,777.72
D	017-261-0019	18.8:1	CW/CCW	300 lbs.-ft.	300 lbs.	76-100 RPM	98 RPM	6 mm x 25 mm	61 RPM	€2,489.61
A	017-261-1020	19:1	-	-	-	-	-	-	-	€1,777.72
A	017-261-1037	37:1	-	-	-	-	-	-	-	€1,777.72
D	017-261-0072	71.5:1	Reversible	-	200 lbs.	16-30 RPM	25 RPM	6 sq. mm x 25 mm	16 RPM	€2,194.50
A	017-261-1072	72:1	-	-	-	-	-	-	-	€1,777.72
D	017-261-0140	140:1	CW/CCW	165 lbs.-ft.	165 lbs.	0-15 RPM	12 RPM	6 mm sq. x 25 mm	8 RPM	€2,431.87
A	017-261-1140	140:1	-	-	-	-	-	-	-	€1,777.72
A	017-261-0221	221:1	-	-	-	-	-	-	-	€1,603.92
A	017-261-1221	221:1	-	-	-	-	-	-	-	€1,777.72
D	017-261-0221	221:1	CW/CCW	130 lbs.-ft.	130 lbs.	0-15 RPM	6 RPM	6 sq. mm x 25 mm	4 RPM	€2,018.43
