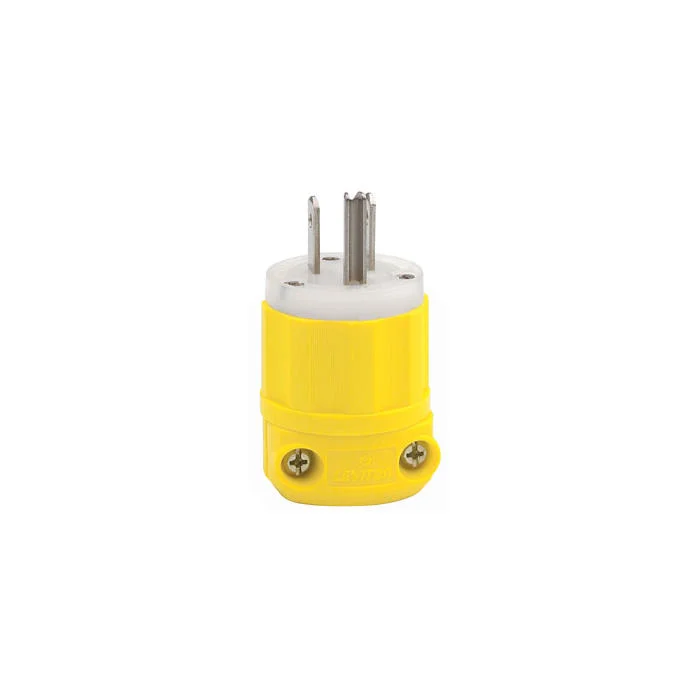

LEVITON 52CM-66C Cable Mount Corrosion Resistant Grounding Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, White/Yellow
Item: CR9JCWModel: 52CM-66CCross Ref: 792TN4
7 In Stock
Ships within 2 days via
5.00% off
€34.26 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Blade Plug |
| Amps | 15A |
| Assembly Screws Grade | Grade 300 |
| Assembly Screws Material | Stainless Steel |
| Back Cover | Thermoplastic |
| Blade Material | Brass |
| Blades/contacts | Nickel Plated Brass |
| Body Grade | Grade ST801 |
| Body Length | 1.98" |
| Body Material | Nylon |
| Clamp Insert | Nylon |
| Color | Yellow And White |
| Connection Orientation | Straight |
| Cord Range | 0.218" to 0.43" |
| Cord-clamp | Nylon |
| Current Interrupting | Certified For Current Interrupting At Full Rated Current |
| Current Rating | 15A |
| Device Type | Straight Blade Plug |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Environment | Corrosive |
| Face Dia. | 1.39" |
| Face Material | Nylon |
| Flammability | Rated V-2 Per UL 94 |
| For Environment | Corrosive |
| For Maximum Cable Diameter | 0.43" |
| Grade | General Use |
| Grounding | Grounded , Grounding |
| Housing Color | White, Yellow |
| Housing Material | Nylon |
| Hp | 1/2 hp |
| Insulation Material | Nylon |
| Ip Rating | Not Rated |
| Max. Operating Temp. | 60°C |
| Maximum Operating Temperature | 140°F |
| Maximum Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Minimum Operating Temperature | -40°F |
| Nema Enclosure Rating | Not Rated |
| Nema Plug Configuration | 5-15P |
| Nema Rating | NEMA WD-6 |
| No. Of Wires | 3 |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Operating Temp. | -40°C to +60°C |
| Outside Dia. | 1.53" |
| Phase | Single |
| Polarized | Yes |
| Resistance Properties | Corrosion Resistant |
| Screw Terminal Torque | 12 lbs.-in. to 14 lbs.-in. |
| Standards | Ansi C73, Csa C22.2 No. 42 File Lr-406, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 File E13393, Ul Federal Specification Wc-596 File E13393 |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 18 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Nickel Plated |
| Terminal Screws Material | Brass |
| Terminal Screws Size | #8-32 |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.4 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 23.81 |
| Ship width (cm) | 15.24 |
| Country of Origin | MX |
Product Variants
| Product | Model | Amps | Voltage | Wiring Style | Number Of Poles | Nema Plug Configuration | Connection Orientation | Housing Color | Number Of Blades | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7251-C | 20A | 120/208V AC | Standard | 4 | - | Straight | Yellow | 4 | €202.86 | |
 |
5266-PLB | 15A | 125V AC | Standard | 2 | - | Straight | Black | 3 | €45.73 | |
 |
5266-PLC | 15A | 125V AC | Standard | 2 | 5-15P | Straight | Black, White | 3 | €42.18 | |
 |
5266-C | 15A | 125V AC | Standard | 2 | 5-15P | Straight | Black, White | 3 | €26.66 | |
 |
5266-CY | 15A | 125V AC | Standard | 2 | 5-15P | Straight | White, Yellow | 3 | €23.11 | |
 |
5256-VY | 15A | 125V AC | Hinged | 2 | 5-15P | Straight | Yellow | 3 | €17.03 | |
 |
5366-C | 20A | 125V AC | Standard | 2 | 5-20P | Straight | Black, White | 3 | €34.55 |
