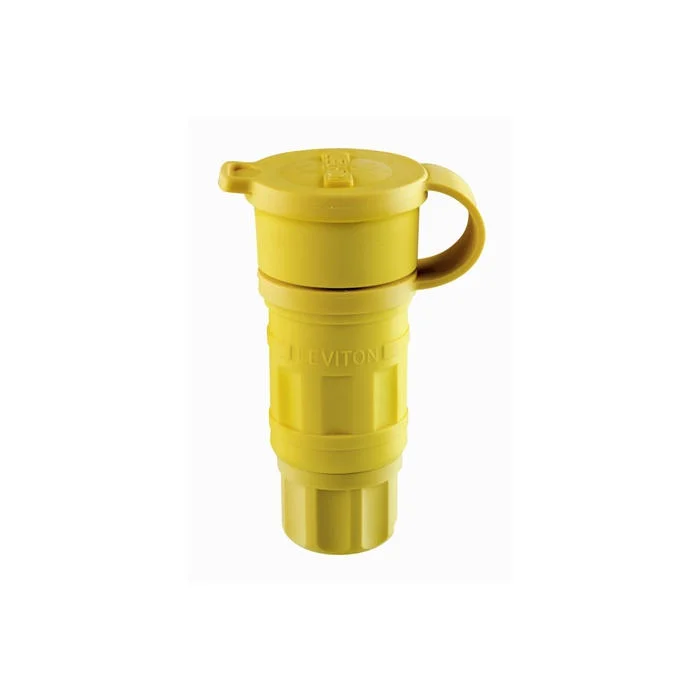

LEVITON 27W82 Watertight Locking Connector, L22-20R, 20 A, 277/480VAC, 4 Poles, Yellow
Item: CR9GYMModel: 27W82Cross Ref: 792TD4
7 In Stock
Ships within 2 days via
10.00% off
€252.02 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 20A |
| Body Material | Santoprene TPV |
| Cap Type | Press On Cap |
| Color | Yellow |
| Connection Orientation | Straight |
| Contact Material | Nickel Plated Brass |
| Current Rating | 20A |
| Environment | Wet |
| Face Dia. | 2 1/2" |
| Face Diameter | 2.5" |
| For Environment | Wet |
| For Maximum Cable Diameter | 7/8" |
| For Minimum Cable Diameter | 3/8" |
| Grade | General Use |
| Grounding | Grounded |
| Housing Color | Yellow |
| Housing Material | Santoprene Tpv |
| Insulation Material | Nylon |
| Ip Rating | IP69K |
| Length | 5.38" |
| Market | Industrial |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 10 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 16 AWG |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Nema Receptacle Configuration | NEMA L22-20R |
| No. Of Phase | 3 |
| Number Of Poles | 4 |
| Number Of Wires | 5 |
| Outside Dia. | 3.22" |
| Overall Length | 5.38" |
| Phase | Three |
| Polarized | Yes |
| Resistance Properties | Watertight |
| Shrouded | Yes |
| Standards | Ansi C73, Csa C22.2 No. 42 File Lr-406, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 277/480V AC |
| Voltage Rating | 277/480V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 13.67 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Model | Phase | Number Of Poles | Number Of Wires | Ip Rating | Current Rating | Voltage Rating | Amps | Grounding | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 25W04 | Single | 2 | 2 | IP66, IP67, IP69K | 15A | 125V AC | 15A | Non Grounded | €73.86 | |
| 27W81 | Three | 4 | 5 | IP67 | - | - | 20A | Grounded | €195.16 | |
| 29W81 | Three | 4 | 5 | IP69K | 30A | 120/208V AC | 30A | Grounded | €247.93 | |
| 27W07 | Single | 2 | 2 | IP66, IP67, IP69K | 20A | 250V AC | 20A | Non Grounded | €78.91 | |
| 25W47 | Single | 2 | 3 | IP66, IP67, IP69K | 15A | 125V AC | 15A | Grounded | €73.89 | |
| 25W34 | Single | 2 | 3 | IP66, IP67, IP69K | 15A | 277V AC | 15A | Grounded | €106.12 | |
| 29W82 | Three | 4 | 5 | IP67 | 30A | 277/480V AC | 30A | Grounded | €327.68 |
