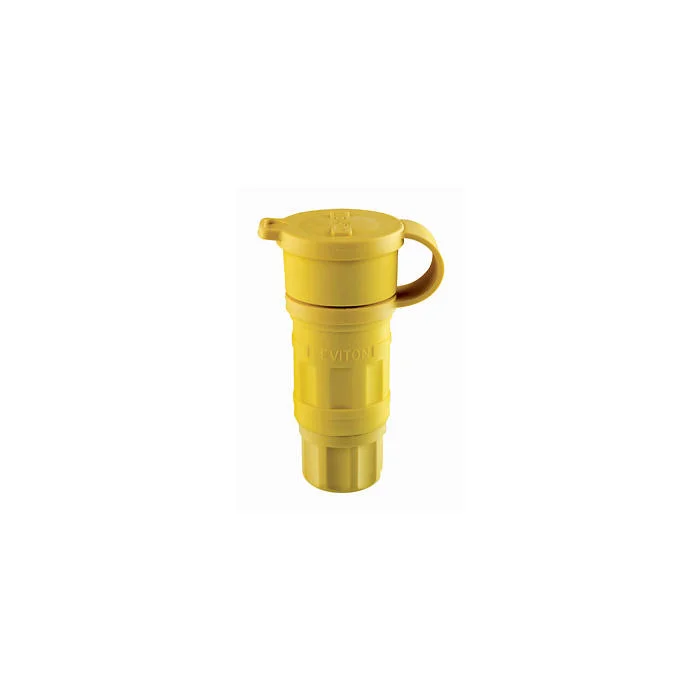

LEVITON 25W34 WatertigHeight Locking Connector, L7-15R, 15 A, 277VAC, 2 Poles, Yellow | CR9GYP 792T70

LEVITON 25W34 Grounding Watertight Cable Mount Locking Connector, 1 Phase, 277 VAC, 15 A, 2 Poles, 3 Wires, Yellow

Item: CR9GYPModel: 25W34Cross Ref: 792T70
7 In Stock

Ships within 2 days via

€106.12
5.00% off
€100.81 /unit
This product can only be shipped in multiples of 20
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Locking Connector
Amps 15A
Amps Limiting Full Rated Current
Assembly Screws Grade Grade 300
Assembly Screws Material Stainless Steel
Blades/contacts Nickel Plated Brass
Body Interior Nylon
Body Material EPTR Rubber , Santoprene TPV
Bushing Material Santoprene TPV
Cap Type Press On Cap
Color Yellow
Compression Nut Strain Relief Nylon
Connection Orientation Straight
Contact Material Nickel Plated Brass
Cord Grip 0.234" to 0.687"
Device Type Locking Connector
Dielectric Voltage Withstands 2000V Per UL498
Face Dia. 2.3"
Flammability Rated V-2 Per UL 94
For Max. Cable Dia. 0.687"
For Min. Cable Dia. 0.234"
Grade General Use
Grounding Grounded , Grounding
Housing Color Yellow
Housing Material Santoprene Tpv
Insulation Material Nylon
Ip Rating IP66, IP67, IP69K
Length 4 1/5"
Market Industrial
Max. Operating Temp. 60°C
Max. Wire Size 10 AWG
Midget Locking No
Min. Operating Temp. -40°C
Min. Wire Size 18 AWG
Nema Rating NEMA WD-6
Nema Receptacle Configuration NEMA L7-15R
No. Of Poles 2
No. Of Wires 3
Operating Temp. -40°C to +60°C
Outside Dia. 1 7/25" , 1.28"
Overall Length 4.2"
Phase 1
Polarized Yes
Product Datasheet leviton-5410-w.pdf
Resistance Properties Watertight
Shrouded Yes
Temp. Rise Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current
Terminal Accom. 18 AWG to 10 AWG
Terminal Inside Dia. Brass Hot, Green Ground, Silver Neutral
Terminal Screws Finish Electroless Nickel Coated
Terminal Screws Material Brass
Torque 12 lbs.-in. to 14 lbs.-in.
Ul 94 Flammability Rating V-2
Voltage 277V AC
Wire Connection Type Screw Terminal
Wire Module Nylon
Wiring Style Standard

Shipping Info:

Ship weight (kg) 1.73
Ship height (cm)31.12
Ship length (cm)40.01
Ship width (cm)3.25
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelNo. Of PolesPhaseFor Min. Cable Dia.For Max. Cable Dia.Min. Wire SizeMax. Wire SizeVoltageAmpsPrice
LEVITON 25W04 WatertigHeight Locking Connector, L1-15R, 15 A, 125VAC, 2 Poles, Yellow, Shrouded | CR9GYH 792T68 25W04210.234"0.687"18 AWG10 AWG125V AC15A€73.86
LEVITON 27W81 WatertigHeight Locking Connector, L21-20R, 20 A, 120/208VAC, 4 Poles, Yellow | CR9GYJ 792TD3 27W81433/8"7/8"16 AWG10 AWG120/208V AC20A€195.16
LEVITON 29W81 WatertigHeight Locking Connector, L21-30R, 30 A, 120/208VAC, 4 Poles, Yellow | CR9GYK 792TF8 29W81435/8"1 1/8"12 AWG8 AWG120/208V AC30A€247.93
LEVITON 27W07 WatertigHeight Locking Connector, L2-20R, 20 A, 250VAC, 2 Poles, Yellow, Shrouded | CR9GYL 792TC2 27W07213/8"7/8"16 AWG10 AWG250V AC20A€78.91
LEVITON 27W82 WatertigHeight Locking Connector, L22-20R, 20 A, 277/480VAC, 4 Poles, Yellow | CR9GYM 792TD4 27W82433/8"7/8"16 AWG10 AWG277/480V AC20A€280.03
LEVITON 25W47 WatertigHeight Locking Connector, L5-15R, 15 A, 125VAC, 2 Poles, Yellow | CR9GYN 792T71 25W47213/8"0.655"18 AWG10 AWG125V AC15A€73.89
LEVITON 29W82 WatertigHeight Locking Connector, L22-30R, 30 A, 277/480VAC, 4 Poles, Yellow | CR9JDY 792TF9 29W82435/8"1 1/8"12 AWG8 AWG277/480V AC30A€327.68
