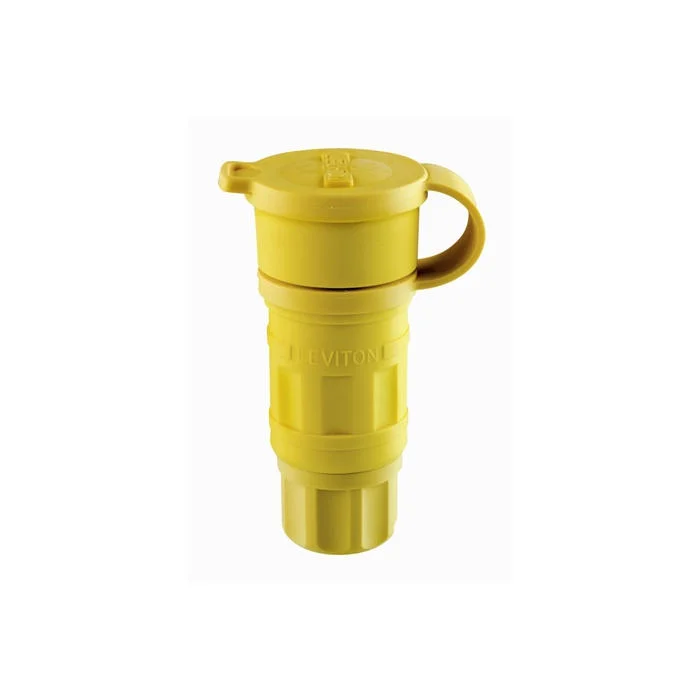

LEVITON 27W81 Grounding Locking Connector, 3-Phase, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Yellow
Item: CR9GYJModel: 27W81Cross Ref: 792TD3
7 In Stock
Ships within 2 days via
5.00% off
€185.40 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 20A |
| Amps Limiting | Full Rated Current |
| Assembly Screws Grade | Grade 300 |
| Assembly Screws Material | Stainless Steel |
| Blades/contacts | Nickel Plated Brass |
| Body Interior | Nylon |
| Body Material | EPTR Rubber , Santoprene TPV |
| Bushing Material | Santoprene TPV |
| Cap Type | Press On Cap |
| Color | Yellow |
| Compression Nut Strain Relief | Nylon |
| Connection Orientation | Straight |
| Connection Type | WYE |
| Contact Material | Nickel Plated Brass |
| Cord Grip | 0.375" to 0.875" |
| Device Type | Locking Connector |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Environment | Wet |
| Face Dia. | 2 1/2" |
| Flammability | Rated V-2 Per UL 94 |
| For Environment | Wet |
| For Max. Cable Dia. | 7/8" |
| For Min. Cable Dia. | 3/8" |
| Grade | General Use |
| Grounding | Grounded , Grounding |
| Housing Color | Yellow |
| Insulation Material | Nylon |
| Ip Rating | IP67 |
| Length | 5.38" |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 10 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 16 AWG |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | NEMA L21-20R |
| No. Of Phase | 3 |
| No. Of Poles | 4 |
| No. Of Wires | 5 |
| Operating Temp. | -40°C to +60°C |
| Outside Dia. | 3.22" |
| Phase | 3 |
| Polarized | Yes |
| Product Datasheet | leviton-5410-w.pdf |
| Resistance Properties | Watertight |
| Shrouded | Yes |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | #16 to #10 |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Electroless Nickel Coated |
| Terminal Screws Material | Brass |
| Voltage | 120/208V AC |
| Wire | 5 |
| Wire Connection Type | Screw Terminal |
| Wire Module | Nylon |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 31.12 |
| Ship length (cm) | 40.01 |
| Ship width (cm) | 6.35 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Phase | Ip Rating | Face Dia. | Amps | Grounding | Max. Wire Size | Min. Wire Size | Nema Receptacle Configuration | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
25W04 | 1 | IP66, IP67, IP69K | 2.3" | 15A | Non Grounded | 10 AWG | 18 AWG | NEMA L1-15R | €73.86 | |
 |
29W81 | 3 | IP69K | 2 3/4" | 30A | Grounded | 8 AWG | 12 AWG | NEMA L21-30R | €247.93 | |
 |
27W07 | 1 | IP66, IP67, IP69K | 2.3" | 20A | Non Grounded | 10 AWG | 16 AWG | NEMA L2-20R | €78.91 | |
 |
27W82 | 3 | IP69K | 2 1/2" | 20A | Grounded | 10 AWG | 16 AWG | NEMA L22-20R | €280.03 | |
 |
25W47 | 1 | IP66, IP67, IP69K | 1.78" | 15A | Grounded | 10 AWG | 18 AWG | NEMA L5-15R | €73.89 | |
 |
25W34 | 1 | IP66, IP67, IP69K | 2.3" | 15A | Grounded | 10 AWG | 18 AWG | NEMA L7-15R | €106.12 | |
 |
29W82 | 3 | IP67 | 2 3/4" | 30A | Grounded | 8 AWG | 12 AWG | NEMA L22-30R | €327.68 |
