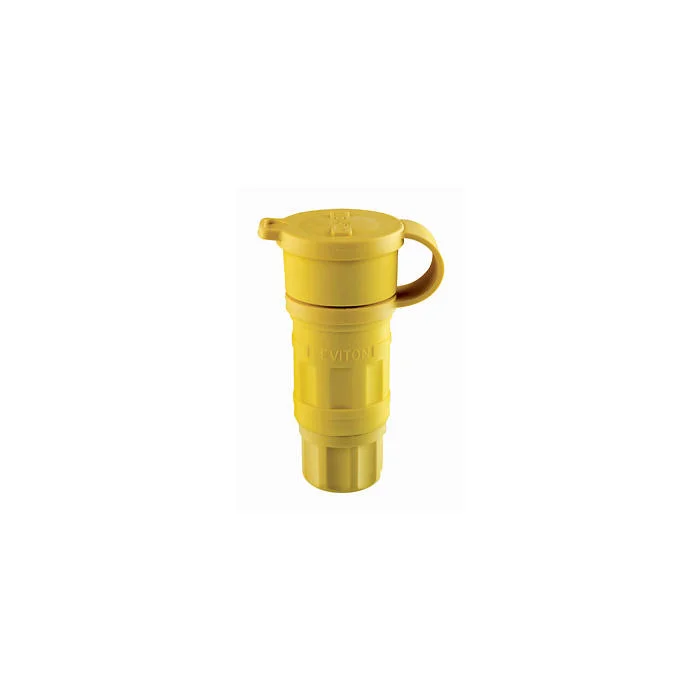

LEVITON 25W04 Non-Grounding Locking Connector, 1 Phase, 125 VAC, 15 A, 2 Poles, 2 Wires, Yellow
Item: CR9GYHModel: 25W04Cross Ref: 792T68
7 In Stock
Ships within 2 days via
5.00% off
€70.17 /unit
This product can only be shipped in multiples of 20Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 15A |
| Amps Limiting | Full Rated Current |
| Assembly Screws Material | Stainless Steel |
| Blades/contacts | Electroless Nickel Coated Brass |
| Body Interior | Nylon |
| Body Material | Santoprene TPV |
| Bushing Material | Santoprene TPV |
| Cap Type | Press On Cap |
| Clamps Finish | Electroless Nickel Coated |
| Clamps Material | Brass |
| Color | Yellow |
| Compression Nut Strain Relief | Nylon |
| Connection Orientation | Straight |
| Contact Material | Nickel Plated Brass |
| Cord Grip | 0.234" to 0.687" |
| Device Type | Locking Connector |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Environment | Wet |
| Face Dia. | 2.3" |
| Flammability | Rated V-2 Per UL 94 |
| For Environment | Wet |
| For Max. Cable Dia. | 0.687" |
| For Min. Cable Dia. | 0.234" |
| Grade | General Use |
| Grounding | Non Grounded , Non Grounding |
| Housing Color | Yellow |
| Housing Material | Santoprene Tpv |
| Insulation Material | Nylon |
| Ip Rating | IP66, IP67, IP69K |
| Length | 4 1/5" |
| Market | Industrial |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 10 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | NEMA L1-15R |
| No. Of Poles | 2 |
| No. Of Wires | 2 |
| Operating Temp. | -40°C to +60°C |
| Outside Dia. | 1 7/25" , 1.28" |
| Overall Length | 4.2" |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | leviton-5410-w.pdf |
| Resistance Properties | Watertight |
| Shrouded | Yes |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 18 AWG to 10 AWG |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Electroless Nickel Coated |
| Terminal Screws Material | Brass |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Wire Connection Type | Screw Terminal |
| Wire Module | Nylon |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 1.73 |
| Ship height (cm) | 31.12 |
| Ship length (cm) | 40.01 |
| Ship width (cm) | 22.86 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | No. Of Poles | Phase | For Min. Cable Dia. | For Max. Cable Dia. | Min. Wire Size | Max. Wire Size | Voltage | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
27W81 | 4 | 3 | 3/8" | 7/8" | 16 AWG | 10 AWG | 120/208V AC | 20A | €195.16 | |
 |
29W81 | 4 | 3 | 5/8" | 1 1/8" | 12 AWG | 8 AWG | 120/208V AC | 30A | €247.93 | |
 |
27W07 | 2 | 1 | 3/8" | 7/8" | 16 AWG | 10 AWG | 250V AC | 20A | €78.91 | |
 |
27W82 | 4 | 3 | 3/8" | 7/8" | 16 AWG | 10 AWG | 277/480V AC | 20A | €280.03 | |
 |
25W47 | 2 | 1 | 3/8" | 0.655" | 18 AWG | 10 AWG | 125V AC | 15A | €73.89 | |
 |
25W34 | 2 | 1 | 0.234" | 0.687" | 18 AWG | 10 AWG | 277V AC | 15A | €106.12 | |
 |
29W82 | 4 | 3 | 5/8" | 1 1/8" | 12 AWG | 8 AWG | 277/480V AC | 30A | €327.68 |
