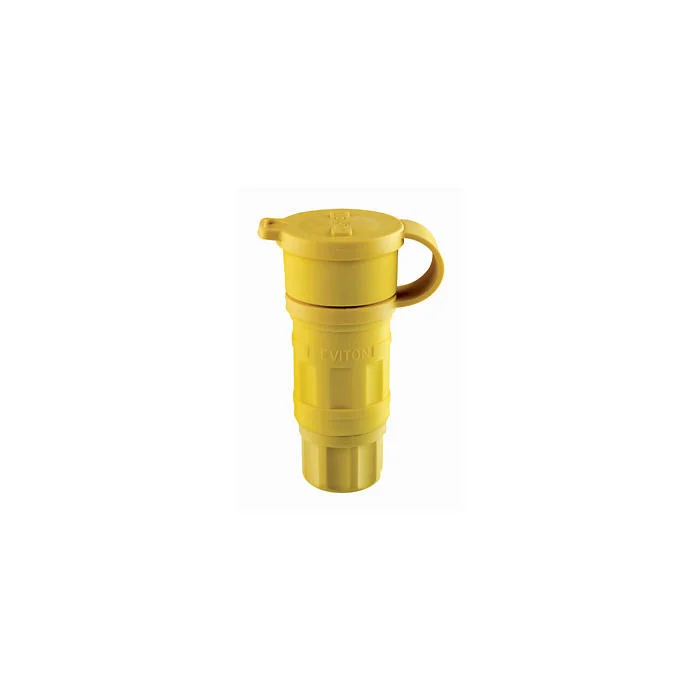

LEVITON 25W47 Locking Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Item: CR9GYNModel: 25W47Cross Ref: 792T71
7 In Stock
Ships within 2 days via
5.00% off
€70.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 15A |
| Assembly Screws Material | Stainless Steel |
| Blades/contacts | Electroless Nickel Coated Brass |
| Body Material | Santoprene TPV |
| Bushing Material | Santoprene TPV |
| Cap Type | Press On Cap |
| Color | Yellow |
| Compression Nut, Strain Relief | Nylon |
| Connection Orientation | Straight |
| Contact Material | Nickel Plated Brass |
| Cord Grip Range | 0.375" to 0.655" |
| Current Limiting | Full Rated Current |
| Current Rating | 15A |
| Device Type | Locking Connector |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Environment | Wet |
| Face Dia. | 1.78" |
| Flammability | Rated V-2 Per UL 94 |
| For Environment | Wet |
| For Maximum Cable Diameter | 0.655" |
| For Minimum Cable Diameter | 3/8" |
| Grade | General Use |
| Grounding | Grounded , Grounding |
| Housing Color | Yellow |
| Housing Material | Santoprene Tpv |
| Ip Rating | IP66, IP67, IP69K |
| Length | 4.06" |
| Market | Industrial |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 10 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Minimum Wire Size | 18 AWG |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | NEMA L5-15R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Outside Dia. | 2.3" |
| Overall Length | 4.06" |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-5410-w.pdf |
| Resistance Properties | Watertight |
| Shrouded | Yes |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 18 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Electroless Nickel Coated |
| Terminal Screws Material | Brass |
| Torque Range | 12 lbs.-in. to 14 lbs.-in. |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wire Module | Nylon |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 31.12 |
| Ship length (cm) | 40.01 |
| Ship width (cm) | 22.86 |
| Country of Origin | MX |
Documentation:
Product Variants
| Model | Phase | Number Of Poles | Number Of Wires | Ip Rating | Current Rating | Voltage Rating | Amps | Grounding | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

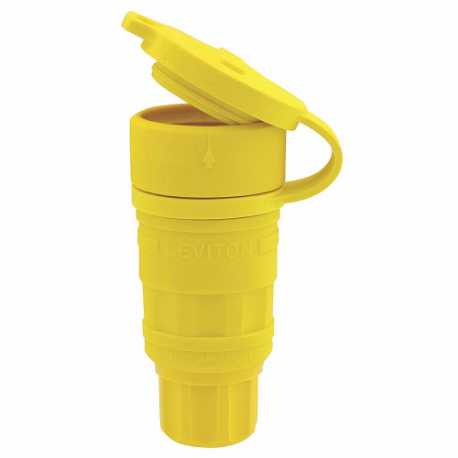

| 25W04 | Single | 2 | 2 | IP66, IP67, IP69K | 15A | 125V AC | 15A | Non Grounded | €73.86 | |
| 27W81 | Three | 4 | 5 | IP67 | - | - | 20A | Grounded | €195.16 | |
| 29W81 | Three | 4 | 5 | IP69K | 30A | 120/208V AC | 30A | Grounded | €247.93 | |
| 27W07 | Single | 2 | 2 | IP66, IP67, IP69K | 20A | 250V AC | 20A | Non Grounded | €78.91 | |
| 27W82 | Three | 4 | 5 | IP69K | 20A | 277/480V AC | 20A | Grounded | €280.03 | |
| 25W34 | Single | 2 | 3 | IP66, IP67, IP69K | 15A | 277V AC | 15A | Grounded | €106.12 | |
| 29W82 | Three | 4 | 5 | IP67 | 30A | 277/480V AC | 30A | Grounded | €327.68 |
