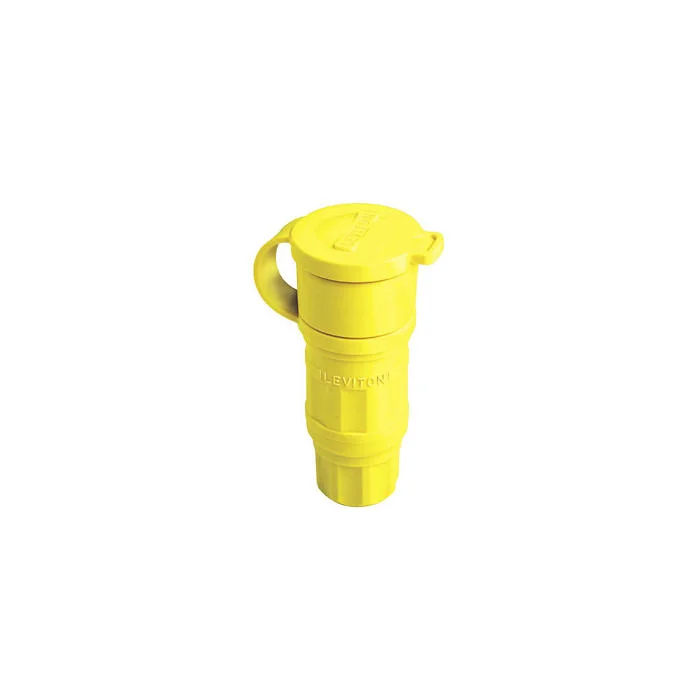

LEVITON 29W81 Grounding Watertight Cable Mount Locking Connector, 3-Phase, 120/208 VAC, 30 A, 4 Poles, 5 Wires, Yellow
Item: CR9GYKModel: 29W81Cross Ref: 792TF8
7 In Stock
Ships within 2 days via
5.00% off
€235.53 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 30A |
| Assembly Screws Grade | Grade 300 |
| Assembly Screws Material | Stainless Steel |
| Blades/contacts | Nickel Plated Brass |
| Body Interior | Nylon |
| Body Material | EPTR Rubber |
| Bushing Material | Santoprene TPV |
| Cap Type | Press On Cap |
| Color | Yellow |
| Compression Nut, Strain Relief | Nylon |
| Connection Orientation | Straight |
| Connection Type | WYE |
| Contact Material | Nickel Plated Brass |
| Cord Grip Range | 0.625" to 1.125" |
| Current Limiting | Full Rated Current |
| Current Rating | 30A |
| Device Type | Locking Connector |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Environment | Wet |
| Face Dia. | 2 3/4" |
| Face Diameter | 2.75" |
| Flammability | Rated V-2 Per UL 94 |
| For Environment | Wet |
| For Maximum Cable Diameter | 1 1/8" |
| For Minimum Cable Diameter | 5/8" |
| Grade | General Use |
| Grounding | Grounded , Grounding |
| Housing Color | Yellow |
| Housing Material | Santoprene Tpv |
| Insulation Material | Nylon |
| Ip Rating | IP69K |
| Market | Industrial |
| Max. Operating Temp. | 60°C |
| Maximum Wire Size | 8 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 12 AWG |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | NEMA L21-30R |
| No. Of Phase | 3 |
| Number Of Poles | 4 |
| Number Of Wires | 5 |
| Operating Temp. | -40°C to +60°C |
| Outside Dia. | 3 11/25" |
| Outside Diameter | 3.44" |
| Overall Length | 5.38" |
| Phase | Three |
| Polarized | Yes |
| Product Datasheet | leviton-5410-w.pdf |
| Resistance Properties | Watertight |
| Shrouded | Yes |
| Standards | Ansi C73, Csa C22.2 No. 42 File Lr-406, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | #12 to #8 |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Electroless Nickel Coated |
| Terminal Screws Material | Brass |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 120/208V AC |
| Voltage Rating | 120/208V AC |
| Wire | 5 |
| Wire Connection Type | Screw Terminals |
| Wire Module | Nylon |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 31.12 |
| Ship length (cm) | 40.01 |
| Ship width (cm) | 6.99 |
| Country of Origin | MX |
Documentation:
Product Variants
| Model | Phase | Number Of Poles | Number Of Wires | Ip Rating | Current Rating | Voltage Rating | Amps | Grounding | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 25W04 | Single | 2 | 2 | IP66, IP67, IP69K | 15A | 125V AC | 15A | Non Grounded | €73.86 | |
| 27W81 | Three | 4 | 5 | IP67 | - | - | 20A | Grounded | €195.16 | |
| 27W07 | Single | 2 | 2 | IP66, IP67, IP69K | 20A | 250V AC | 20A | Non Grounded | €78.91 | |
| 27W82 | Three | 4 | 5 | IP69K | 20A | 277/480V AC | 20A | Grounded | €280.03 | |
| 25W47 | Single | 2 | 3 | IP66, IP67, IP69K | 15A | 125V AC | 15A | Grounded | €73.89 | |
| 25W34 | Single | 2 | 3 | IP66, IP67, IP69K | 15A | 277V AC | 15A | Grounded | €106.12 | |
| 29W82 | Three | 4 | 5 | IP67 | 30A | 277/480V AC | 30A | Grounded | €327.68 |
