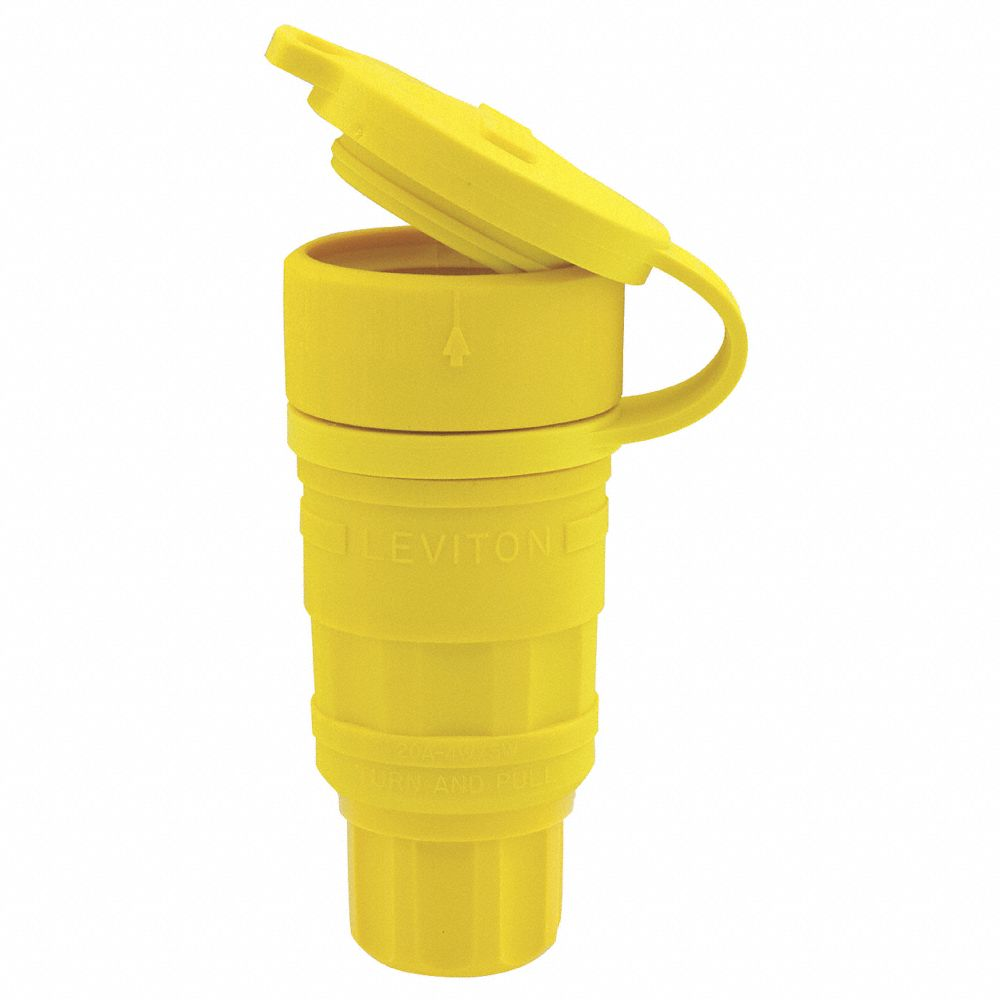

LEVITON 27W49 Grounding Watertight Cable Mount Locking Connector, 1 Phase, 277 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Item: EA6QAWModel: 27W49Cross Ref: 792TC9
7 In Stock
Ships within 2 days via
5.00% off
€133.65 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Watertight Locking Connector |
| Amps Rating | 20A |
| Ansi | C-73 |
| Application | Industrial Applications |
| Assembly Screws | Stainless Steel 300 |
| Cap Type | Press On Cap |
| Comm Code Enhanced | 51300 |
| Connection Orientation | Straight |
| Cord Grip Range (in) | 3/8" to 7/8" |
| Cord Size | 3/8" to 7/8" |
| Flammability | Rated V-2 per UL 94 |
| For Max. Cable Dia. | 7/8" |
| For Min. Cable Dia. | 3/8" |
| Grade | Grade Industrial |
| Grounding | Grounding |
| Height | 2.31" |
| Housing Color | Yellow |
| Hp | 2 hp |
| Ip Rating | IP66, IP67, IP69K, IP67, IP66, IP69K |
| Length | 15 3/4" |
| Material | EPTR Rubber Body, Nylon Interior, Wire Module |
| Material Safety Data Sheet | Ht |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 16 AWG |
| Nema | WD-6 |
| Nema Configuration | L7-20 , L7-20R |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| No. Of Poles | 2 |
| No. Of Wire | 3 |
| Overall Length | 5 13/25" |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | leviton-5410-w.pdf |
| Resistance Properties | Watertight |
| Resistance Property | General Purpose |
| Shrouded | Yes |
| Temp. Rise | Max 30°C After 250 Cycles OL at 200% Rated Current |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Electroless Nickel-Coated Brass |
| Torque | 12 lbs.-in. to 14 lbs.-in. |
| Type | Polarized |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 277V AC |
| Wire Connection Type | Screw Terminal |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 3.56 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 40.01 |
| Ship width (cm) | 31.12 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Ip Rating | Face Dia. | Amps | Grounding | Max. Wire Size | Min. Wire Size | Nema Receptacle Configuration | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
25W04 | 1 | IP66, IP67, IP69K | 2.3" | 15A | Non Grounded | 10 AWG | 18 AWG | NEMA L1-15R | €73.86 | |
 |
27W81 | 3 | IP67 | 2 1/2" | 20A | Grounded | 10 AWG | 16 AWG | NEMA L21-20R | €195.16 | |
 |
29W81 | 3 | IP69K | 2 3/4" | 30A | Grounded | 8 AWG | 12 AWG | NEMA L21-30R | €247.93 | |
 |
27W07 | 1 | IP66, IP67, IP69K | 2.3" | 20A | Non Grounded | 10 AWG | 16 AWG | NEMA L2-20R | €78.91 | |
 |
27W82 | 3 | IP69K | 2 1/2" | 20A | Grounded | 10 AWG | 16 AWG | NEMA L22-20R | €280.03 | |
 |
25W47 | 1 | IP66, IP67, IP69K | 1.78" | 15A | Grounded | 10 AWG | 18 AWG | NEMA L5-15R | €73.89 | |
 |
25W34 | 1 | IP66, IP67, IP69K | 2.3" | 15A | Grounded | 10 AWG | 18 AWG | NEMA L7-15R | €106.12 |
