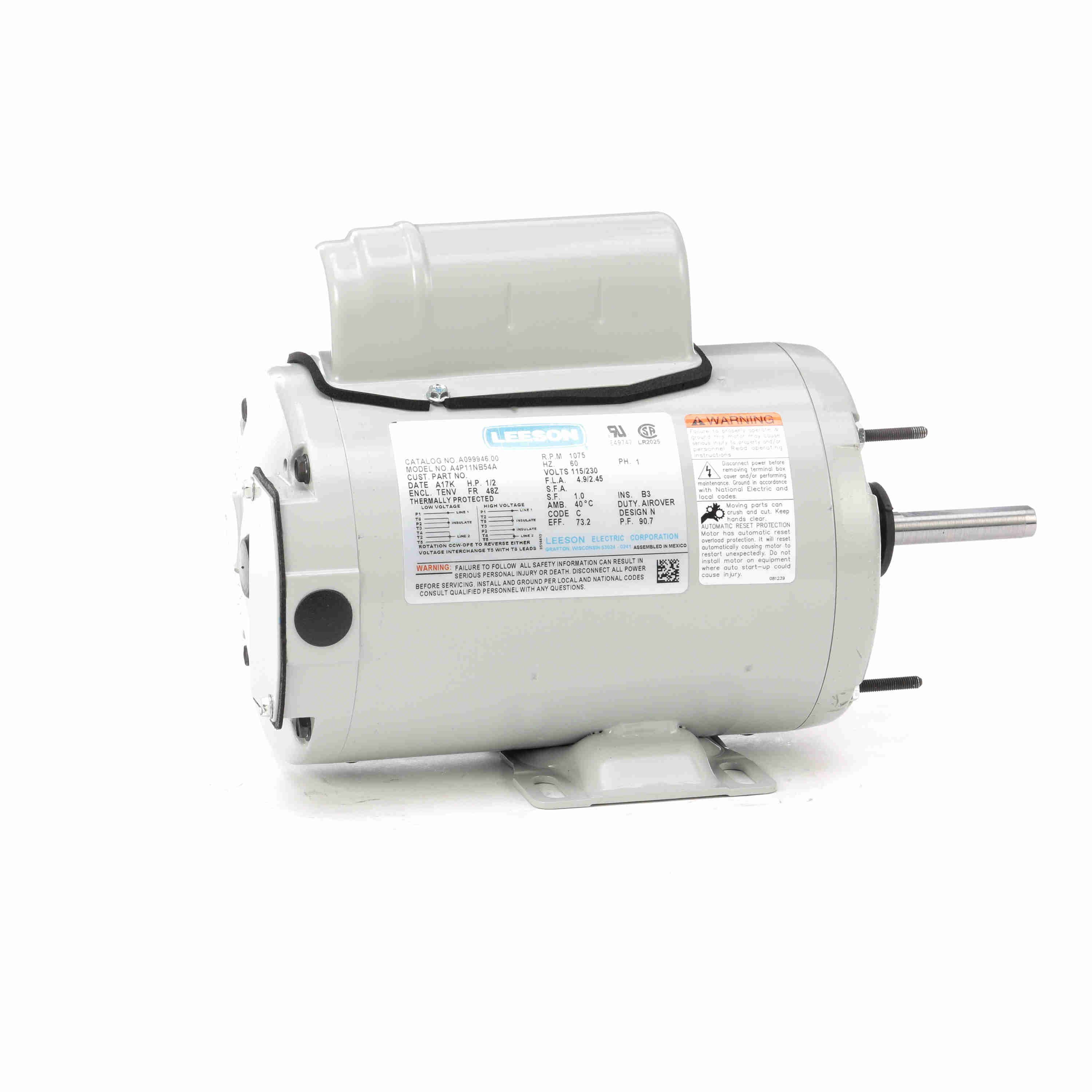

LEESON A099946.00 A4P11NB54A Agricultural Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 1200 RPM
Get it by Monday, Dec 22
10.00% off
€662.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Amps | 2.5/4.9A |
| Application Type | Farm Duty Motors, Fan And Blower Motors, General Purpose HVAC Motors |
| Assembly/box Mounting | F1 Only |
| Code | C |
| Curvepoint | Pull Up |
| Design | C, N |
| Design Code | No |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 73.2% |
| Electrical Type | Permanent Split Capacitor |
| Enclosure Type | Teao |
| Frame | 48Z |
| Frame Length | 6 3/4" |
| Frame Material | Rolled Steel |
| Frame Size | 48Z |
| Frame Suffix | Z |
| Frequency | 60 Hz |
| Full Load Amps | 4.9/2.45A |
| Height | 9.38" |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Ip Code | 43 |
| Kva Code | C |
| Kw | 0.37 kW |
| Length | 15.82" |
| Load | 0.5 |
| Material | Rolled Steel |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Rigid Base, Extended Thru Bolt |
| Nameplate Rpm | 1075 RPM |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.37 kW |
| Packaging | F |
| Phase | 1 |
| Power | 0.37 kW |
| Power Factor | 90.7 |
| Resistance Main | 0 ohms |
| Rotation Type | Selective CCW |
| Rpm | 1075 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 6/25" |
| Shaft Type | Single Special Extension |
| Starting Method | Across The Line |
| Synchronous Rpm | 1200 RPM |
| Thermal Protection | Automatic |
| Torque Rating | 37.6 lbs.-ft. |
| Type | PN |
| Variable Torque Speed Range | 10 |
| Voltage | 115/230V AC |
| Voltage Rating | 115/230V AC |
| Width | 5.78" |
Shipping Info:
| Ship weight (kg) | 11.7 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 40.18 |
| Ship width (cm) | 31.9 |
| Country of Origin | MX |
Product Details:
- Supersedes Leeson - M099946.00 / A4P11NB28-A
- Eff 100%: 73.2
- Eff 75%: 69.9
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 92005-6
- Winding: PE4861812
- GROUP: 3
- Paint: GRAY - LIGHT
Product Variants
| Product | Model | Voltage | Full Load Amps | Nameplate Rpm | Hp | Frame | Shaft Dia. | Design | Power Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
100604.00 | 115/208-230V | 3.6/1.8-1.9A | - | 33/100 hp | S56Z | 5/8" | D, N | 92 | €708.48 | |
 |
100699.00 | 115-230V | 2.8/1.4A | 1625 RPM | 1/4 hp | 48Y | 1/2" | D, N | 87 | €338.57 | |
 |
100700.00 | 115/230V AC | 3.2/1.6A | 1625 RPM | - | 48Y | 1/2" | D, N | 94 | €641.87 | |
 |
100701.00 | 115-230V | 5/2.5A | 1625 RPM | 1/2 hp | 48Y | 1/2" | F, N | 87 | €694.88 |
