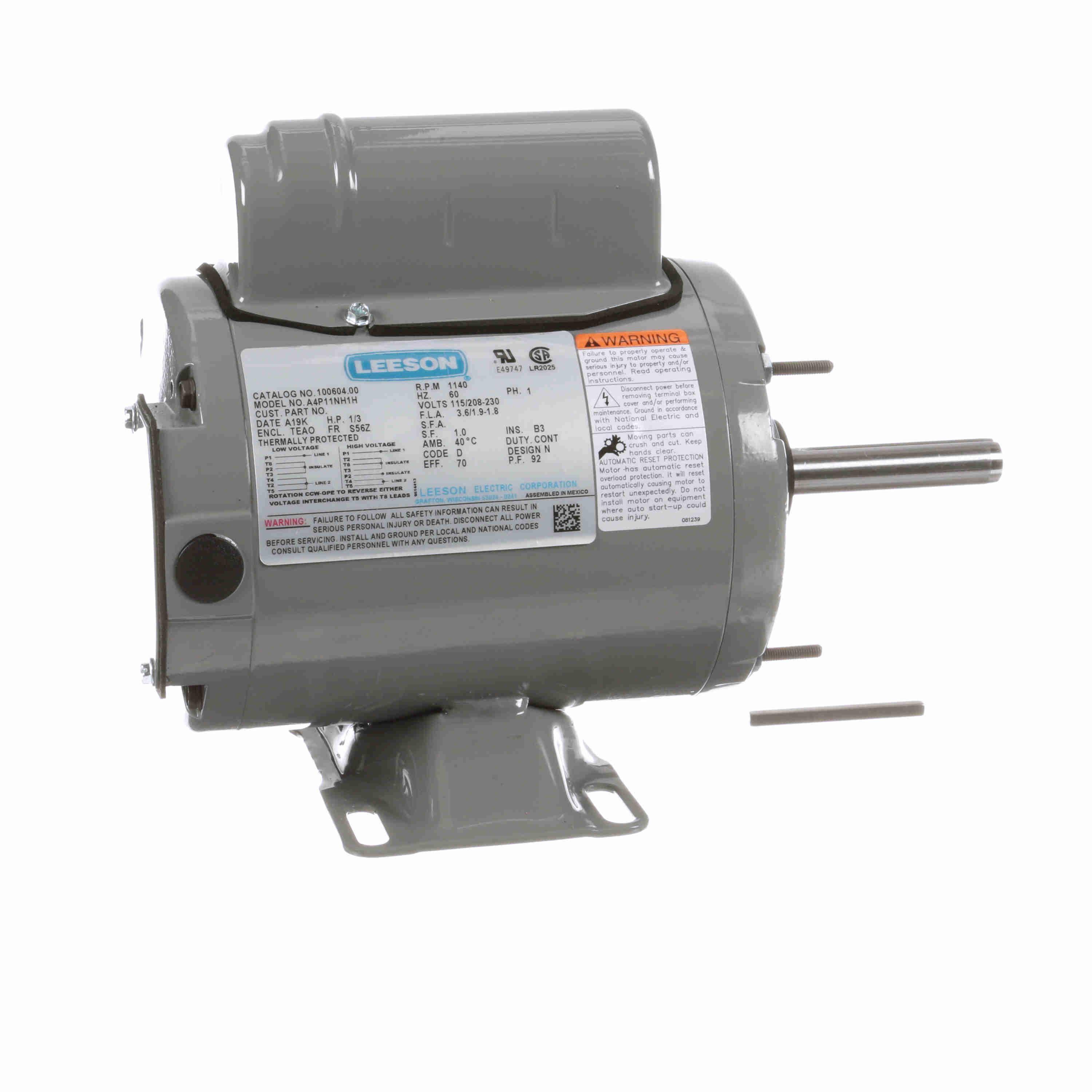

LEESON 100604.00 A4P11NH1H Agricultural Motor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 1200 RPM
Get it by Tuesday, Dec 23
10.00% off
€637.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Amps | 3.6/1.8A |
| Assembly | LO100604 |
| Code | D |
| Design | D, N |
| Design Code | No |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 70% |
| Electrical Type | Permanent Split Capacitor |
| Enclosure Type | Teao |
| Frame | S56Z |
| Frame Length | 5 3/4" |
| Frame Material | Rolled Steel |
| Frame Type | S56Z |
| Frequency | 60 Hz |
| Full Load Amps | 3.6/1.8-1.9A |
| Grease Type | Beacon 325 |
| Height | 8 3/4" |
| Hp | 33/100 hp |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kva Code | D |
| Kw | 0.25 kW |
| Length | 13 3/4" |
| Max. Rpm | 1140 RPM |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Rigid Base |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.246 kW |
| Packaging | B |
| Phase | 1 |
| Power | 0.246 kW |
| Power Factor | 92 |
| Resistance Main | 9.88 ohms |
| Rpm | 1100-1200 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 3 3/25" |
| Shaft Type | Single Special Extension |
| Starting Method | Across The Line |
| Thermal Protection | Automatic |
| Type | PN |
| Voltage | 115/208-230V |
| Width | 7 22/25" |
Shipping Info:
| Ship weight (kg) | 11.7 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| Country of Origin | MX |
Product Details:
- Eff 100%: 70
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: A-92005-6
- Winding: PE4862007
- GROUP: 3
- Paint: GRAY - LIGHT
Product Variants
| Product | Model | Voltage | Full Load Amps | Nameplate Rpm | Hp | Frame | Shaft Dia. | Design | Power Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

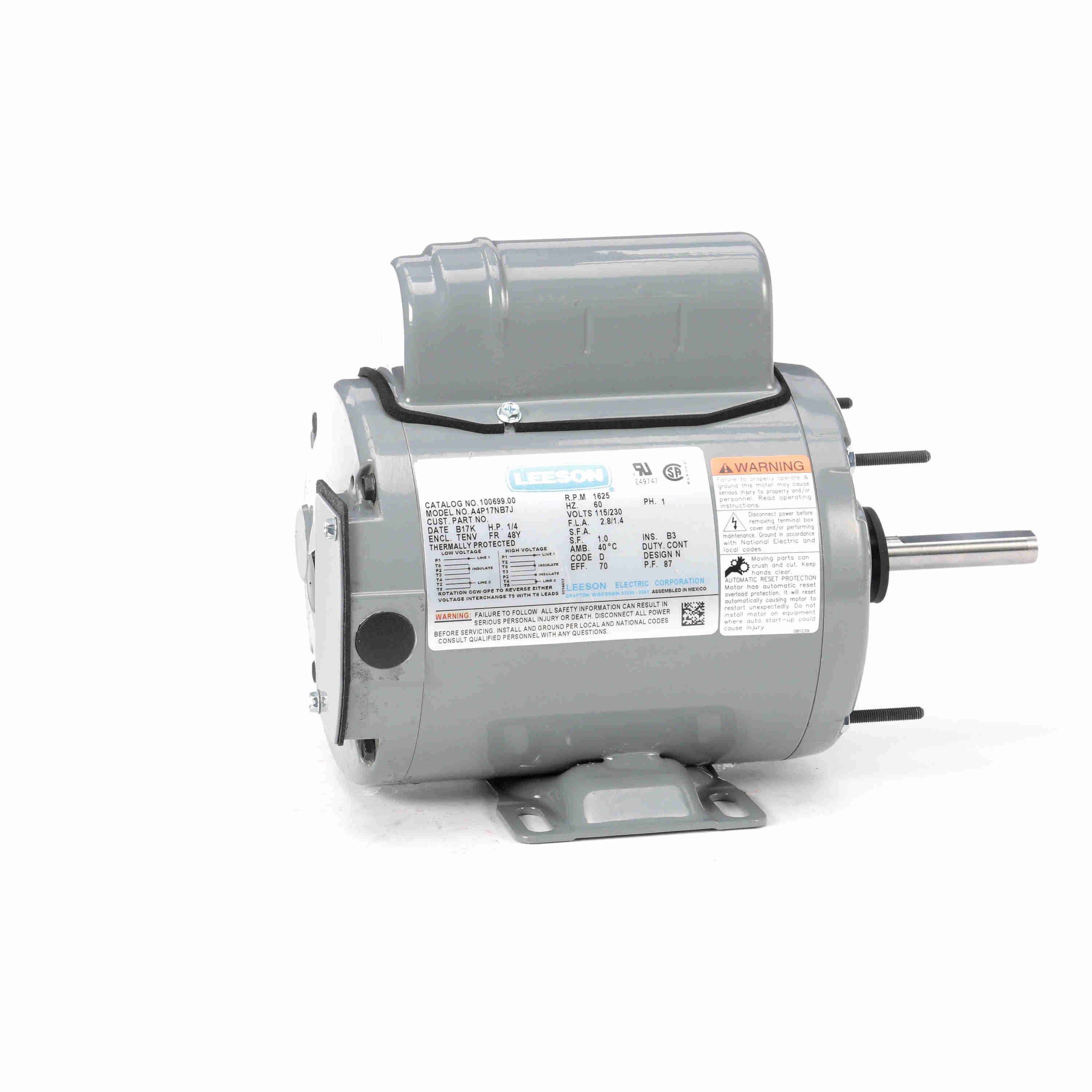

100699.00 | 115-230V | 2.8/1.4A | 1625 RPM | 1/4 hp | 48Y | 1/2" | D, N | 87 | €338.57 | |
 |

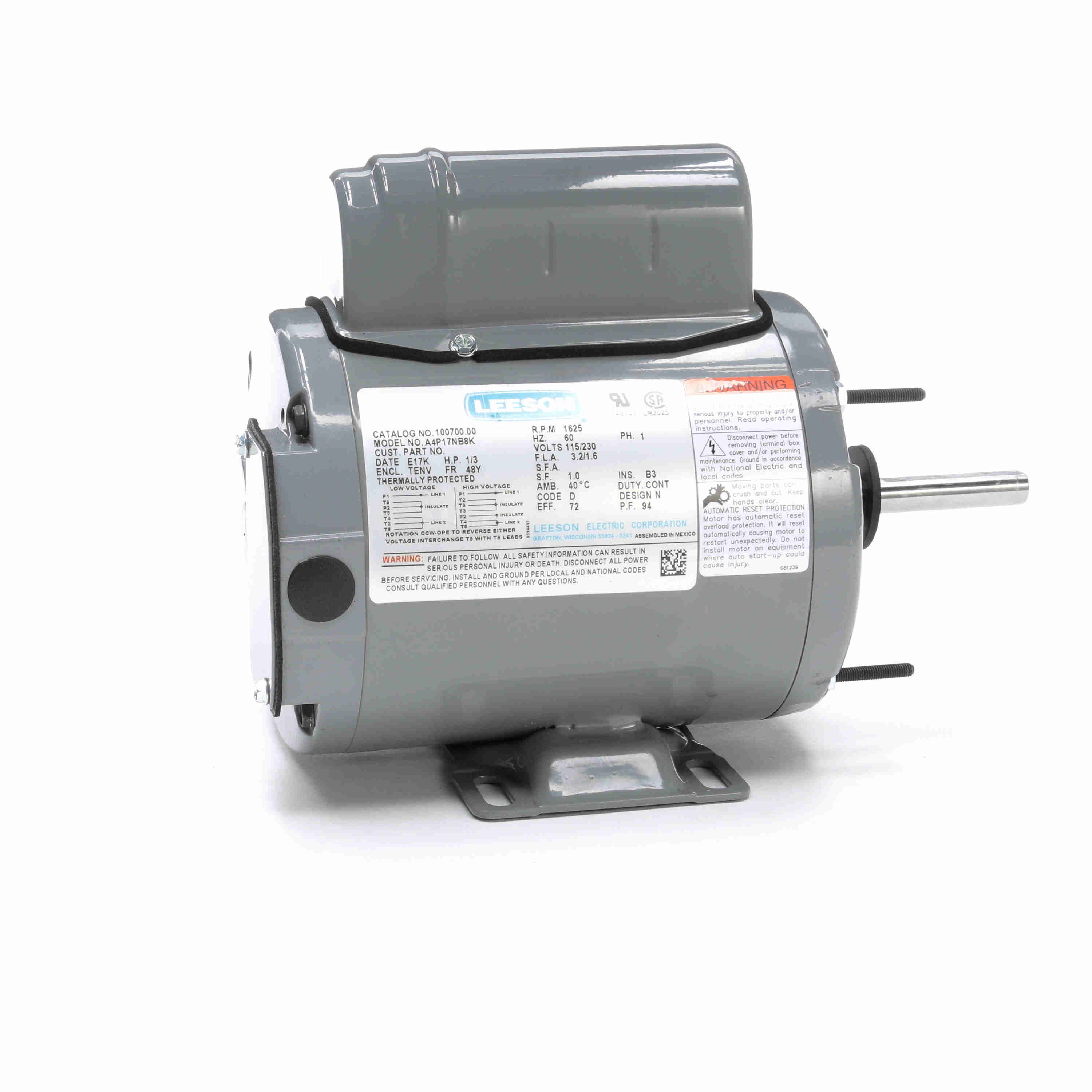

100700.00 | 115/230V AC | 3.2/1.6A | 1625 RPM | - | 48Y | 1/2" | D, N | 94 | €641.87 | |
 |

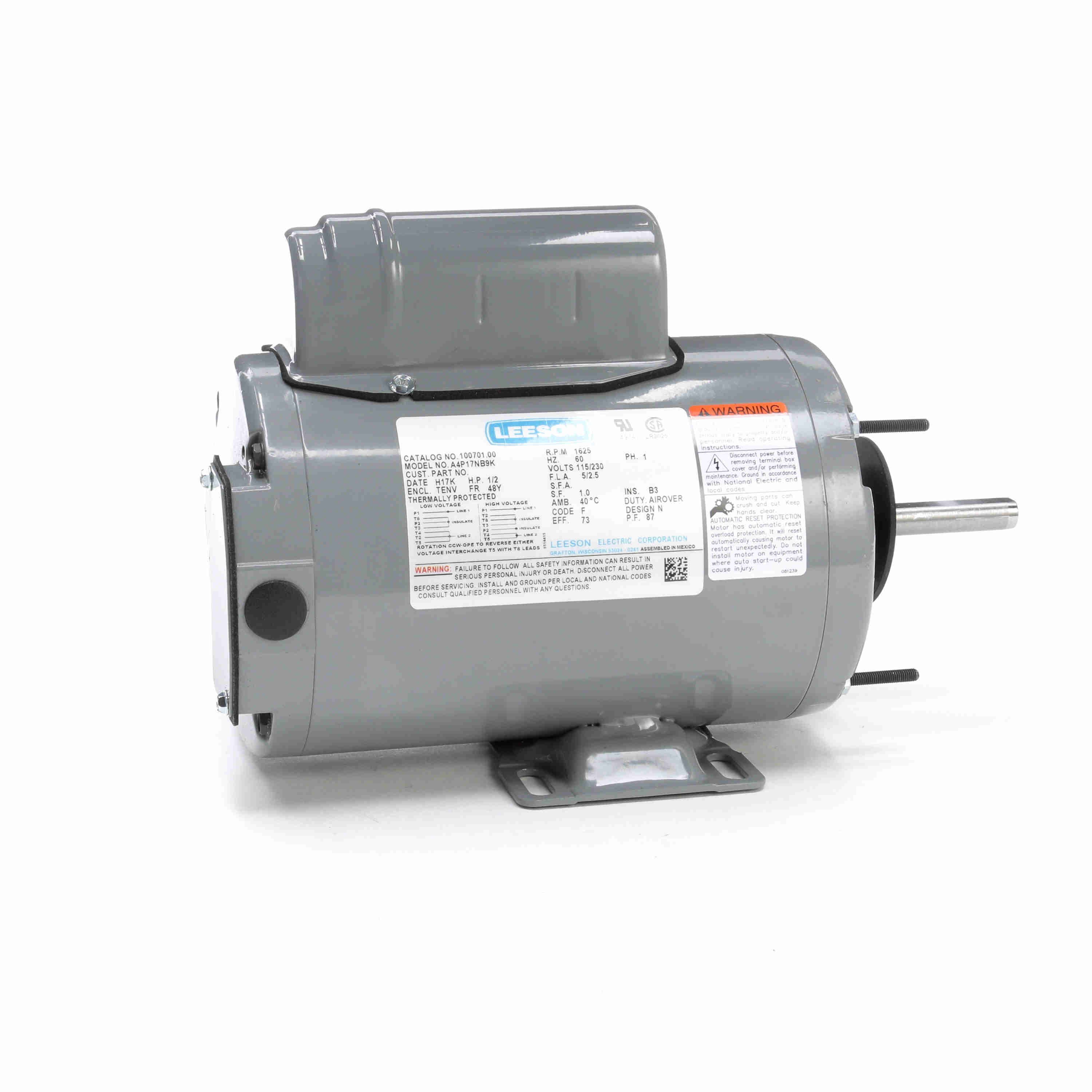

100701.00 | 115-230V | 5/2.5A | 1625 RPM | 1/2 hp | 48Y | 1/2" | F, N | 87 | €694.88 | |
 |
A099946.00 | 115/230V AC | 4.9/2.45A | 1075 RPM | 1/2 hp | 48Z | 1/2" | C, N | 90.7 | €736.65 |
