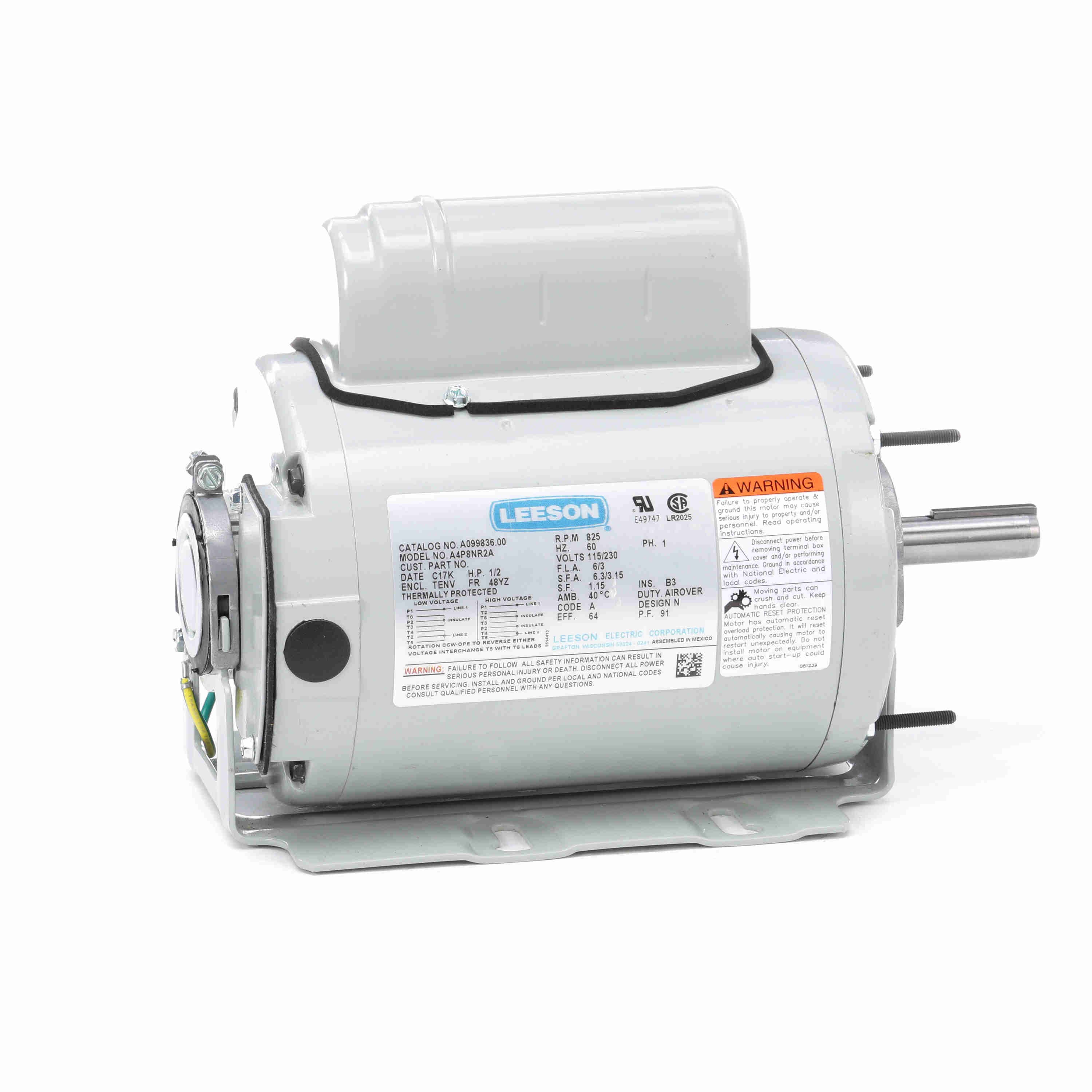

LEESON A099836.00 A4P8NR2A Single Phase Motor | AJ2UPR A4P8NR2A

LEESON A099836.00 A4P8NR2A Agricultural Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 900 RPM

Item: AJ2UPRModel: A099836.00Cross Ref: 820HL0 / A4P8NR2A
Check Availability
In Stock
Hp
Nameplate Rpm

Get it by Tuesday, May 19

€468.03 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Single Phase Motor
Ambient Temp. 40°C
Amps 3/6A
Application Type Farm Duty Motors, Fan And Blower Motors, General Purpose HVAC Motors
Assembly/box Mounting F1 Only
Code A
Curvepoint Full Load
Design A, N
Design Code No
Diameter 5.67"
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 64%
Electrical Type Permanent Split Capacitor
Enclosure Type Teao
Frame 48YZ
Frame Length 6"
Frame Material Rolled Steel
Frame Size 48YZ
Frame Suffix YZ
Frequency 60 Hz
Full Load Amps 6/3A
Height 8 3/4"
Hp 1/2 hp
Insulation Class Class B
Ip Code 43
Kva Code A
Kw 0.37 kW
Length 13 3/4"
Load 0.75
Material Rolled Steel
Motor Enclosure Design Totally Enclosed Non Ventilated
Motor Mounting Type Resilient Base
Motor Orientation Horizontal
Motor Shaft Rotation Selective Counter Clockwise
Motor Type Permanent Split Capacitor
Mounting Type Resilient Base, Extended Thru Bolt
No. Of Poles 8
No. Of Speeds 1
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Kw 0.37 kW
Overall Length 10.81"
Packaging F
Phase 1
Power 0.37 kW
Power Factor 91
Product Datasheet leeson-a099836-00.pdf
Resistance Main 0 ohms
Rotation Type Selective CCW
Rpm 825 RPM
Service Factor 1.15
Shaft Dia. 5/8"
Shaft Length 2"
Shaft Type Single Special Extension
Starting Method Across The Line
Synchronous Rpm 900 RPM
Thermal Protection Automatic
Torque Rating 49.4 lbs.-ft.
Torquepct 100
Type PN
Variable Torque Speed Range 10
Voltage 115/230V AC
Voltage Rating 115/230V AC

Shipping Info:

Ship weight (kg) 9.9
Ship height (cm)22.23
Ship length (cm)34.93
Ship width (cm)20.02
Country of OriginMX

Product Details:

    • Supersedes Leeson - M099836.00 / A4P8NR1-A
    • Eff 100%: 64
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6203
    • Nameplate: 92005-6
    • Winding: PE488252
    • GROUP: 3
    • Paint: VERIFY
    • S. F Amps: 6.3 / 3.15
