LEESON 100768.00 A4P17NJ2E Agricultural Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Tuesday, Feb 17
10.00% off
€673.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Amps | 4.4/2.2A |
| Assembly | LO100768 |
| Code | D |
| Design | D |
| Design Code | No Design Code |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 75% |
| Electrical Type | Permanent Split Capacitor |
| Enclosure Type | Tenv |
| Frame | S56 |
| Frame Length | 6" |
| Frame Material | Rolled Steel |
| Frame Type | S56 |
| Frequency | 60 Hz |
| Full Load Amps | 4.4/2.2A |
| Height | 8 3/4" |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kva Code | D |
| Kw | 0.37 kW |
| Length | 13 3/4" |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Type | Resilient Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Resilient Base |
| Nameplate Rpm | 1625 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.37 kW |
| Packaging | B |
| Phase | 1 |
| Power | 0.37 kW |
| Power Factor | 98 |
| Resistance Main | 5.68 ohms |
| Rpm | 1625 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | Automatic |
| Type | PN |
| Voltage | 115-230V |
| Width | 7 22/25" |
Shipping Info:
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| Country of Origin | MX |
Product Details:
- Eff 100%: 75
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: A-92005-6
- Winding: PE484445
- GROUP: 3
- Paint: GRAY - LIGHT
Product Variants
| Product | Model | Voltage | Hp | Full Load Amps | Service Factor | Nameplate Rpm | Frame | Shaft Dia. | Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

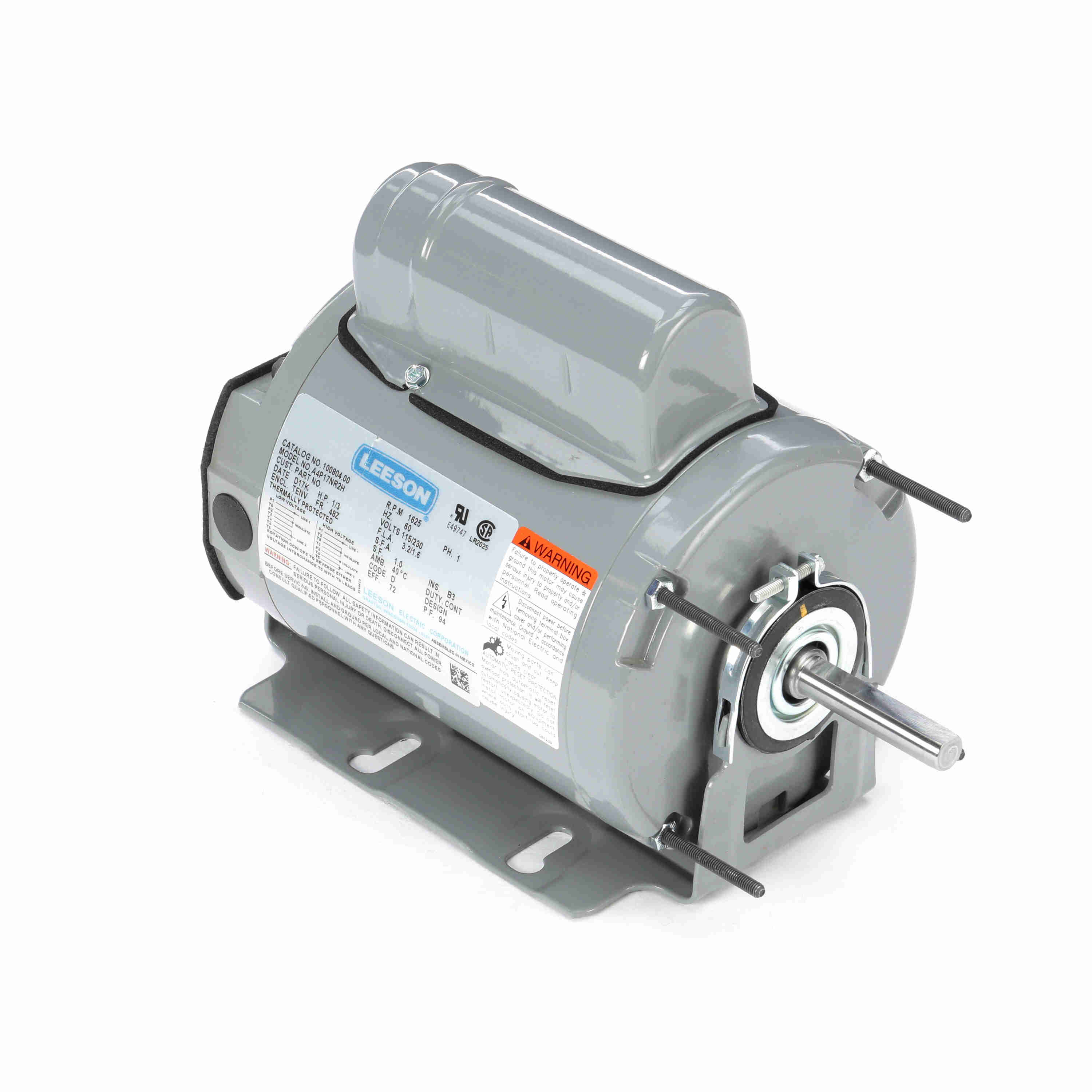

100805.00 | 115-230V | 1/4 hp | 2.8/1.4A | 1 | 1075 RPM | S56Z | 5/8" | 66% | €108.87 | |
 |

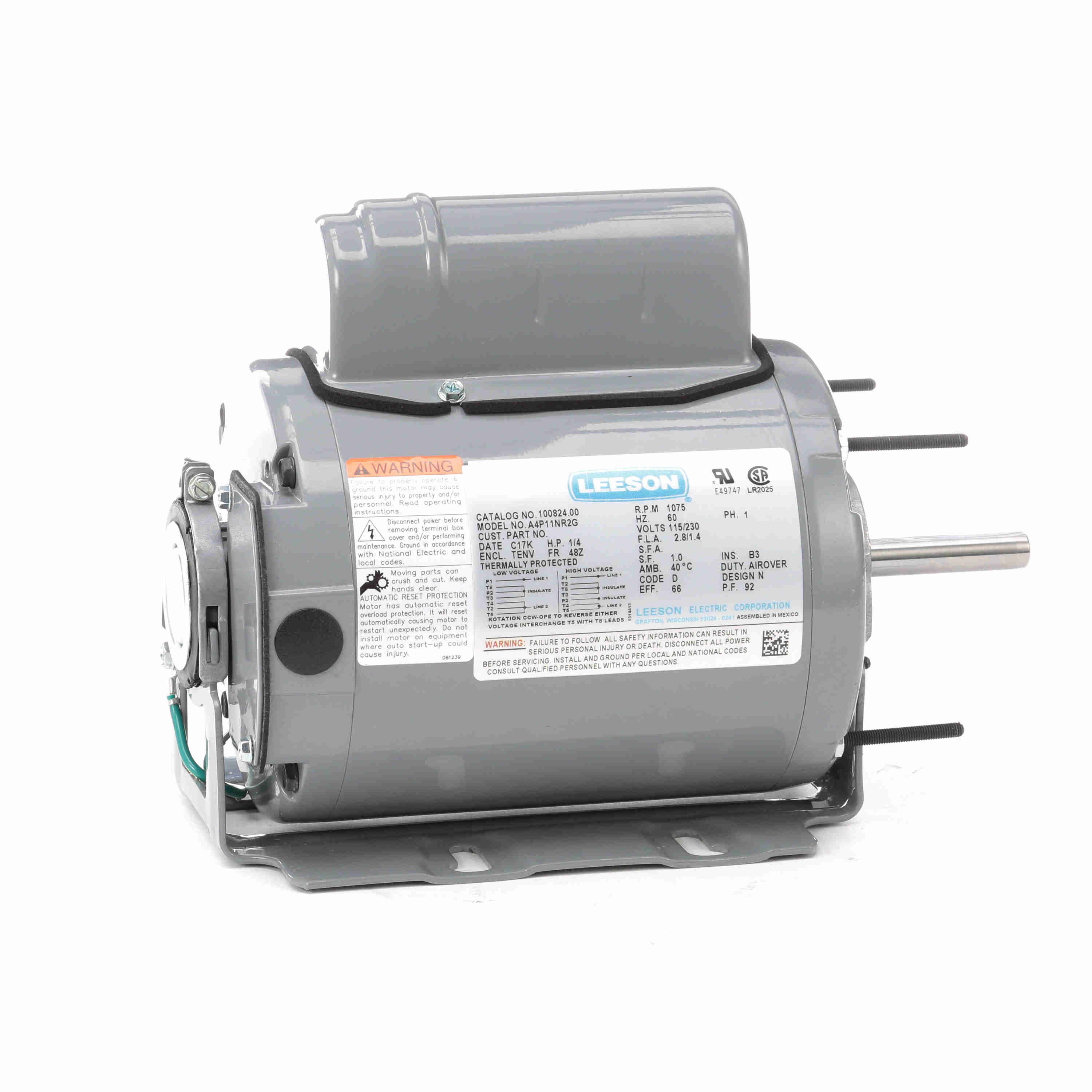

100824.00 | 115-230V | 1/4 hp | 2.8/1.4A | 1 | 1075 RPM | 48Z | 1/2" | 66% | €103.95 | |
 |
111321.00 | 115-230V | 1/2 hp | 6/3A | 1 | 1075 RPM | 56HZ | 5/8" | 62% | €496.64 | |
 |

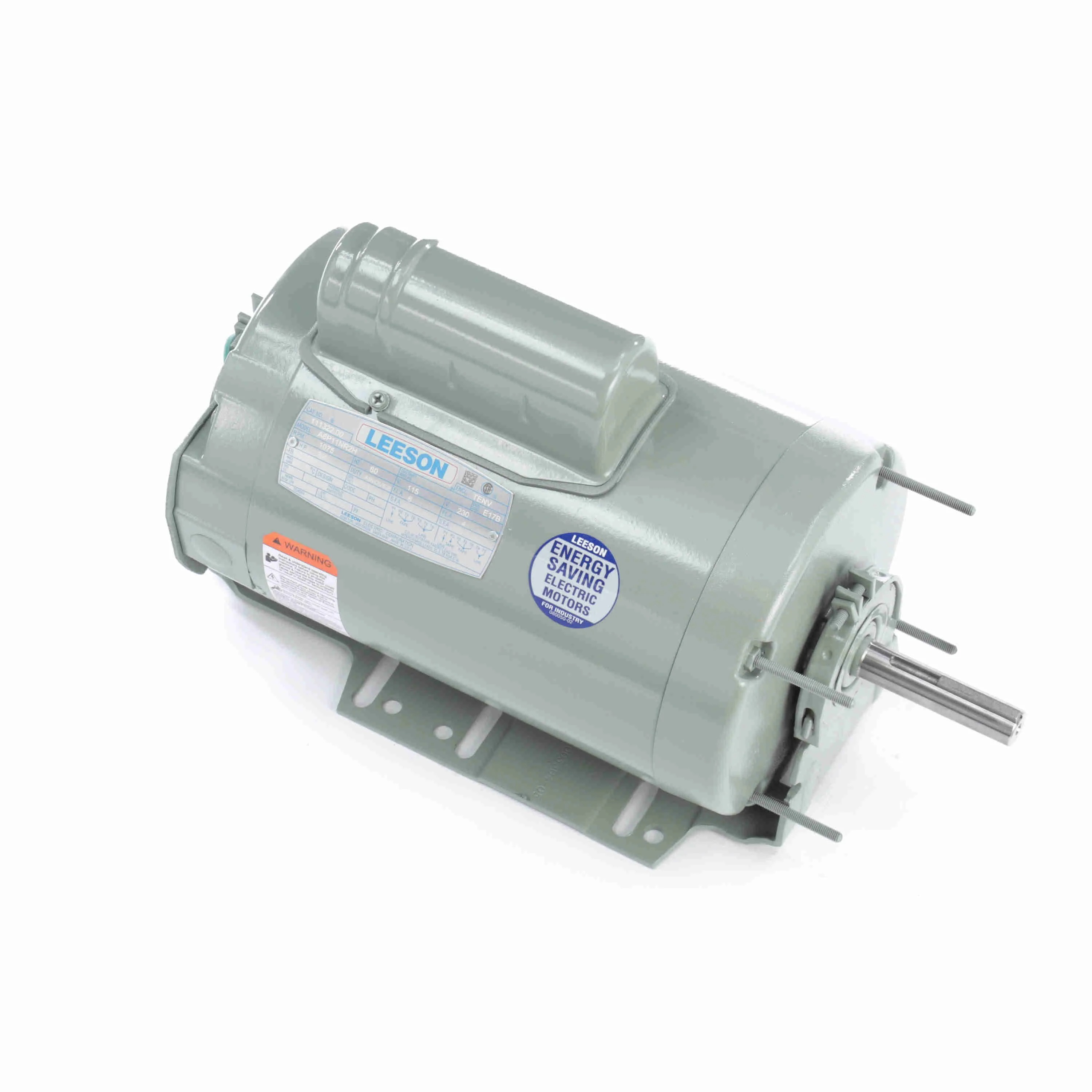

111322.00 | 115-230V | 3/4 hp | 4/8A | 1 | 1075 RPM | 56HZ | 5/8" | 70% | €1,046.65 | |
 |
A099836.00 | 115/230V AC | 1/2 hp | 6/3A | 1.15 | - | 48YZ | 5/8" | 64% | €468.03 |
