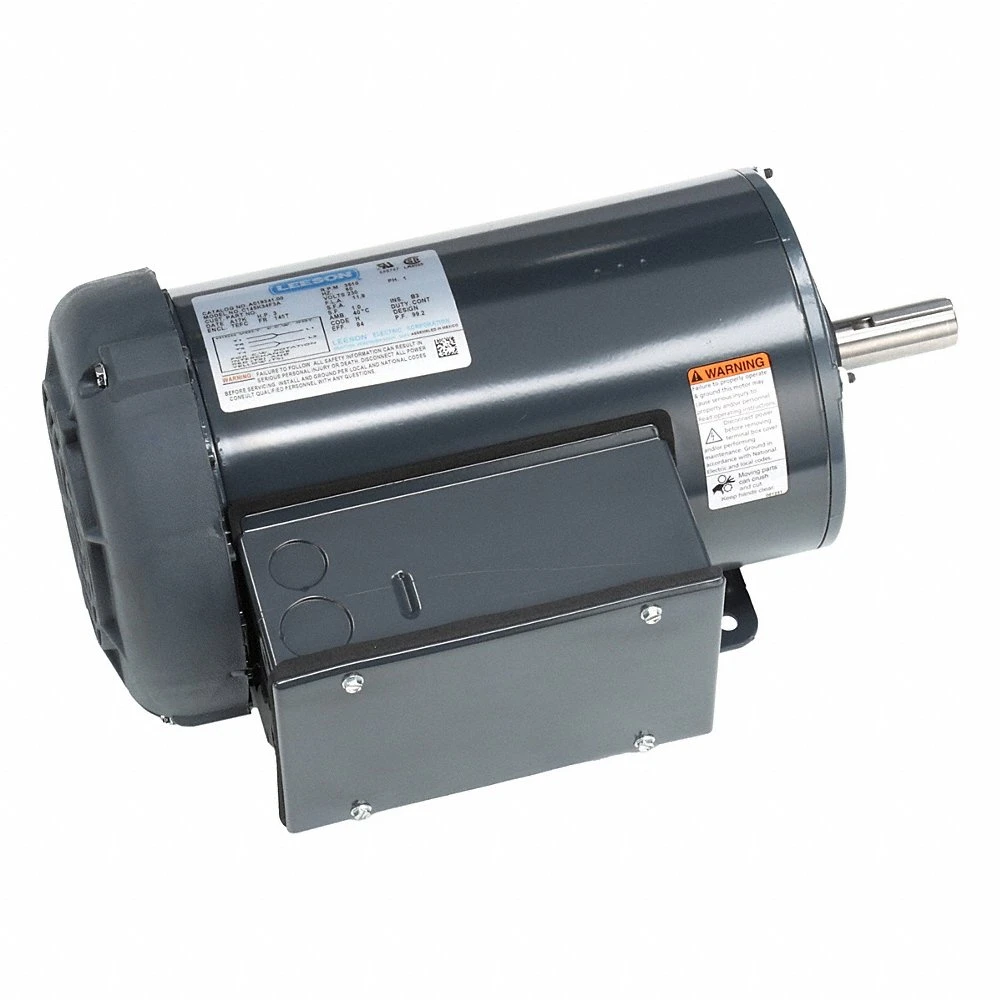

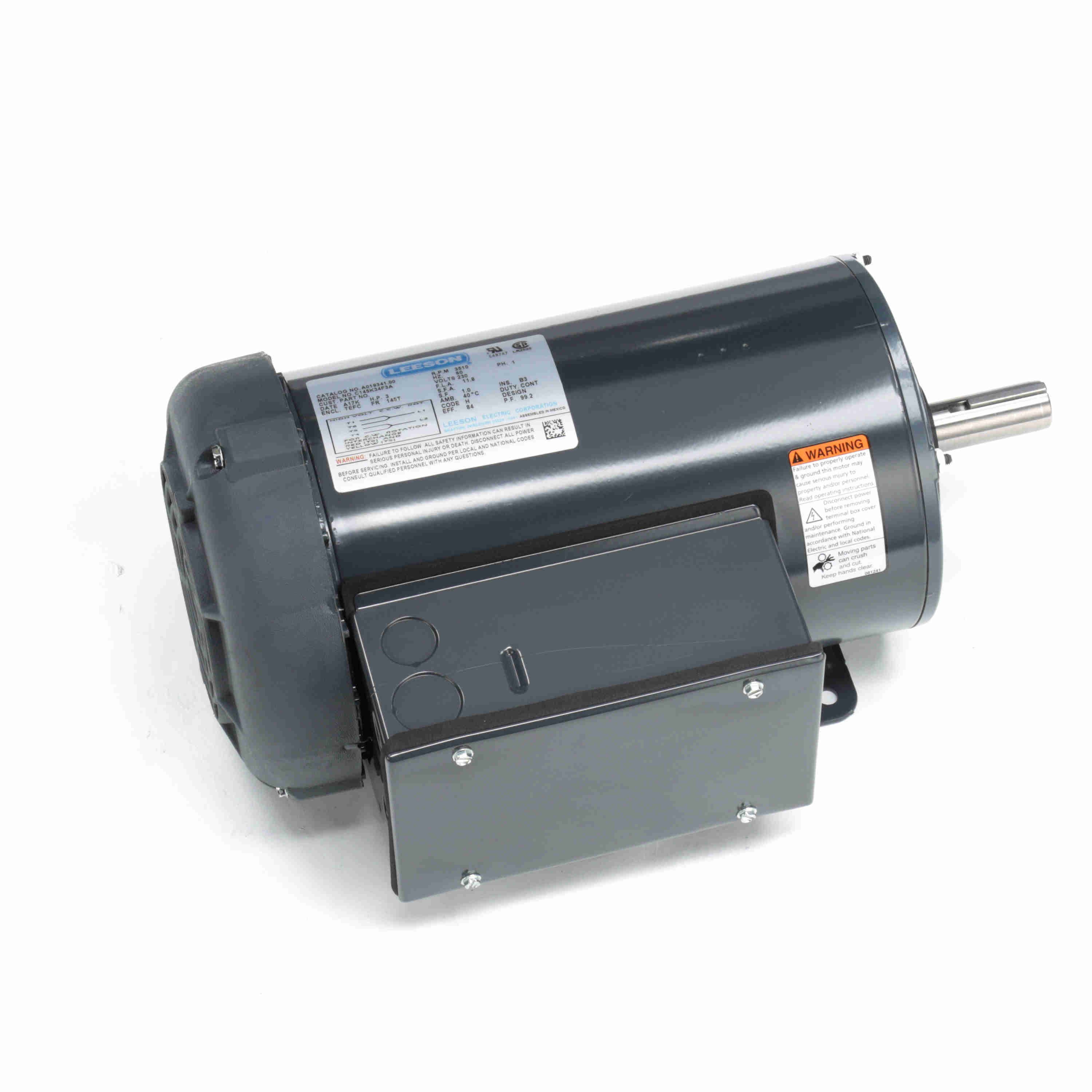

LEESON A019341.00 C145K34F3A General Purpose Motor, 1 Ph, 3 HP, 230V AC, 145T Frame Size, 7/8 Inch x 2 1/4 Inch, 60 hz
Get it by Friday, Aug 28
5.00% off
€880.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Frame Type | 145T |
| Frequency | 60 Hz |
| Full Load Amps | 11.8A |
| Hp | 3 hp |
| Insulation Class | Class B |
| Motor Design | Capacitor-Start, Run |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CW, CCW |
| No. Of Speeds | 1 |
| Nominal Voltage | 230V AC |
| Phase | 1 |
| Product Datasheet | leeson-a019341-00.pdf |
| Speed | 3000-3600 RPM |
| Usable @ 208 V | No |
Shipping Info:
| Ship weight (kg) | 22.95 |
| Ship height (cm) | 18.64 |
| Ship length (cm) | 32.69 |
| Ship width (cm) | 16.51 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Phase | Hp | Full Load Amps | Service Factor | Voltage | Frequency | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR46JN0087Y | 1 | 1/3 hp | 3.8-4/1.9-2A | 1.35 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start | €942.30 | |
 |
5KCR46MN0055Y | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €841.44 | |
 |
5KCR46MN0093 | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face | Capacitor Start, Run | €814.28 | |
 |
5KCR46MN0055X | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €886.09 | |
 |
5KCR49PN0099X | 1 | 3/4 hp | 8.8-9/4.4-4.5A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,094.78 | |
 |
5KCR49UN0107 | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face | Capacitor Start | €1,031.58 | |
 |
5KCR49UN0106X | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,060.60 |
