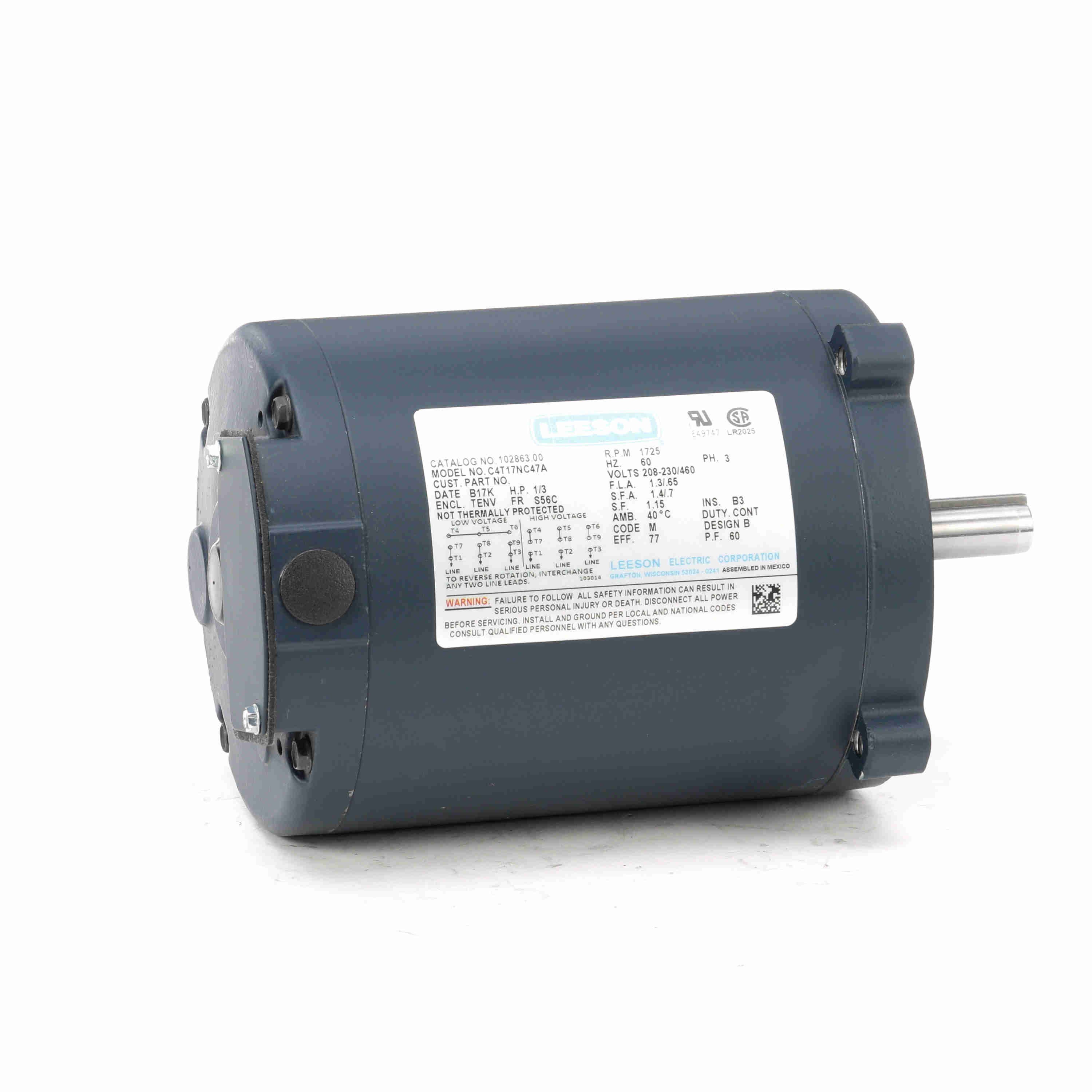

LEESON 102863.00 C4T17NC47A General Purpose Motor, 0.33 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Thursday, Apr 2
€413.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 1.3/0.65A |
| Code | M |
| Conduit Box Position | F1 |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 77% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tenv |
| Frame | S56C |
| Frame Length | 5 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | S56C |
| Frequency | 60 Hz |
| Full Load Amps | 1.3/0.65A |
| Height | 8 3/4" |
| Hp | 33/100 hp |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kva Code | M |
| Kw | 0.25 kW |
| Length | 13 3/4" |
| Max. Rpm | 1725 RPM |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Reversible |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1800 RPM |
| Nema Design | B, M |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.25 kW |
| Packaging | B |
| Phase | 3 |
| Power Factor | 60 |
| Product Datasheet | leeson-102863-00.pdf |
| Resistance Main | 11.27 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TN |
| Voltage | 208-230/460V |
| Width | 7 22/25" |
Shipping Info:
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| Country of Origin | MX |
Product Details:
- Eff 100%: 77
- Bearing OPE: 6203
- Bearing PE: 6203
- Nameplate: A-92005-4
- Winding: TE48462
- GROUP: 3
- Paint: BLUE - LEESON (ENAMEL)
- S. F Amps: 1.4 / .7
Documentation:
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Frequency | Full Load Amps | Mounting Type | Motor Type | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
132596.00 | 230/460V | 1200/1000 RPM | 1 1/2 hp | 60 Hz | 6/3A | C Face, Footless | Squirrel Cage Induction Run | 1.15 | €1,223.71 | |
 |
LM16828 | 230/460V | 1800/1500 RPM | 15 hp | 50/60 Hz | 37.5/18.8A | Round | Squirrel Cage Induction Run | 1, 1.25 | €2,411.81 |
