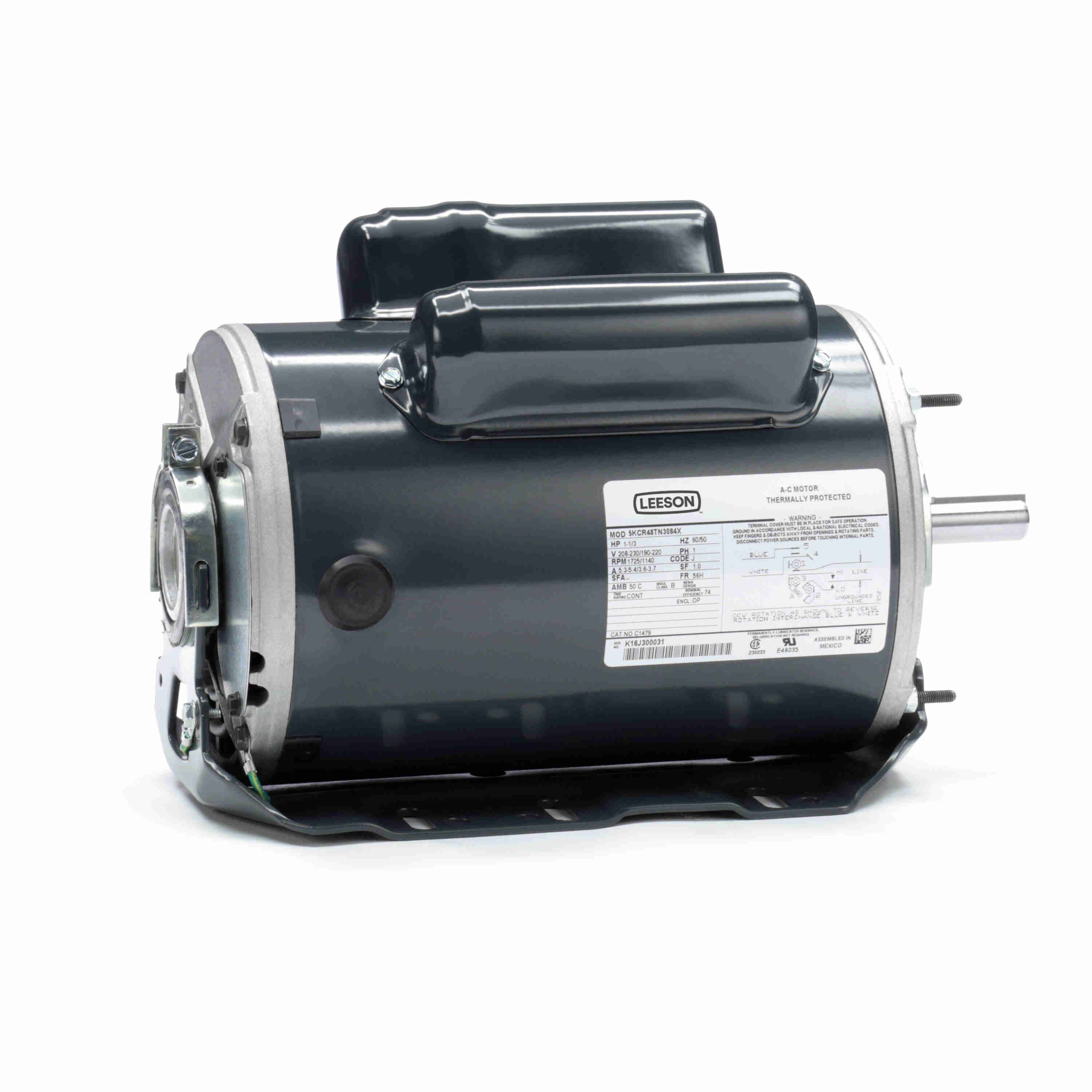

LEESON 5KCR48TN3084X C1479 General Purpose Motor, 1,.33 HP, 1 Phase, 60 Hz, 208-230/190-220V, 1800 RPM
Get it by Tuesday, Dec 23
10.00% off
€1,160.15 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Efficiency | 74% |
| Efficiency Group | Standard |
| Enclosure Type | Open Dripproof |
| Frame | 56H |
| Frame Material | Rolled Steel , Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 5.3-5.4/3.6-3.7A |
| Hp | 1 1/3 hp |
| Hz | 60 Hz |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length | 12 9/16" |
| Length Less Shaft | 10 11/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 122°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start |
| Mounting Type | Cradle Base |
| No. Of Speeds | 1 |
| Nominal Efficiency | 72% |
| Number Of Speeds | 2 |
| Overall Length | 12 9/16" |
| Phase | 1 |
| Rpm | 1725/1140 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Type | Keyed |
| Thermal Protection | Automatic |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 208-230/190-220V AC |
| Warranty | 1 yr. |
| Weight | 36 lbs. |
Shipping Info:
| Ship weight (kg) | 16.2 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 38.46 |
| Ship width (cm) | 25.88 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Motor Mounting Position | Frame | Shaft Length | Motor Enclosure Design | Max. Ambient Temp. | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR49PN3011 | 115V AC | 1/4 hp, 3/4 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | Auto | €807.48 | |
 |
5KCR49PN3011X | 115V AC | 1/4 hp, 3/4 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | Auto | €948.86 | |
 |
5KCR49PN3012X | 208-230V AC | 1/4 hp, 3/4 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | Automatic | €777.24 | |
 |
5KCR49SN3009 | 115V AC | 1 1/3 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | None | €1,005.04 | |
 |
5KCR49SN3009X | 115V AC | 1 1/3 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | Auto | €1,273.25 | |
 |
056C17D2074 | 115/208-230V AC | 3/4 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | Auto | €601.61 | |
 |
5KC49NN0061T | 115/208-230V AC | 1 hp | Horizontal | 56Z | 2 1/4" | Open Dripproof | 104°F | Automatic | €633.45 |
