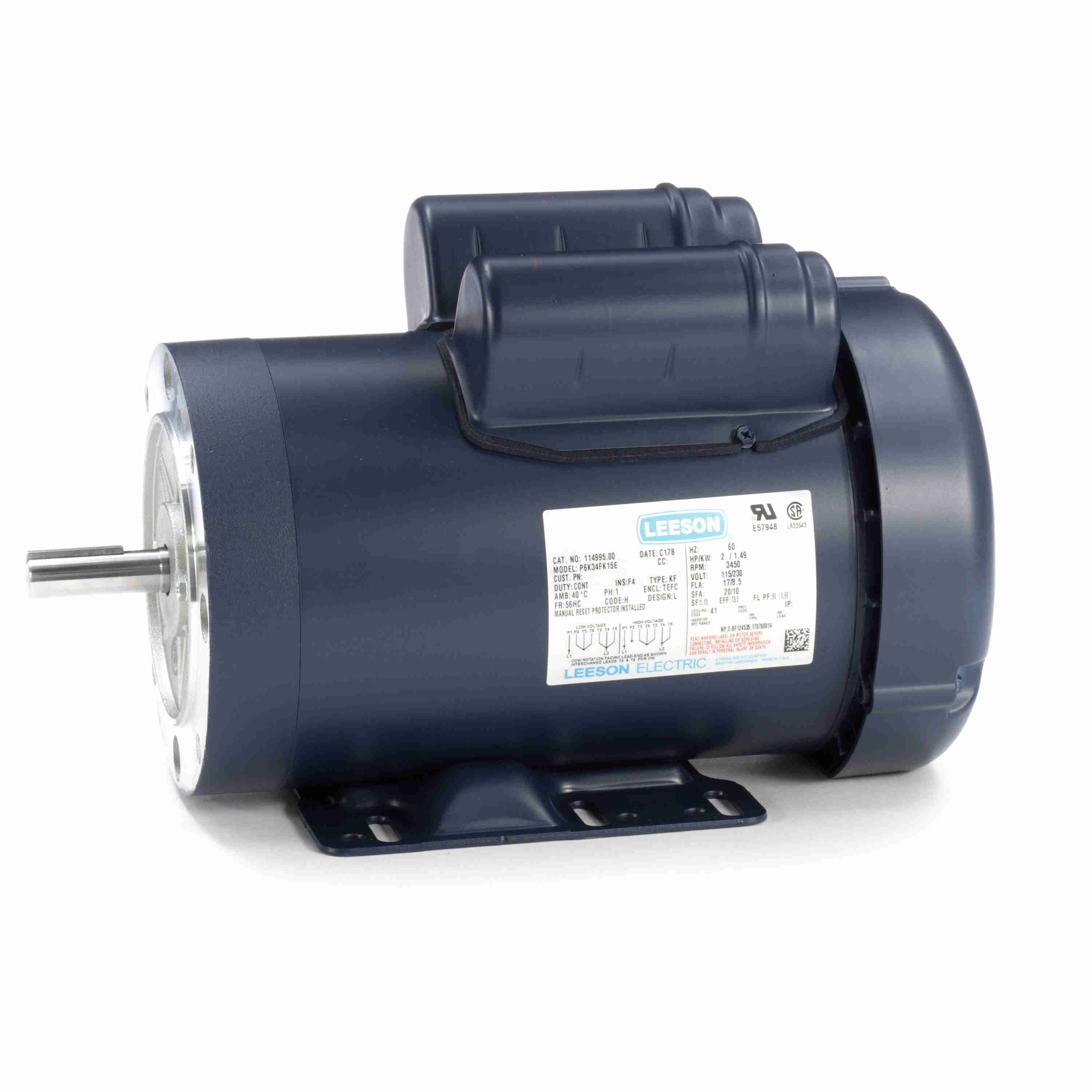

LEESON 114995.00 P6K34FK15E General Purpose Motor, 2 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM
Get it by Monday, Apr 13
5.00% off
€1,336.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Totally Enclosed Motor |
| Ambient Temp. | 104°F |
| Amps | 17/8.5A |
| Base Type | Rigid Base |
| Bearing Protection | Double Shield |
| Bearing Type | Ball |
| Cc Number | Exempt |
| Code | H |
| Design Code | L |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 78.5% |
| Electrical Type | Capacitor Start, Capacitor Run |
| Enclosure Type | Tefc |
| Frame | 56HC |
| Frame Length | 8" |
| Frame Material | Rolled Steel |
| Frame Type | 56HC |
| Frequency | 60 Hz |
| Full Load Amps | 17/8.5A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 2 hp |
| Hz | 60 Hz |
| Includes | Key |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Rated | No |
| Ip Code | IP43 |
| Kva Code | H |
| Kw | 1.5 kW |
| Length | 19 1/2" |
| Length Less Shaft | 11 9/16" |
| Lubrication | Polyrex EM |
| Manufacturers Warranty Length | 18 Months |
| Max. Ambient Temp. | 104°F |
| Max. Rpm | 3450 RPM |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450 RPM |
| Nema Design | L |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 78.5% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 1.49 kW |
| Overall Length | 13 1/2" |
| Packaging | B |
| Part Winding Start Capable | No |
| Phase | 1 |
| Power Factor | 96 |
| Product Datasheet | leeson-114995-00.pdf |
| Removable Base | Permanently Lubricated Bearings |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Standards | Csa, Ul |
| Starting Method | Across The Line |
| Thermal Protection | Manual |
| Type | KF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115-230V |
| Warranty | 1.5 yrs. |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 78.5
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 993500
- Winding: K632149
- GROUP: 3
- Paint: BLUE - LEESON (ENAMEL)
- S. F Amps: 20 / 10
Documentation:
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Full Load Amps | Service Factor | Motor Type | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
131631.00 | 115/208-230V | 1800 RPM | 3 hp | 33.6/16.8A | 1 | Capacitor Start/Run | Rigid Base | 184TC | €1,105.14 | |
 |
131632.00 | 230V | 3600 RPM | 5 hp | 19.8A | 1.15 | Capacitor Start/Run | Rigid Base | 184TC | €1,303.56 | |
 |
131633.00 | 230V | 1800 RPM | 5 hp | 23A | 1 | Capacitor Start/Run | Rigid Base | 184TC | €2,474.27 | |
 |
131857.00 | 230V | 1800 RPM | 3 hp | 12.8A | 1.15 | Capacitor Start/Run | Rigid Base | 184TC | €1,120.42 | |
 |
140678.00 | 230V | 1800 RPM | 10 hp | 40A | 1.15 | Capacitor Start/Run | Rigid Base | 215TC | €2,161.10 | |
 |
140694.00 | 208-230V | 3600 RPM | 7 1/2 hp | 32-36A | 1 | Capacitor Start/Run | Rigid Base | 213TC | €1,935.06 | |
 |
140695.00 | 208-230V | 3600 RPM | 10 hp | 41.5-44A | 1 | Capacitor Start/Run | Rigid Base | 215TC | €2,385.41 |
