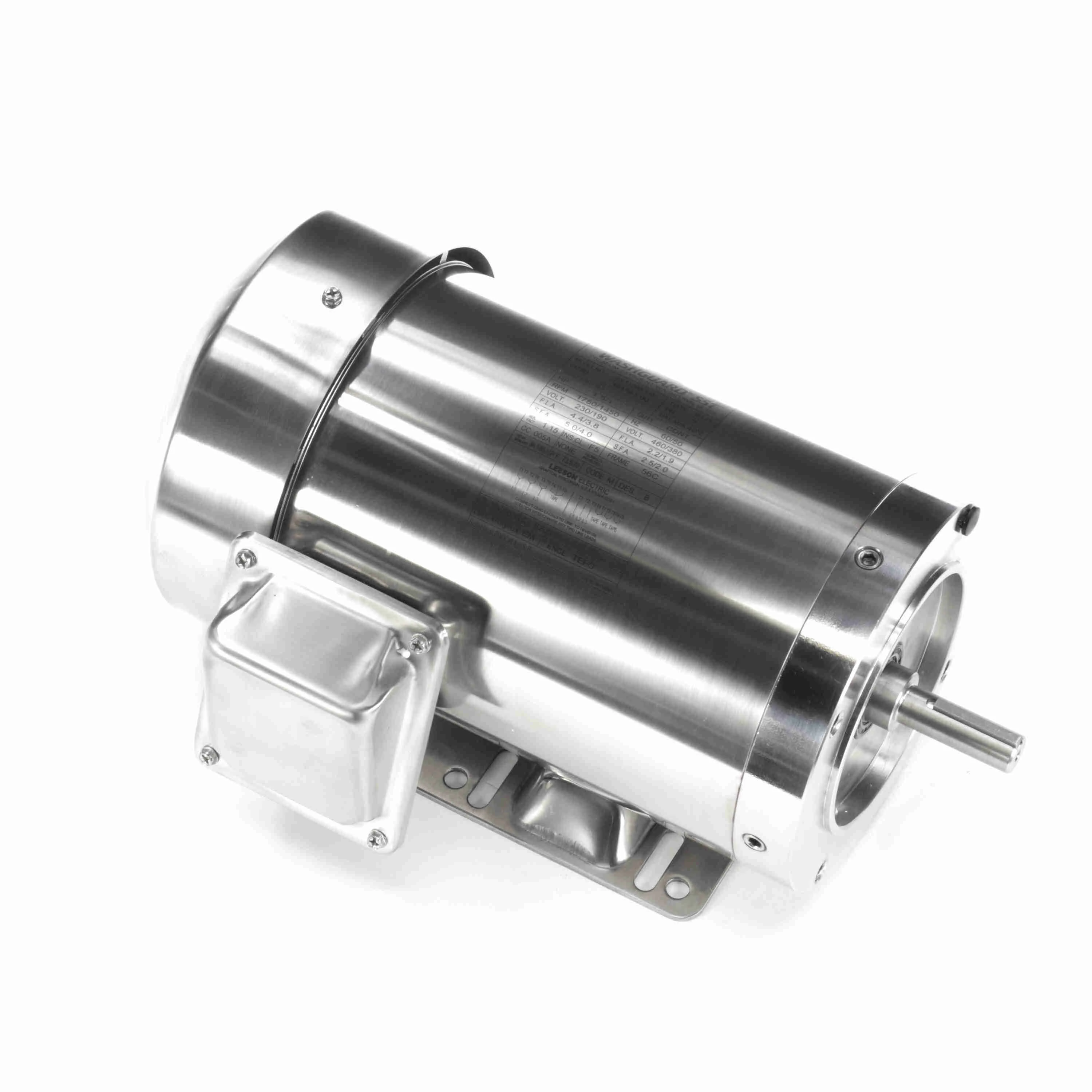

LEESON 191561.00 C6T17WK43A General Purpose Motor, 1.50/1 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Get it by Wednesday, Apr 1
5.00% off
€2,268.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 4.4/2.2A |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Bolt Circle Dia. | 5 7/8" |
| Cc Number | CC005A |
| Conduit Box Location | Exterior |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Efficiency Group | Premium |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | Tefc |
| Finish | Unfinished |
| Frame | 56HC |
| Frame Material | Stainless Steel |
| Frame Type | 56HC |
| Frequency | 50/60 Hz |
| Frequency | 60 Hz |
| Full Load Amps | 4.4-4.8/2.2A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Height | 9.77" |
| Hp | 1 1/2 hp |
| Hz | 50/60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | M |
| Kw | 1.1 kW |
| Length | 16.77" |
| Length Less Shaft | 11 7/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1750 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1750 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 13 3/4" |
| Phase | 3 |
| Power Factor | 73.5 |
| Product Datasheet | leeson-191561-00.pdf |
| Product Type | Washdown Motor |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.06" |
| Shaft Material | Stainless Steel |
| Shaft Type | NEMA 56 |
| Standards | Bissc Approved, Ce, Csa Certified, Ul Recognized |
| Starting Method | Line Or Inverter |
| Thermal Protection | No Protection |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Width | 11.78" |
Shipping Info:
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 24.82 |
| Ship length (cm) | 42.6 |
| Ship width (cm) | 29.92 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Finish | Frame | Full Load Amps | Motor Mounting Type | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
194000.00 | 230/460V | 3 hp | 3520/2900 RPM | Paint Free | 182TC | 6.9/3.45A | - | 40°C | €2,796.92 | |
 |
194001.00 | 230/460V | 3 hp | 1745 RPM | Unfinished | 182TC | 7.2/3.6A | Rigid Base | 104°F | €2,845.23 | |
 |
194002.00 | 230/460V | 5 hp | 3520 RPM | Unfinished | 184TC | 11/5.5A | Rigid Base | 104°F | €4,759.07 | |
 |
194003.00 | 230/460V | 5 hp | 1745 RPM | Unfinished | 184TC | 12.4/6.2A | Rigid Base | 104°F | €4,772.87 | |
 |
194004.00 | 230/460V | 7 1/2 hp | 3520 RPM | Unfinished | 213TC | 17.4/8.7A | Rigid Base | 104°F | €4,421.41 | |
 |
194005.00 | 230/460V | 7 1/2 hp | 1745 RPM | Unfinished | 213TC | 19.4/9.7A | Rigid Base | 104°F | €4,869.16 | |
 |
194006.00 | 230/460V | 10 hp | 3520 RPM | Unfinished | 215TC | 22.8/11.4A | Rigid Base | 104°F | €7,301.79 |
