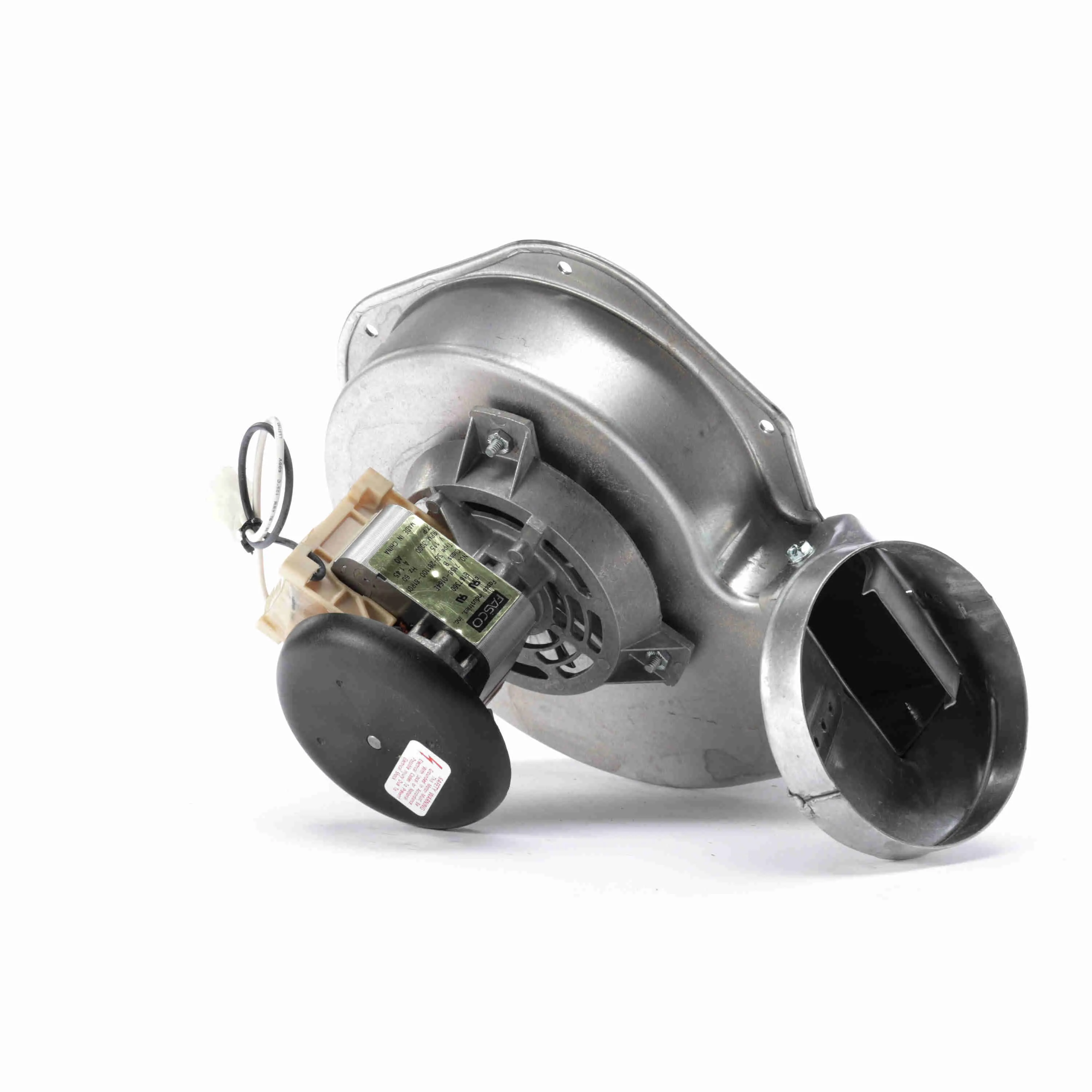

FASCO A198 Round Outlet Shaded Pole OEM Replacement Draft Inducer Blower, 115 Volt
Item: CJ2XVNModel: A198Cross Ref: 46MV94
7 In Stock
Ships within 2 days via
10.00% off
€261.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Draft Inducer Blower |
| Airflow @ 0.000 In Sp | 37 CFM |
| Airflow @ 0.100 In Sp | 36 CFM |
| Airflow @ 0.250 In Sp | 33 CFM |
| Ambient Temp. | 40°C |
| Ambient Temperature | 40°C |
| Amps | 1.45A |
| Assembly | Assembled |
| Bearing Type | Ball |
| Blower Conduit Box | No |
| Blower Outlet Flange | No |
| Blower Outlet Shape | Round |
| Blower Wheel Diameter | 4 3/4" |
| Blower Wheel Width | 1 5/16" |
| Csa | Yes |
| Discharge Position | All |
| Drive Package With Motor Included? | Yes |
| Drive Type | Direct Drive |
| Features | C-Frame, Open Air Over |
| Flange Size | Not Applicable |
| For Air Type | Clean Air |
| Frequency | 60 Hz |
| Housing Color | Gray |
| Housing Finish | Enamel |
| Housing Material | Steel |
| Housing Material Finish | Enamel |
| Includes Drive Package | Yes |
| Includes Motor | Yes |
| Inlet Dia. | 1 1/4" |
| Insulation Class | Class B |
| Lead Length | 5" |
| Maximum Ambient Temperature | 104°F |
| Maximum Fan Speed | 3250 RPM |
| Maximum Inlet Air Temperature | 400°F |
| Maximum Static Pressure | 1.875 in. wc |
| Minimum Fan Speed | 3100 RPM |
| Motor Enclosure | Open |
| Motor Enclosure Design | Open |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Speed | 3000 RPM |
| Motor Type | Shaded Pole |
| Mounting Orientation | Horizontal |
| Mounting Position | Shaft Horizontal |
| Nameplate Voltage | 115V AC |
| No. Of Speeds | 1 |
| Number Of Discharge Positions | 4 |
| Number Of Inlets | 1 |
| Number Of Speeds | 1 |
| Oem Replacement | No |
| Outlet Dia. | 4" |
| Outlet Height | Not Applicable |
| Outlet Shape | Round |
| Outlet Type | Non Flanged |
| Outlet Width | Not Applicable |
| Overall Depth | 6" |
| Overall Height | 8 3/4" |
| Overall Width | 7 3/4" |
| Phase | 1 |
| Product Datasheet | fasco-a198.pdf |
| Replacement For | 7058-0259, D342077P01 |
| Rotation | CW |
| Rpm | 3250 RPM |
| Speed | 3250 RPM |
| Thermal Overload Protection | Yes |
| Ul | Yes |
| Voltage | 115V |
| Wheel Dia. | 4 5/8" |
| Wheel Material | Steel |
| Wheel Type | Forward Curved |
| Wheel Width | 1 1/4" |
| With Flange | No |
Shipping Info:
| Ship weight (kg) | 2.77 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 19.69 |
| Country of Origin | MX |
