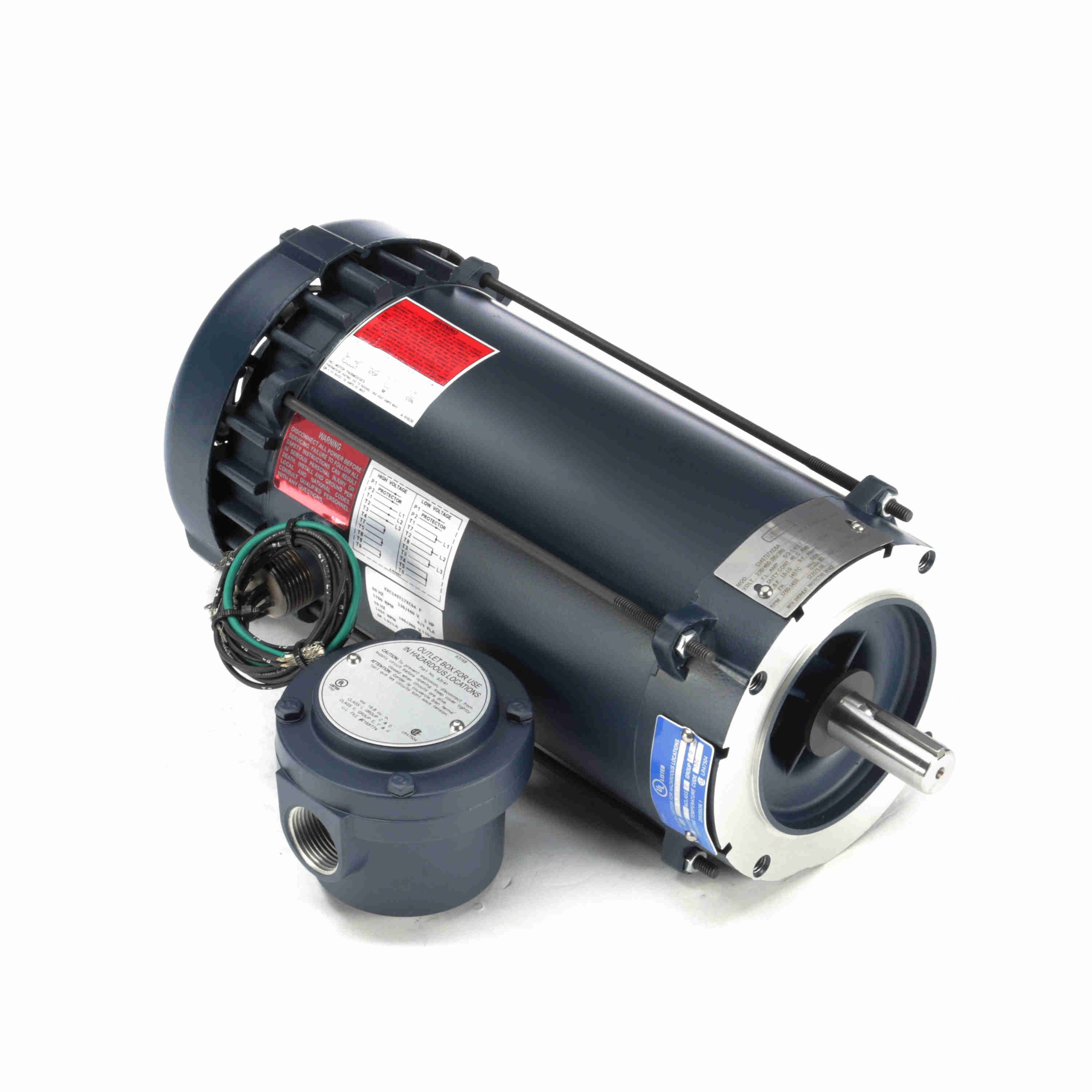

LEESON 122175.00 145T17XC6A Explosion Proof Motor, 2/1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Get it by Tuesday, May 19
€1,446.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Amps | 6/3A |
| Code | N |
| Design | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | EPFC |
| Frame | 145TC |
| Frame Length | 9.31" |
| Frame Material | Rolled Steel |
| Frame Type | 145TC |
| Frequency | 60 Hz |
| Full Load Amps | 3A |
| Hazardous Location | Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C |
| Hazardous Location Class | EXP Proof CL I GR C&D CL II GR F&G T3C |
| Height | 12.62" |
| Hp | 2 hp |
| Insulation Class | Class B |
| Ip Code | IP54 |
| Kva Code | No |
| Kw | 1.5 kW |
| Length | 19.65" |
| Lubrication | Polyrex EM |
| Max. Rpm | 1760 RPM |
| Motor Mounting Type | Round |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Reversible |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | F |
| Phase | 3 |
| Power Factor | 71 |
| Product Datasheet | leeson-122175-00.pdf |
| Resistance Main | 6.58 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Starting Method | Line Or Inverter |
| Thermal Protection | Thermostat |
| Type | TX |
| Voltage | 230/460V |
| Width | 12.31" |
Shipping Info:
| Ship weight (kg) | 24.39 |
| Ship height (cm) | 32.05 |
| Ship length (cm) | 49.91 |
| Ship width (cm) | 31.27 |
| Country of Origin | MX |
Product Details:
- Supersedes Leeson - 122023.00 / C145T17XC6AA
- Eff 75%: 86.5
- Bearing OPE: 6203
- CC Number: CC005A
- Bearing PE: 6205
- Nameplate: A-71625G
- Winding: ZT4255
- GROUP: 3
- Paint: BLUE - LEESON (ENAMEL)
- Eff 100%: 86.5 / 90
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Frame | Nameplate Rpm | Phase | Motor Application | Motor Mounting Type | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056H17E5301 | 230/460V AC | 1/4 hp | 56C | 1725 RPM | 3 | Crane | Rigid Base | Thermostat | €919.47 | |
 |
056H17E5302 | 230/460V AC | 1/3 hp | 56C | 1725 RPM | 3 | Crane | Rigid Base | Thermostat | €1,078.24 | |
 |
056H17E5303 | 230/460V AC | 1/2 hp | 56C | 1725 RPM | 3 | Crane | Rigid Base | Thermostat | €1,371.25 | |
 |
056H17E5304 | 230/460V AC | 3/4 hp | 56C | 1725 RPM | 3 | Crane | Rigid Base | Thermostat | €1,287.06 | |
 |
056H17E5305 | 230/460V AC | 1 hp | 56C | 1725 RPM | 3 | Crane | Rigid Base | Thermostat | €1,409.55 | |
 |
118015.00 | 90V | 33/100 hp | 56C | 1750 RPM | - | Hazardous Location | Face, Base | Auto | €5,029.70 | |
 |
118016.00 | 90V | 1/2 hp | 56C | 1750 RPM | - | Hazardous Location | Face, Base | Auto | €4,540.55 |
